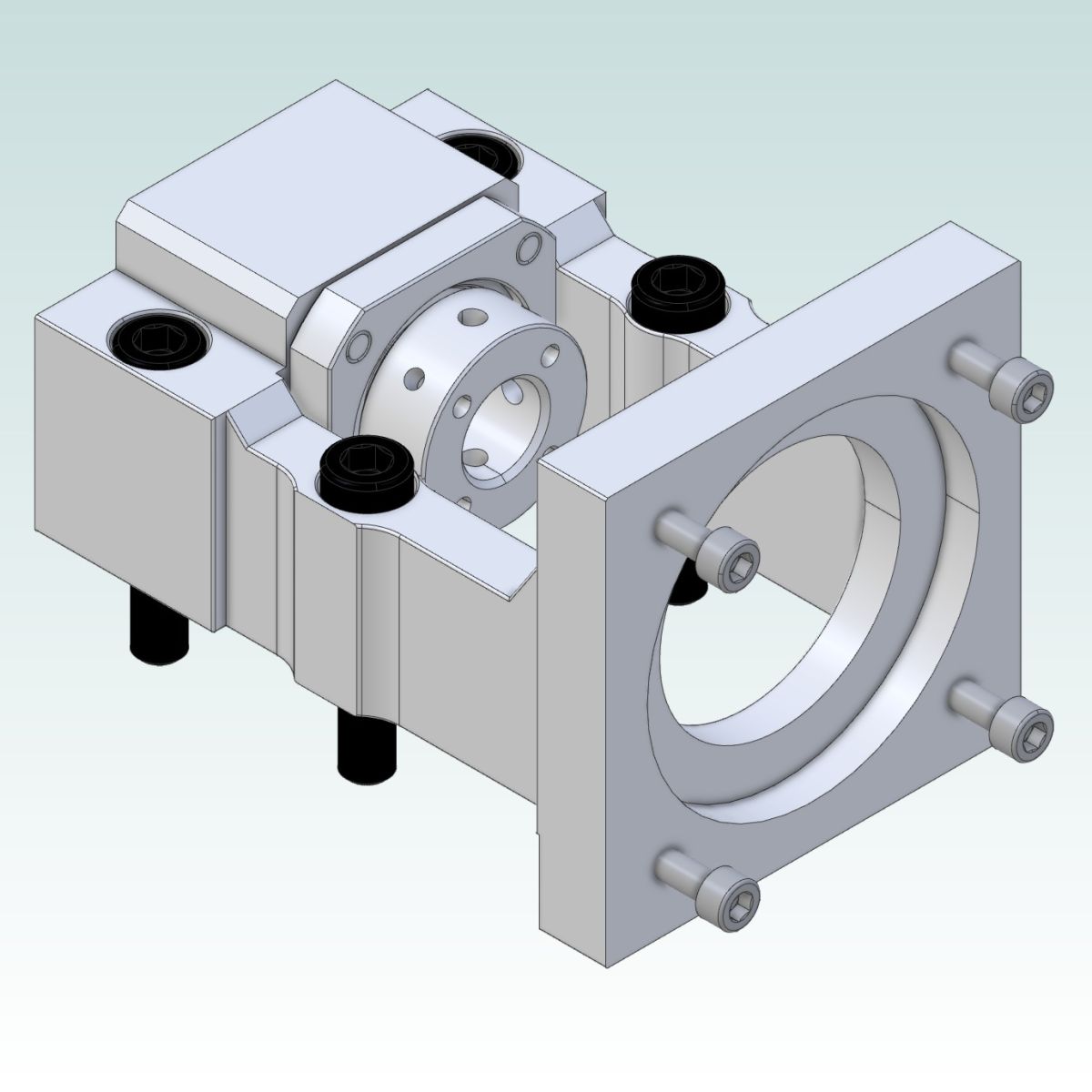

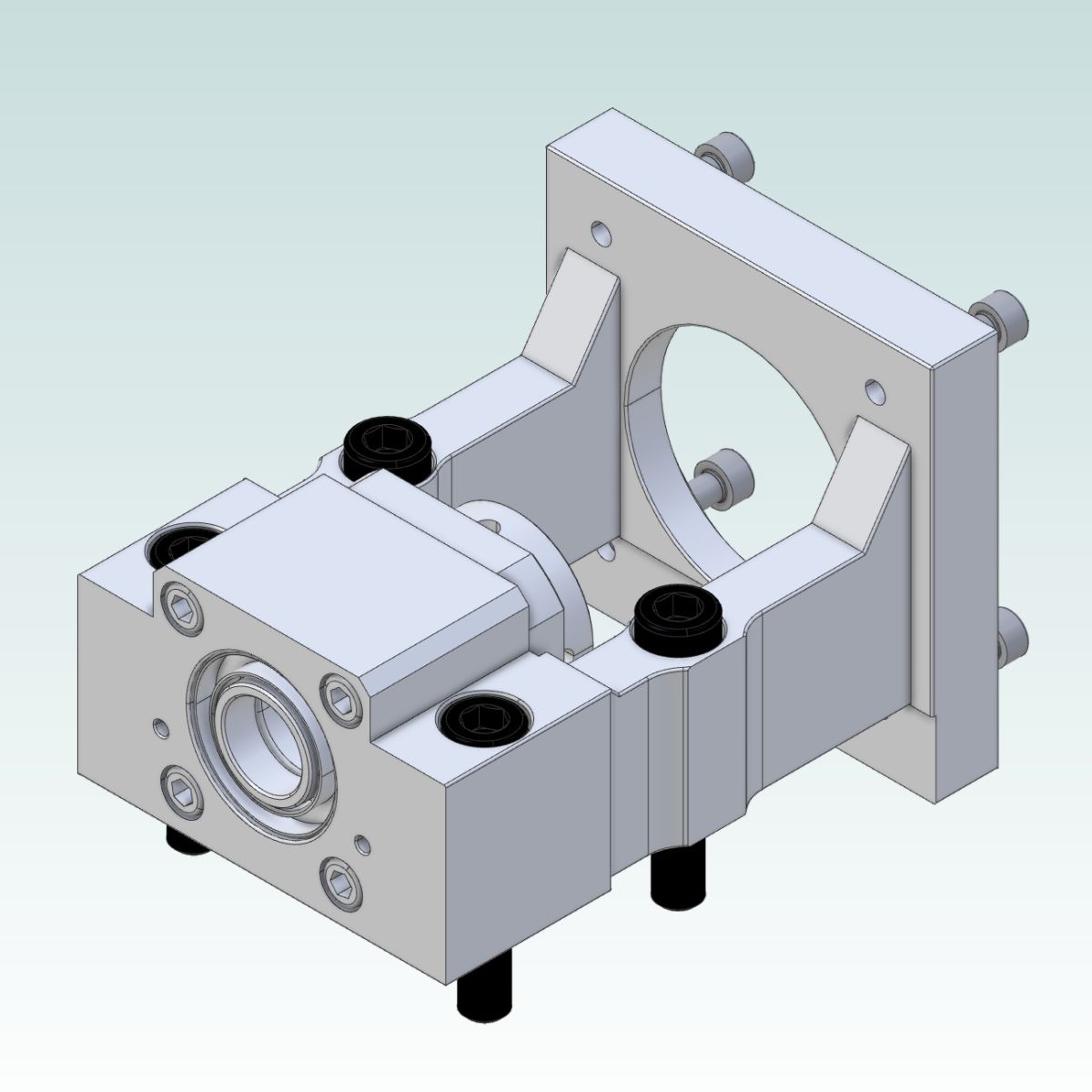

Motor Bracket made from steel. It has a 100x100 Servo flange that is compatible with most 100x100 Flange ServoMotors, that have a 80mm center ring and 100mm PCD for m6 bolts. The bracket has datum surface on the bottom, that also has two 6mm dowel pin holes. These can be used to get the perfect alignment when placing back on a machine frame. Also the alignment between bearing and flange is within 0,02mm since the machining is done in one operation. When building a CNC machine or other special machine, this is an interesting part to have, since it saves a lot of time, that is normally spent on making a bracket. This bearingblock is compatible with the AF20 floating bearing block, (same height from datum surface). Most commonly the bearing block is used in combination with 25mm ballscrews.

Component features:

• Compatible with 100x100mm  Flange size servomotors with an 80mm center ring, and 100mm PCD m6
• This 80mm center ring and 100mm PCD is also common an 090 gearboxes (APEXdyna, and other taiwanese brands)
• Steel Housing
• High Quality Product Made in TAIWAN
• 4 x M6x25 DIN912 bolts included for mounting the servomotor (or 090 gearbox)
• 4 x M10x55 DIN912 12.9 bolts included for mounting the machine frame or casting
• FK Fixed Bearing integrated in the housing
• Bearing Brand : NSK
• Bearing Reference: 20TAC 47C
• Basic dynamic load rating : 23000 Ca(N)
• Axial direction Load limit : 26600 (N)
• Stiffness: 630 (newton per micro meter)

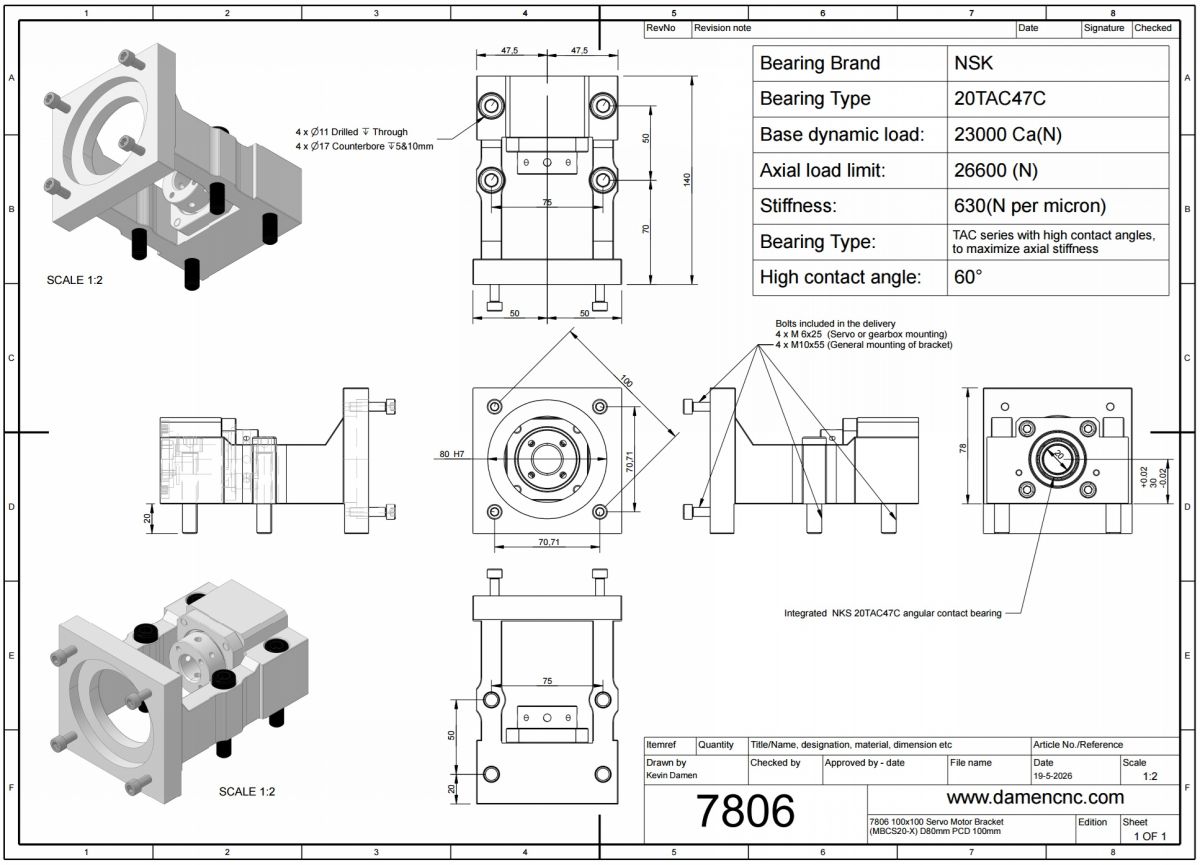

• TAC (Series Type): This indicates a Thrust Angular Contact ball bearing. These bearings are specifically designed with a high contact angle 60° to maximize axial rigidity and handle immense thrust loads while maintaining low driving torque.
• Compatible with AF20  (floating support bearing)
• Compatible with AK20 (fixed support bearing)
• Compatible with DamenCNC 40mm diameter shaft couplers
• Compatible with Siemens ServoMotors 1FT6044 series (96x96mm flange size)
• Compatible with Siemens ServoMotors 1FK7042-5 series (96x96mm flange size)
• Compatible with FANUC ServoMotors B2/4000is series (90x90mm flange size)
• Compatible with FANUC ServoMotors B4/4000is series (90x90mm flange size)
