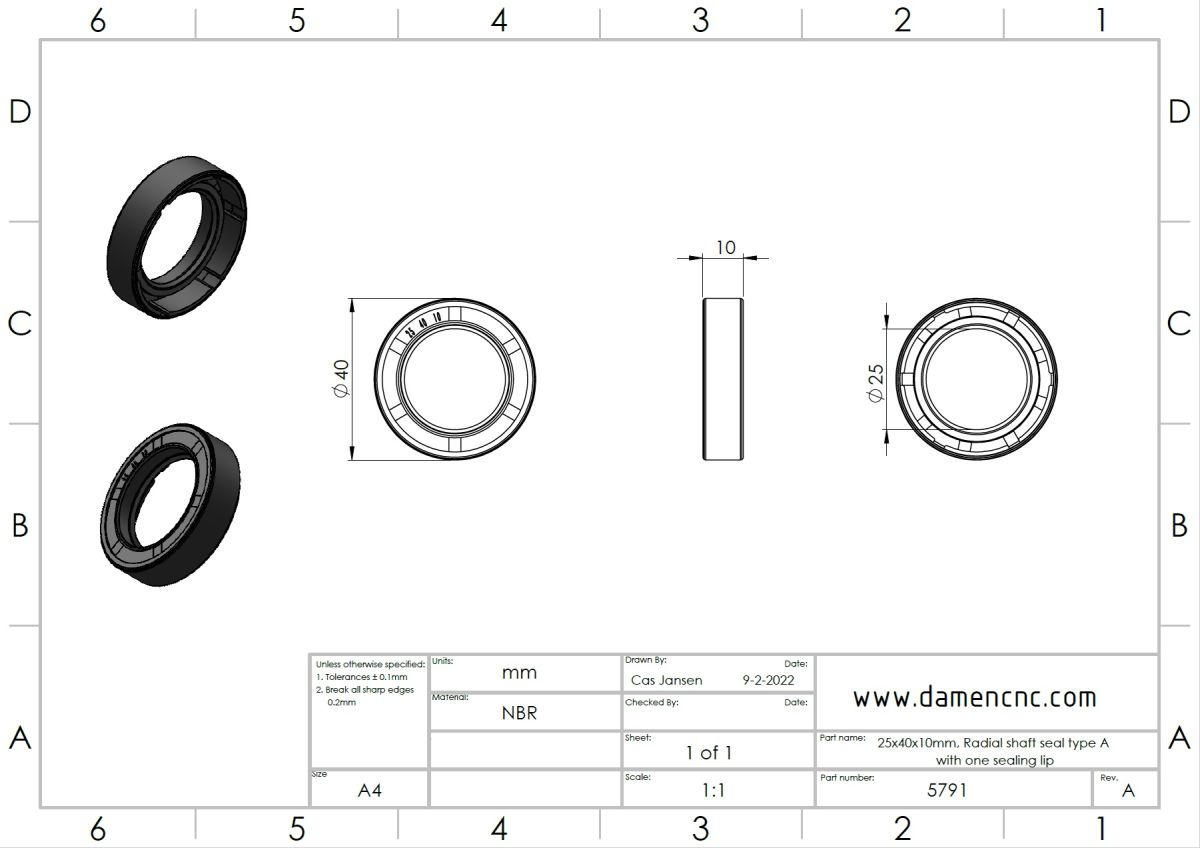

25x40x10mm, Radial shaft seal type A with one sealing lip

Article number 5791
In Stock In Stock
5,49 Excluding VAT Price per piece
Description
Attachments

Radial shaft seals are commonly used as an interface between a rotating shaft and the fixed world. It can be to prevent oil from exiting for example a gearbox. But often its also used other way around, to prevent dust/particles from getting into an electric motor for example.

Component features:

  • Material: Elastomer: NBR. Stiffening ring and tension spring from steel.
  • According to DIN 3760 Design A respectively
  • ISO 6194-1 figure 1 and in many additional sizes.
  • Most common design, with one seal lip.
  • For oil- and grease-lubricated applications.
  • For high speed, sliding speed up to 14m/s.
  • Recommended tolerances: Housing bore H8, shaft-Ø h11, Shaft roughness Ra 0.2 to 0.8 µm.
  • Temperatur range: -40°C to +100°C (for short time up to +120°C).

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5791-1_25x40x10mm,_Radial_shaft_seal_type_A_with_one_sealing_lip_STEP214.STEP 5791-1 25x40x10mm, Radial shaft seal type A with one sealing lip STEP214
5791-2_25x40x10mm,_Radial_shaft_seal_type_A_with_one_sealing_lip_STEP242.stp 5791-2 25x40x10mm, Radial shaft seal type A with one sealing lip STEP242
5791-3_25x40x10mm,_Radial_shaft_seal_type_A_with_one_sealing_lip_2D_Dimensions.pdf 5791-3 25x40x10mm, Radial shaft seal type A with one sealing lip 2D Dimensions
