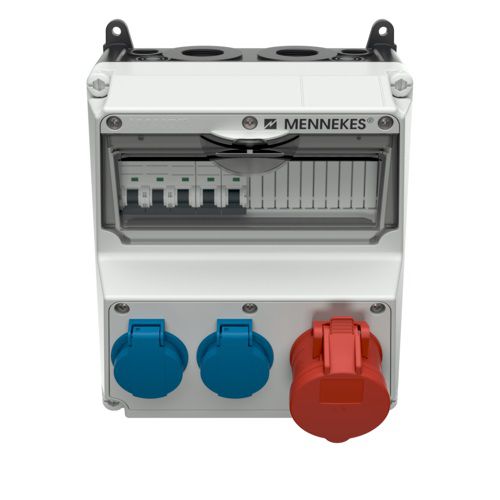

AMAXX® combination unit 920060 (2x230V 16A, 1x380V 16A)

Article number 5635
Limited stock Limited stock
EAN-number 4015394228981
409,99 Excluding VAT Price per piece
Compatible Products

With AMAXX® you combine smartly and thus save valuable assembly time. Only one connection cable, fewer drill holes, fewer cable and pipe clamps and only one housing, the outer mounting of which allows one-person installation. The hinged, side-opening housing cover as well as the pull-out DIN rail and the large connection space make connection work easier. AMAXX® is pre-wired ready for connection and tested for electrical safety and quality in accordance with IEC 61439.

Component features:

  • CEE 16A, 5p, 400V: 1 piece
  • SCHUKO 230VAC: 2 pieces
  • Protection: 1 circuit breaker 16 A, 3 p, C
  • Protection: 2 circuit breakers 16 A, 1p, C
  • For protection maximum: 63A
  • InA: 32A
  • RDF: 1
  • For 1 connection cable up to 5x10mm2
  • Degree of protection: IP 44
  • Housing Material: plastic
  • Weight: 2740 g
  • Height: 260mm
  • Width: 225mm
  • Mennekes part number: 920060


Here you can find all attachments that are linked to the product. Click on the icon to download.

5635-1_AMAXX®_combination_unit_920060_STEP214.stp 5635-1 AMAXX® combination unit 920060 STEP214
5635-2_AMAXX®_combination_unit_920060_STEP242.stp 5635-2 AMAXX® combination unit 920060 STEP242
5635-3_AMAXX_920060_en_GB_Datasheet.pdf 5635-3 AMAXX 920060_en_GB Datasheet
5635-4_AMAXX_Installation_Instructions.pdf 5635-4 AMAXX Installation Instructions
5635-5_AMAXX_int_Brochure.pdf 5635-5 AMAXX_int Brochure
