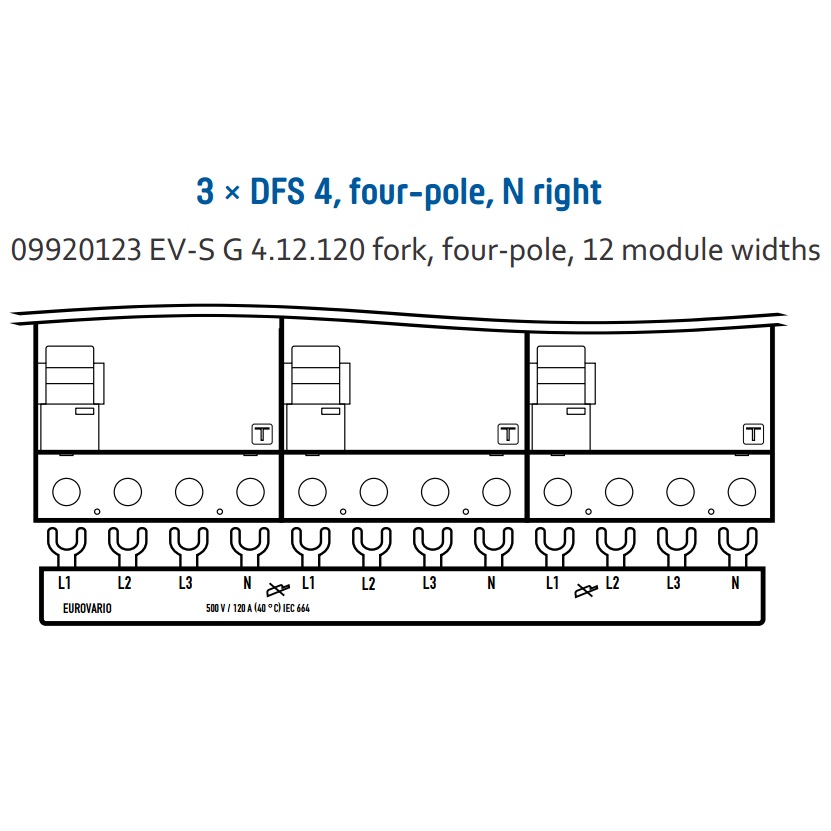

Busbar ((L1, L2, L3, N) x 3) L=212mm, 3 phase, 3 devices, 63A

Busbar, fork, 4-pole, 12 MW (module width), 63 A ((L1, L2, L3, N) x 3)

Function:

Wiring materials are components for the wiring of residual current circuit-breakers, residual current operated and miniature circuitbreakers and D0 switch-disconnectors in industrial, commercial and privately used electrical distribution units. They considerably reduce the installation work and are available in a wide range of versions in multiple-pole design with various conductor cross-sections. The busbars are cut to length and designed for the supply-side connection of residual current circuit-breakers (RCCBs) DFS 2 or DFS 4, miniature circuit-breakers (MCBs) and residual current operated circuit-breakers with integral overcurrent protection (RCBOs) on the bottom of the devices. The bars with furcated cable lug are available in a wide range of variants in one to four-pole design (some also with space for auxiliary switches) and provide time-saving and user-friendly processing options. Unused connections can be covered by the EVS BS protective cover.

Component features:

• Doepke part number: 09920123
• Doepke par name: EV-S G 4.12.120
• Length 212 mm, 12 MW (module width)
• Suitable for 3 devices
• Large cross-section (10 mm²), high rated current of 63 A
• Can be used in connection with residual current circuit-breakers, miniature circuit-breakers and residual current operated circuit-breakers
  with integral overcurrent protection , wide range of variants , saves a lot of time during wiring

• Mounting:The rails are inserted in the upper or lower terminals of the devices to be connected.
• Applications Busbars from this series are used in connection with RCCBs, MCBs and RCBOs in power supplies to residential and purpose-built buildings
  as well as to industrial facilities.
• Notes The EV-S G ANL (N left) or EV-S G ANR (N right) connection bars must be used when supplying power to miniature circuit-breakers from above in combination with Doepke residual current circuit-breakers.


Accessories:

• Input terminals AS
• Feed-in terminal blocks ES
• Protective cover caps
