Crimping pliers - CRIMPFOX DUO 16S - 1202877

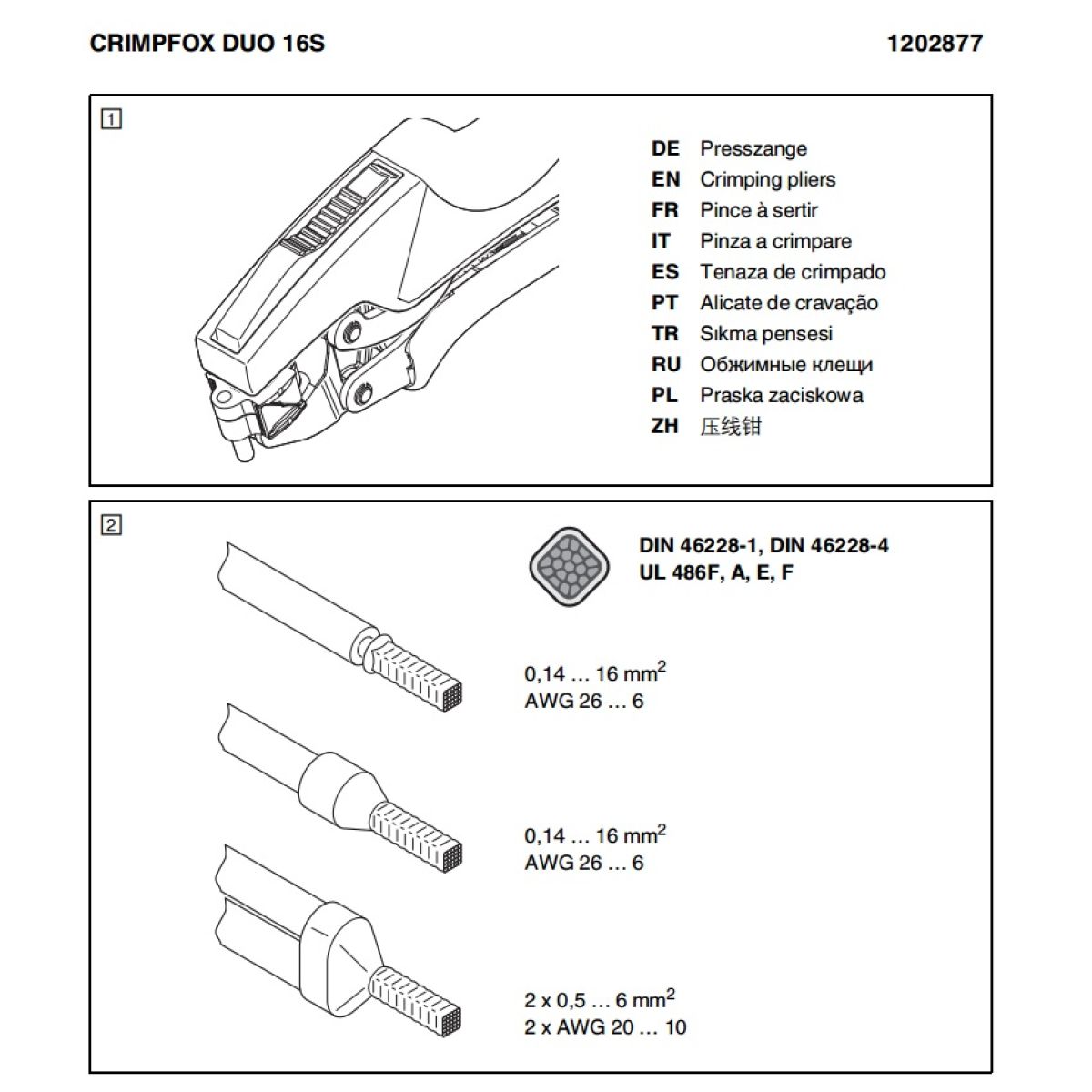

Crimping pliers, contact type: insulated and uninsulated ferrules, standards/regulations: DIN 46228-1, DIN 46228-4, UL 486F, Form A, E, F, cross-section, minimum: 0.14 mm2, cross-section, maximum: 16 mm2, for TWIN ferrules up to 2 mm2 x 6 mm2, automatic cross-section adjustment, rotating dies, lateral and front entry, crimping: square

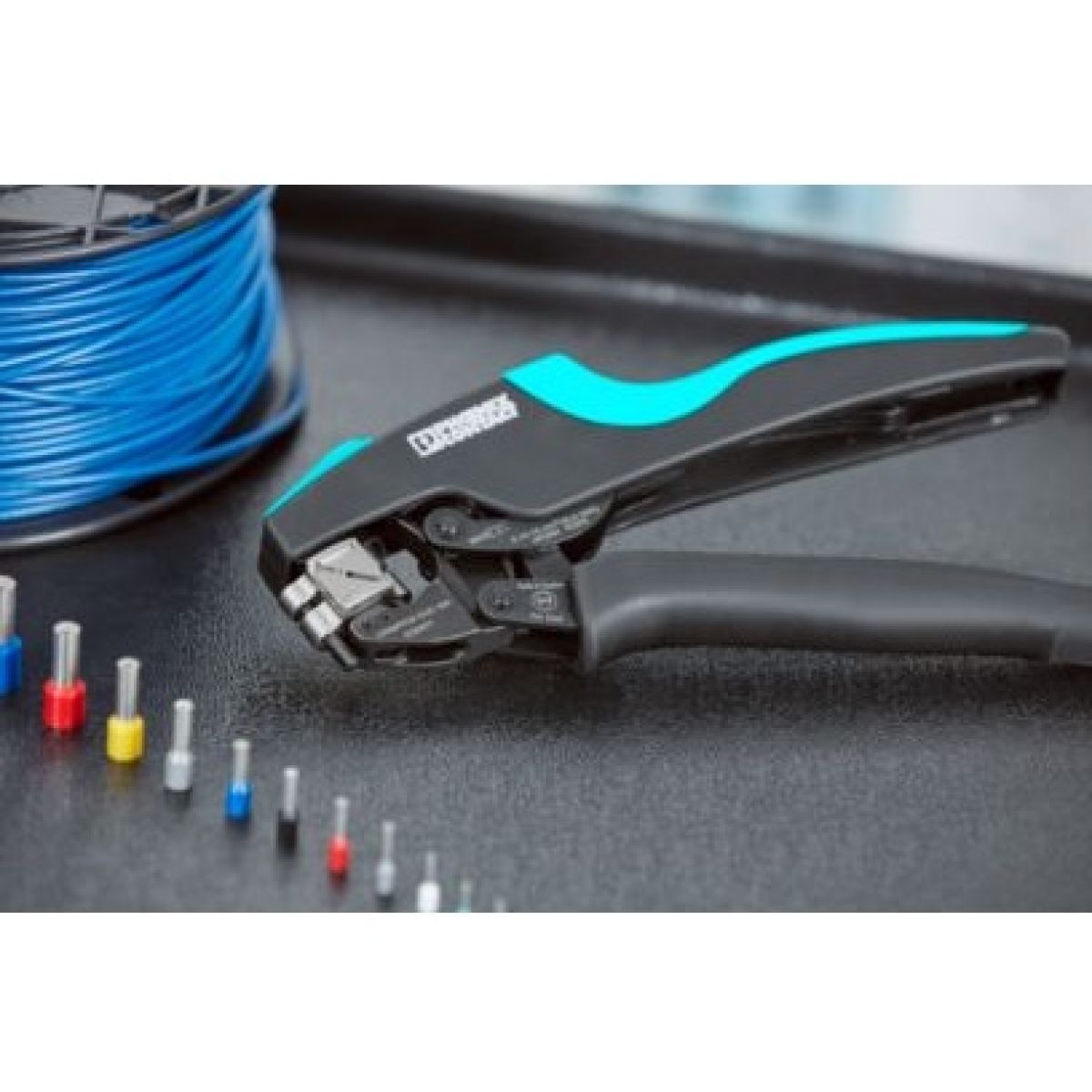

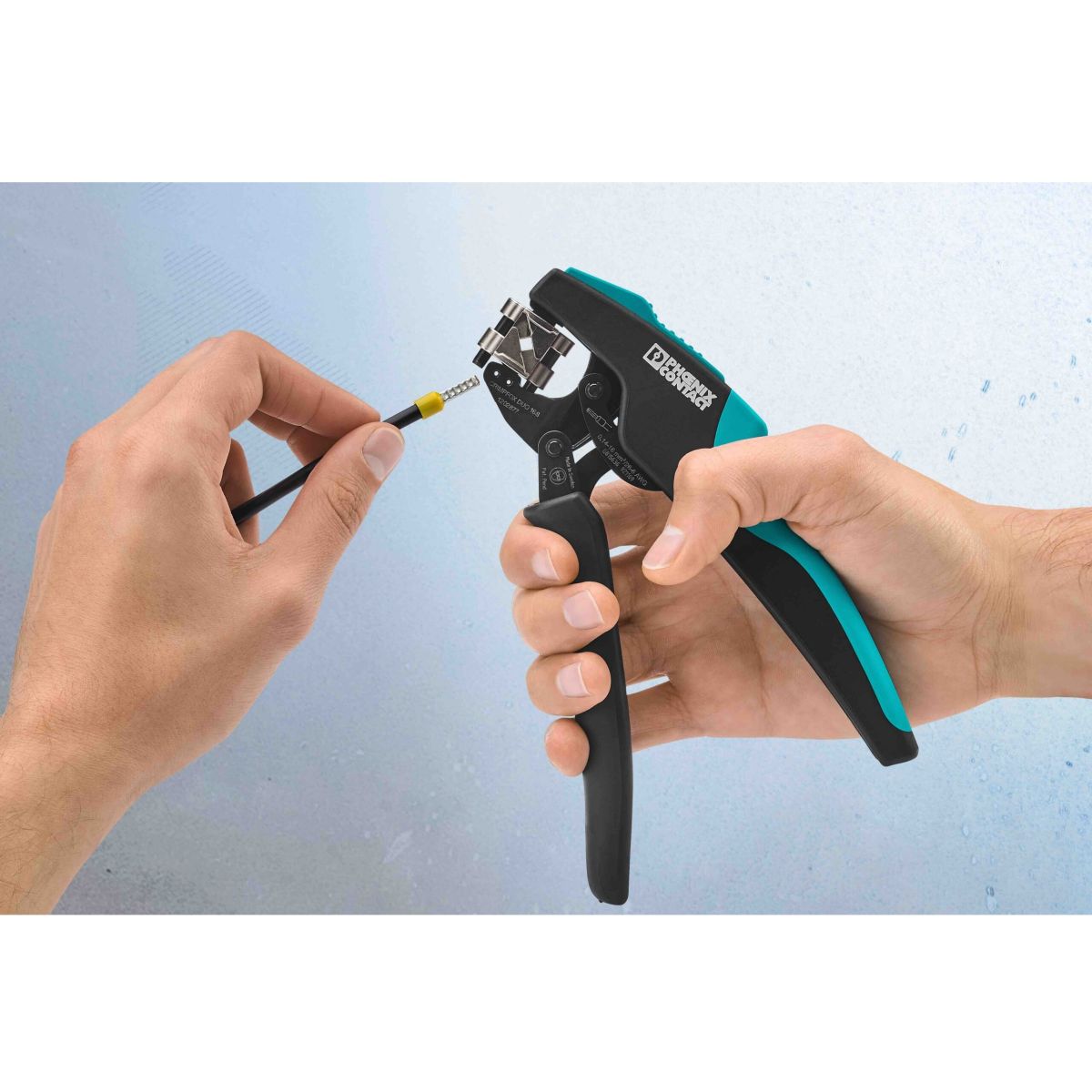

CRIMPFOX DUO 16S, the lightest and most compact crimp tool of its type, has a rotatable die set so that the ferrule can be inserted into the front or side of the tool to suit cabinet and bench working respectively. The tool is selfadjusting with interleaving dies to produce a square shaped crimp profile on wire ferrules
0.14–16.0 mm²/AWG 26–6 (produced to DIN 46228-parts 1 and 4 or UL 486F).

Component features:

• Rotatable die set at the push of a button
• Self-adjusting die nest for 0.14–16.0 mm²/AWG 26–6 ferrules
• Square shaped crimp profile
• Compact design for easy access into constricted spaces
• Ergonomic handles and low handle force for low effort crimping
• Lightweight and well balanced
• Small handle opening angle
• Ratchet control (with emergency release) to ensure completion of crimp cycle
• Non-slip grip pad for applying pressure against a surface
• Hole in handle allows attachment of safety strap
• Each tool has a unique serial number for traceability
• Phoenix Contact Part Name: CRIMPFOX DUO 16S - Crimping pliers 1202877
• Phoenix Contact Part Number: 1202877
