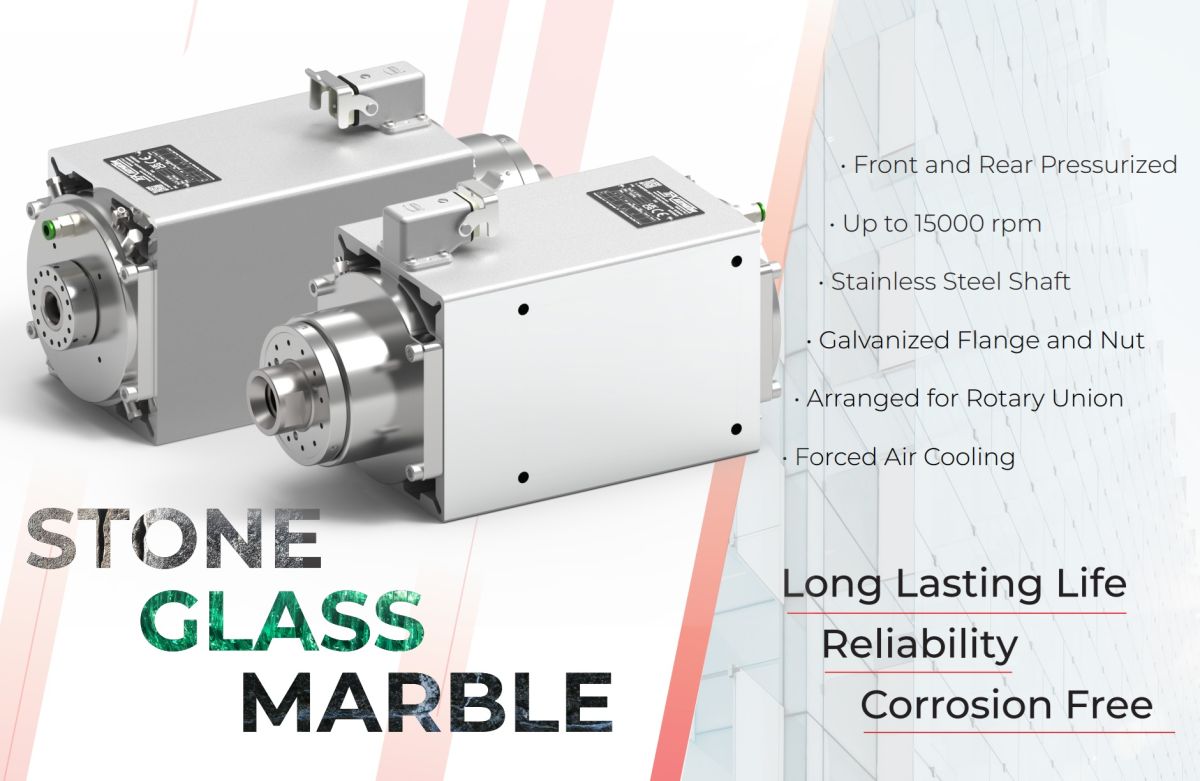

The Electrospindel C6067 is a size larger and more powerful than the Electrospindel C5160. These motors are widely used on professional stone and glass portal milling machines and, thanks to the double angular contact bearings in the spindle nose, are ideal for both milling and drilling in glass and natural stone with small tools. The motor has a 1/2" gas connection, which is the industry standard for working with diamond tools. The motor also has a fully hollow main shaft, allowing you to transport water/coolant through the shaft to the cuttingtool. The motor has an M16x1.5 (LH) connection on the rear of the main shaft, where you can install your own rotary coupling. We also offer optional rotary couplings. You can find these in the compatible products tab. It is important that you only rotate clockwise with this milling/grinding motor; otherwise, the rotary coupling may come loose.

A variable frequency drive (VFD) allows the speed to be controlled between 2,000 and 15,000 rpm. The motor reaches its maximum power at 6,000 rpm, its base speed. From 6,000 rpm to 15,000 rpm, the motor has a power output of 2.5 kW, and the torque decreases.

Component features:

• Teknomotor part number: COM60670097 (COM60670091 is a special version with other mounting holes)
• Designed for both radial and axial loads
• Motor type: Manual tool changer (1/2 G threaded connection)
• Power: 2.5kW
• Speed range: 2000 - 15000 rpm
• Bearings: DB - Double angular contact bearing in the spindle nose
• Tool holder: 1/2 GAS thread (standard on many diamond tools with internal cooling)
• Through-spindle cooling: M16x1.5 (LH) Motor with a hollow shaft, allowing through-the-tool cooling
• Housing: Extruded aluminum
• Stator: Three-phase induction motor, insulation class F
• Rotor: Cage armature balanced according to ISO 1940 standard, G2.5 @ 24,000 rpm
• Cooling: Pneumatic cooling (please equip this with 2 bar overpressure)
• Protection rating: IP 64
• NOTE: This motor may only be operated CW (clockwise when viewed from the rear).
