Fixture Clamp M10 , Eccentric CAM mechanism (50210)

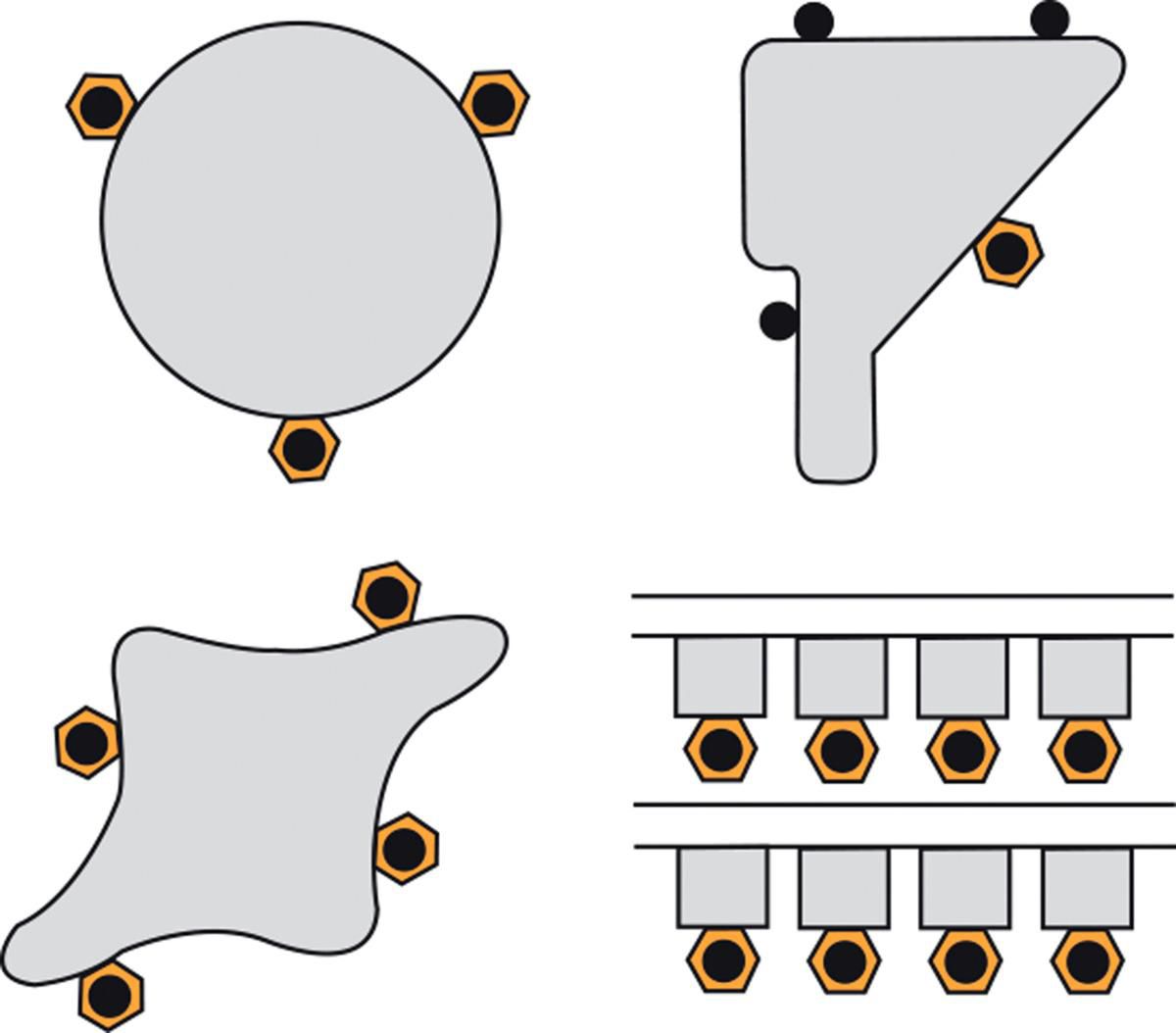

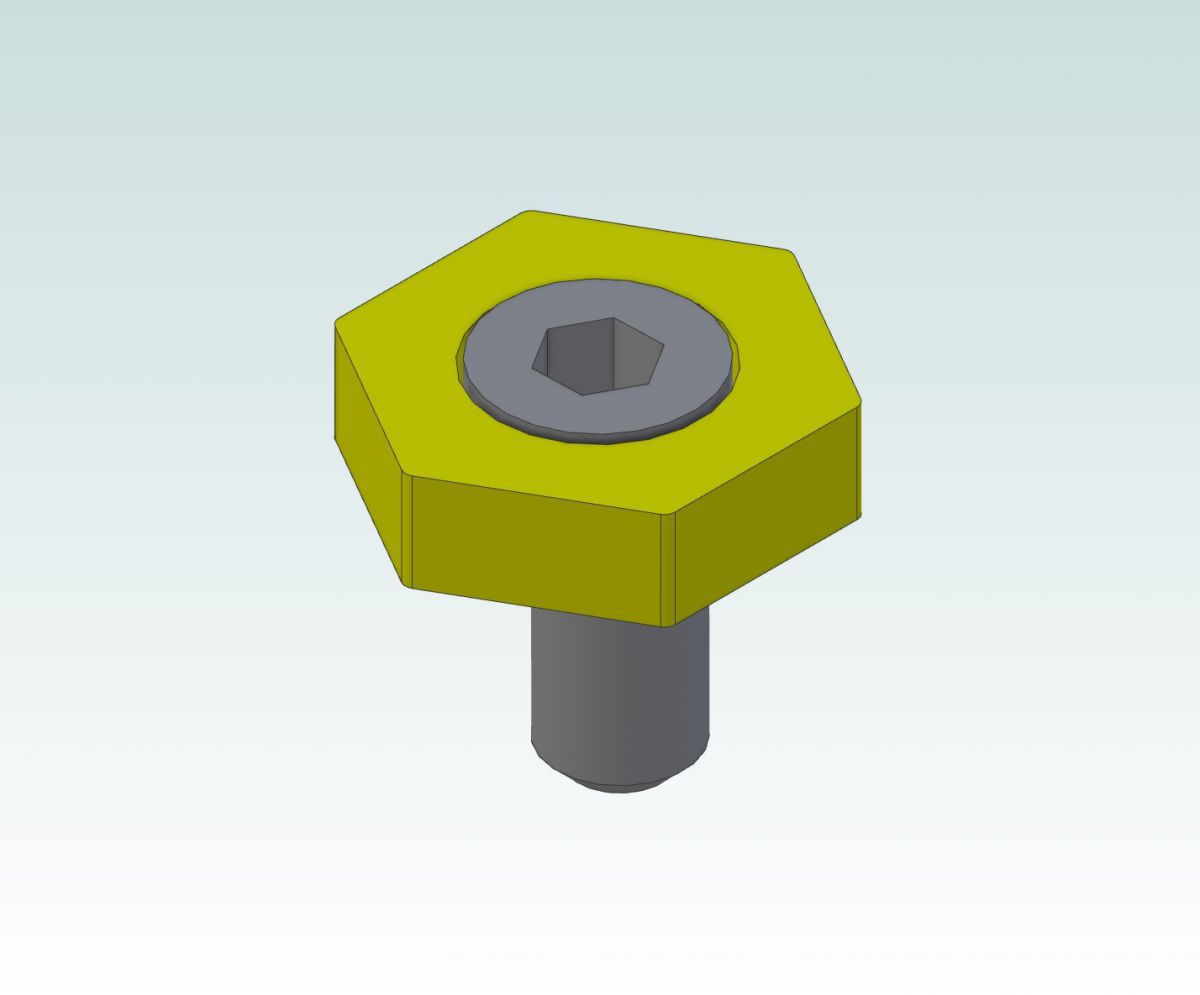

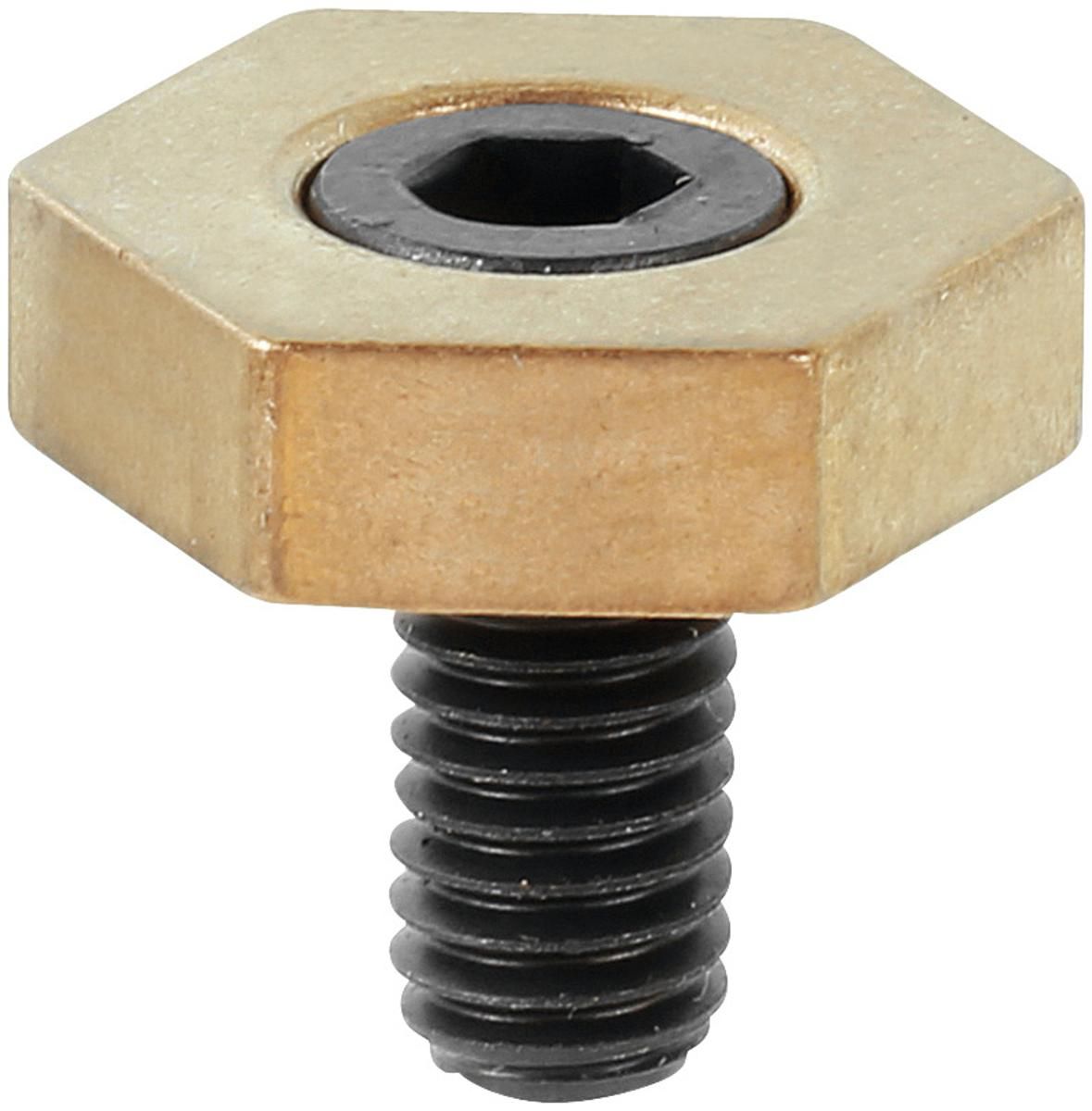

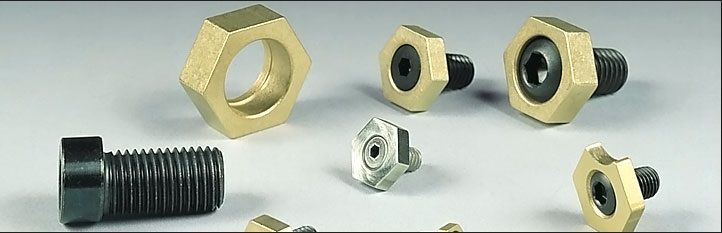

The Cam Action MITEE-BITE Fixture Clamp is made up of two simple components: a hardened steel socket cap screw with an offset head and a brass hexagonal washer. This is a lowcost clamping method, that is very common in custom fixtures, for part manufacturing in CNCmilling and other machines. Check out the images, here you can see many examples of how these fixture clamps are used by other clients.

Component Features:

• MiteeBite part number: 50210

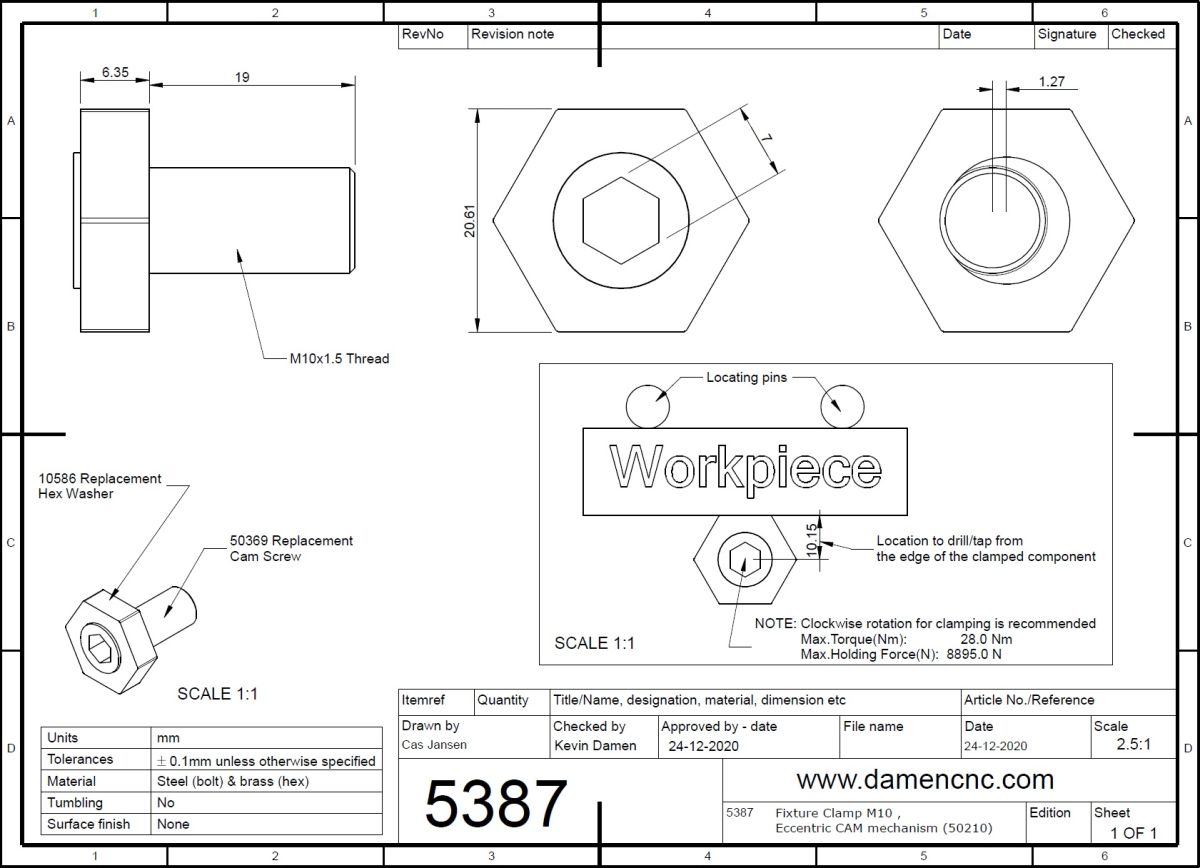

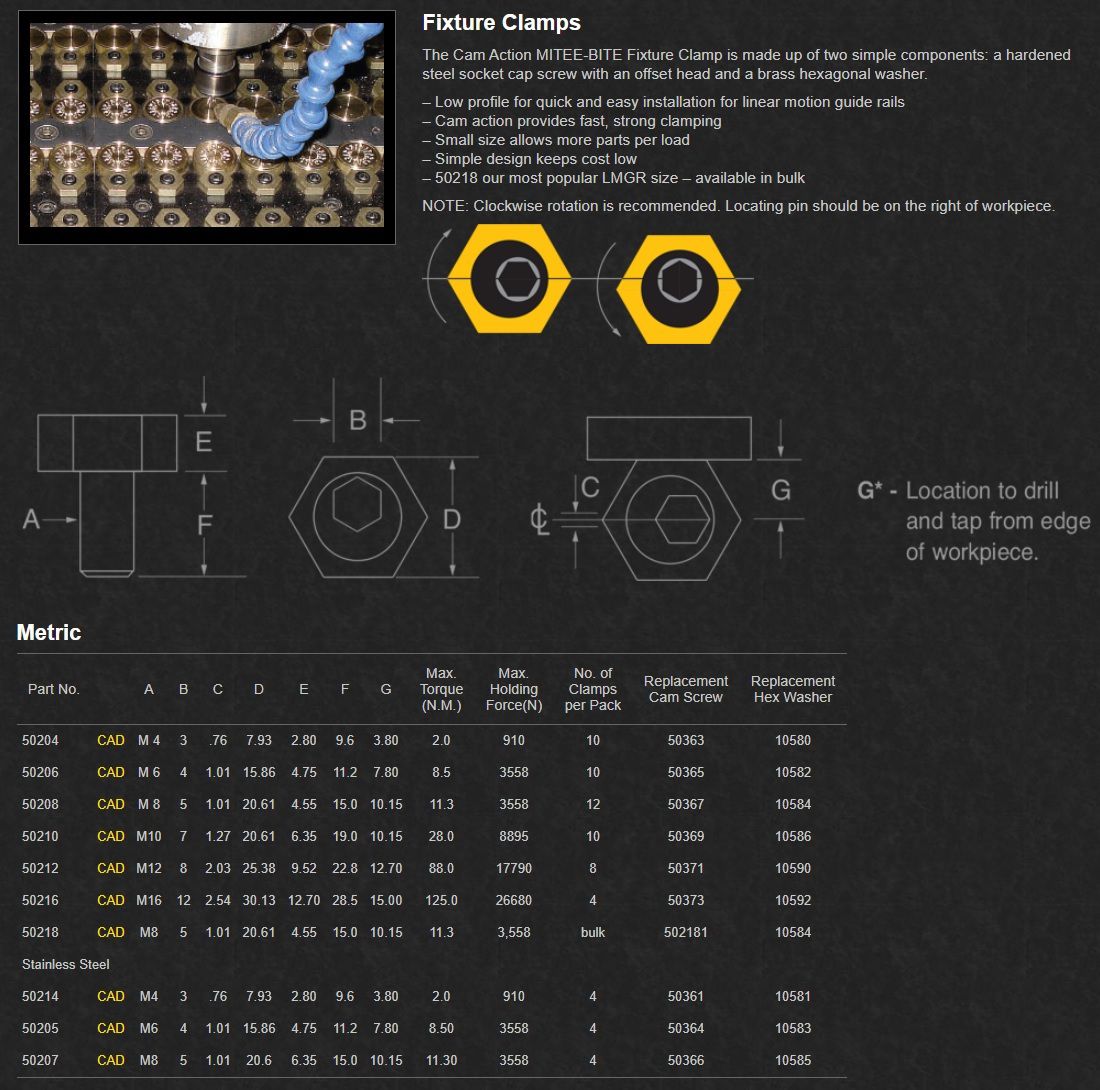

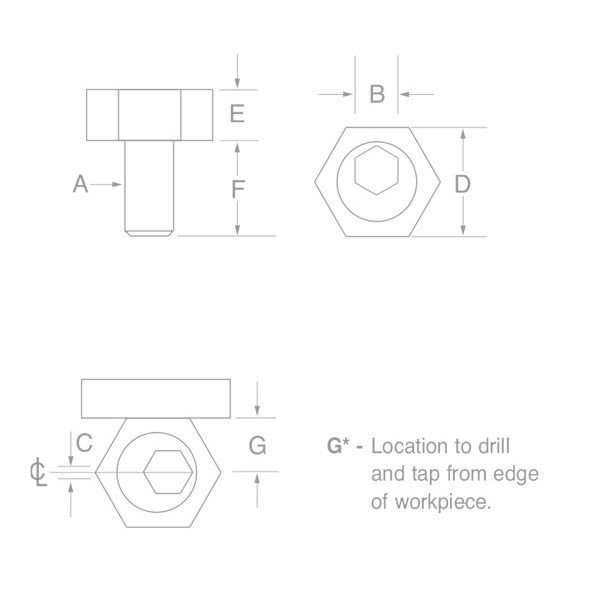

• A B C D E etc, indicates to the MiteeBite drawing (4th image)
• Thread size(A): M10
• Allenkey size(B): 7mm
• Excenter Distance (C): 1.27mm
• Hex Width (D): 20.61mm
• Head Height (E): 6.35mm
• Protruding Thread length (F):  19.0mm

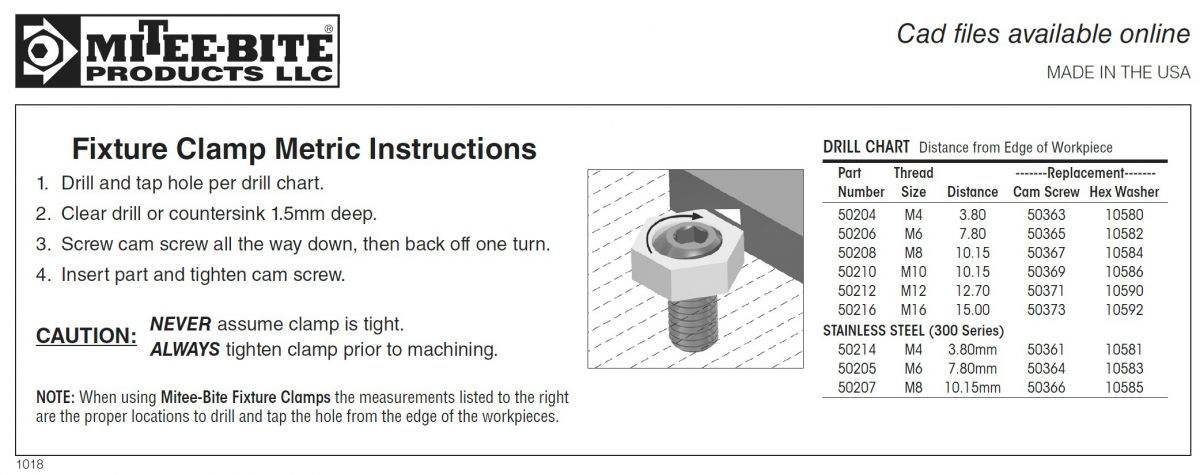

• Location to drill and tap from edge of workpiece (G): 10.15mm
• Max Torque(Nm): 28
• Max Holding force (N): 8895
• Low profile for quick and easy installation for linear motion guide rails
• Cam action provides fast, strong clamping
• Small size allows more parts per load
• Simple design keeps cost low
• Made in the USA
• Quantity discount, sets of 10 pieces
• NOTE: Clockwise rotation is recommended. Locating pin should be on the right of workpiece. Which means the fixture clamp is on the left. See also exampls in the images
