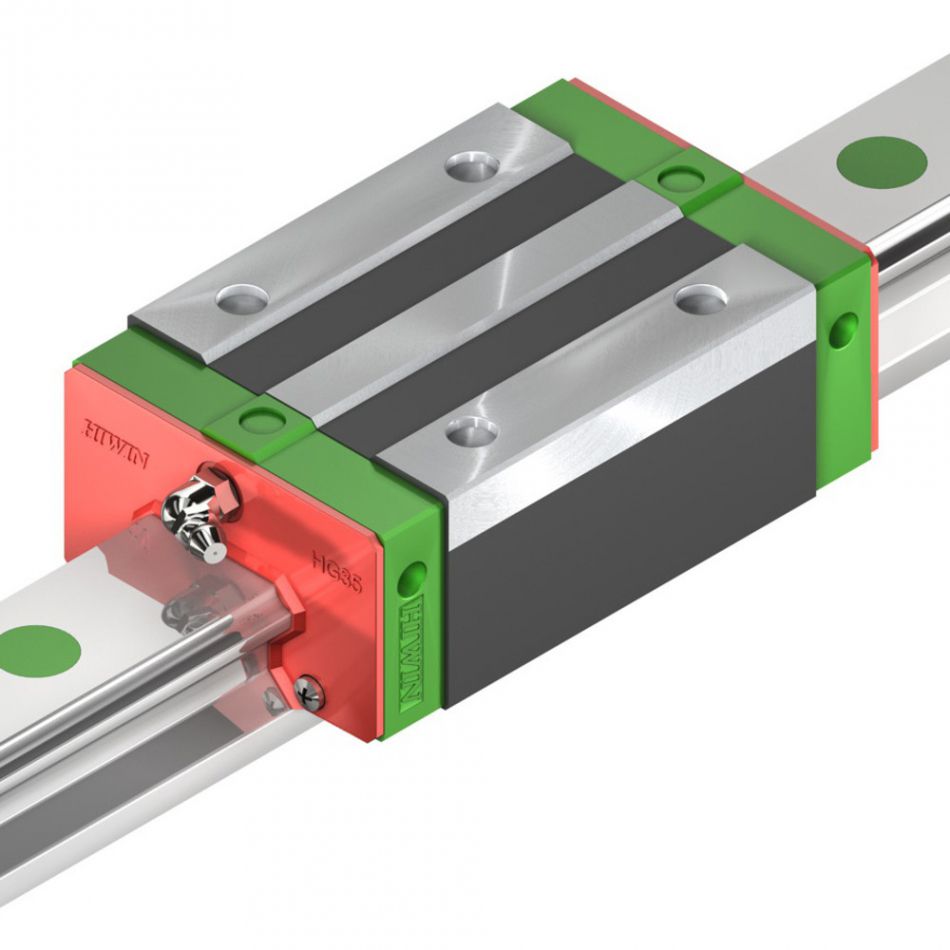

HIWIN Carriage HGL “Low type“ Long Model HGL-30-HA-Z0-H

Article number 4341
HIWIN
Not in stock Not in stock

Keep me updated

Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.

General conditions
Quantity 5 - > 5,00 % on the retail price of 89,99 85,49
Quantity 10 - > 10,00 % on the retail price of 89,99 80,99
Quantity 50 - > 15,00 % on the retail price of 89,99 76,49
Quantity 100 - > 20,00 % on the retail price of 89,99 71,99
89,99 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

These carriages fit the HIWIN HGR and HGT Profile rails. This particular type is the low compact type model for super heavy loads (HA). It is similar to the Heavy Load model (CA), but the difference is the length of the carriage. Due to the longer length, it can carry an even higher load.


Component features:

  • Low Square type model (HGL)
  • Super Heavy Load model (HA)
  • Standard we have Z0 Pre Tension, perfect for CNC-Routers
  • High Precision Class (H)
  • 4 x Threaded hole in carriage allows mounting from above
  • Mounting from below not possible (then we advise to use HGW model)

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

4341-1_HIWIN_Carriage_HGL_“Low_type“_Long_Model_HGL-30-HA-Z0-H_STEP214.stp 4341-1 HIWIN Carriage HGL “Low type“ Long Model HGL-30-HA-Z0-H STEP214
