HIWIN Carriage Sealkit HG-25-ZWX-S (short)
Article number 1030
HIWIN
In Stock
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €24,00 | €22,80 |
| Quantity 10 - > | 10,00 % on the retail price of €24,00 | €21,60 |
| Quantity 50 - > | 15,00 % on the retail price of €24,00 | €20,40 |
| Quantity 100 - > | 20,00 % on the retail price of €24,00 | €19,20 |
€24,00
Excluding VAT
Price per piece
Description
Discount
Compatible Products

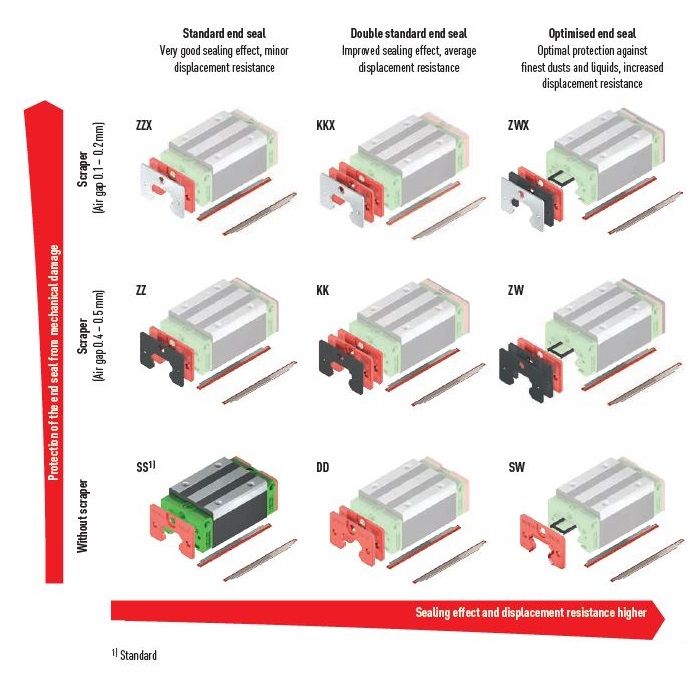

When using HIWIN carriages in a dirty of very dusty environment, HIWIN offers a sealkit, such that the carriage is better protected against dust and chips. The sealkit works on all HG type of carriages. It needs to be purchased a seperate item and mounted to the carriage. Note: there are different sealkits for short carriages (SA/SC), standard carriages (CA/CC) and for long carriages (HA/HC). The sealkit presented here is compatible with the short carriage.
Component features:
- Optimum dust protection
- For metalworking or other application where chips could get into the seals

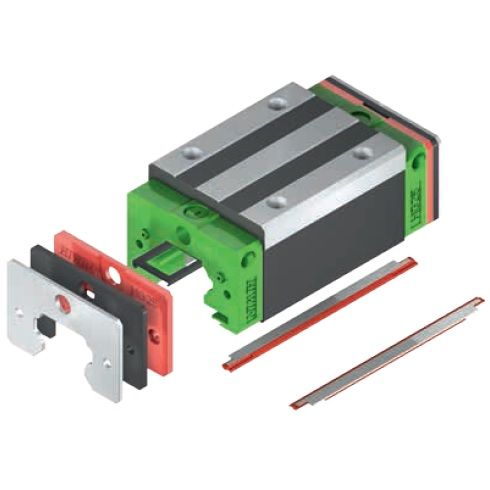

- The additional top seal prevents the ingress of dirt via the top of the rail
-
The optimized bottom seal protects against the ingres of dirt of the rail flank
-
The optimized scraper also protects against dirt particles >0,2mm in diameter and prevents damage to the end seal
