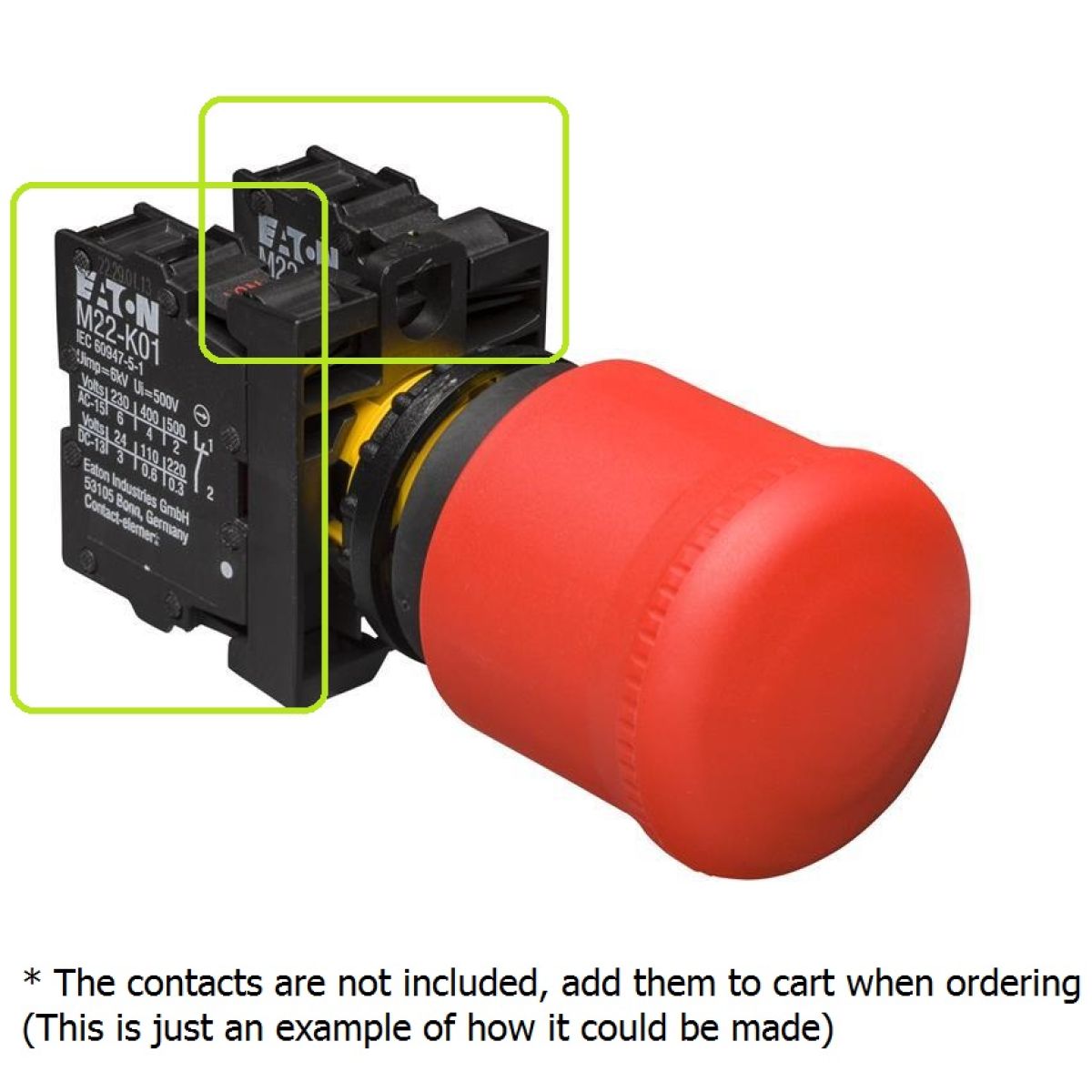

M22-PVS - Pushbutton 22mm E-stop Key-release (216879)

Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Key-to-release function, Red, yellow, RAL 3000

Very common item in machine building. What we offer here is just the button in the key-to-relasee variant. The contacts and key are not included, which ones are compatible, can be found in the compatible products tab.

Component Features:

• Type of release:  Key-to-release function
• Color Mushroom head: Red
• Base colour: yellow
• Momentary: NO (latching)
• Illuminated: NO Not Possible to mount a LED behind the Estop
• Degree of Protection: IP66, IP67, IP69K
• Connection to SmartWire-DT: NO
• Front dimensions: 38mm diameter
• Tamper-proof according to ISO 13850/EN 418
• Standards: IEC / EN 60947, VDE 0660
• Eaton Moeller Part number: M22-PVS (216879)
• Key is included. An extra key can be purchased separately, our part number 7559
• WARNING: Do not forget to order the button adapter, our part number 2667!
