M8 3 Pole Cable L=3000mm MALE-FEMALE Straight Shielded

Article number 5544
PHOENIX CONTACT
In Stock In Stock
General conditions
Quantity 5 - > 10,00 % on the retail price of 31,99 28,79
Quantity 10 - > 20,00 % on the retail price of 31,99 25,59
Quantity 50 - > 30,00 % on the retail price of 31,99 22,39
EAN-number 4046356576116
31,99 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

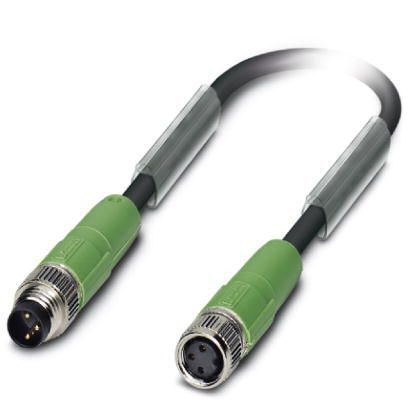

M8 data cable, L = 3000 mm, 3-pole, screened, M8, plug to socket, PUR cable. This cable is often used as a data cable. The cable is shielded, so it is perfect for use in CNC machines with EMI interference from components such as a VFD. The cable is made of flexible polyurethane rubber, making it suitable for use in energy chains. The TeknoMotor ATC41 has m8 3 pole connectors, and these cables can be used to extend the standard 500mm cables on that miling-motor. In our cable interfaces we often use these to extend the wiring to a more suitable place to have a junction box. Because often on the Z-axis of the machine or robot there is not so much space.


Component features:

  • Length: 3000 mm
  • Used in DamenCNC ATC41 Cables for RTR controls (from 2021)
  • Degree of protection: IP67
  • Gender: MALE to FEMALE
  • Number of poles: 3
  • Shielded
  • Connection type: M8 plug and socket
  • Conductor cross-section: 3 x 0.25 mm² in industry standard colors
  • Polarization: A (default)
  • Cable type: PUR (suitable for use in energy chains)
  • Phoenix Contact article number: 1455298

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5544-1_M8_3_Pole_Cable_L=3000mm_MALE-FEMALE_Straight_Shielded_STEP214.stp 5544-1 M8 3 Pole Cable L=3000mm MALE-FEMALE Straight Shielded STEP214
5544-2_M8_3_Pole_Cable_L=3000mm_MALE-FEMALE_Straight_Shielded_STEP242.stp 5544-2 M8 3 Pole Cable L=3000mm MALE-FEMALE Straight Shielded STEP242
5544-3_M8_3_Pole_Cable_L=3000mm_MALE-FEMALE_Straight_Shielded_Datasheet.pdf 5544-3 M8 3 Pole Cable L=3000mm MALE-FEMALE Straight Shielded Datasheet
5544-4_M8_3_Pole_Cable_L=3000mm_MALE-FEMALE_Straight_Shielded_CE_Declaration_of_Conformity.pdf 5544-4 M8 3 Pole Cable L=3000mm MALE-FEMALE Straight Shielded CE Declaration of Conformity
