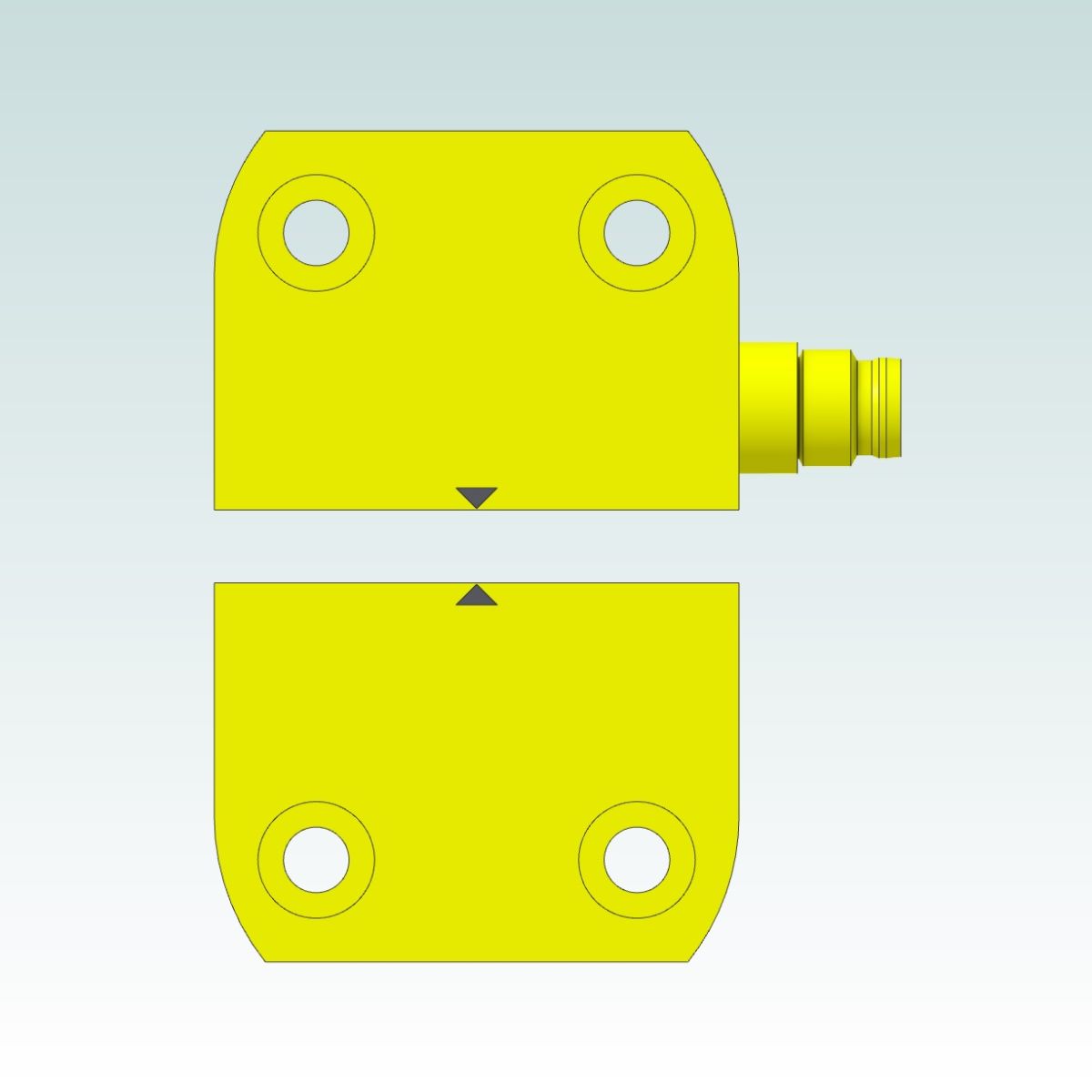

MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT)

Article number 6490
IFM
In Stock In Stock
54,60 Excluding VAT Price per piece
Description
Attachments
Compatible Products

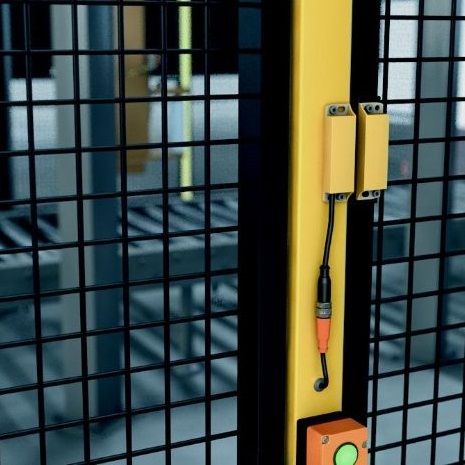

Contactless door monitoring Magnetic sensors enable contactless monitoring of door status. *Can achieve PL e according to ISO 13849-1 and SILCL 3 according to IEC 62061 when used with suitable evaluation units.

Simple connection , M8 plug (4-pin) ensures a standardized connection. With UL and EAC approvals, your machine can be used worldwide without any worries.

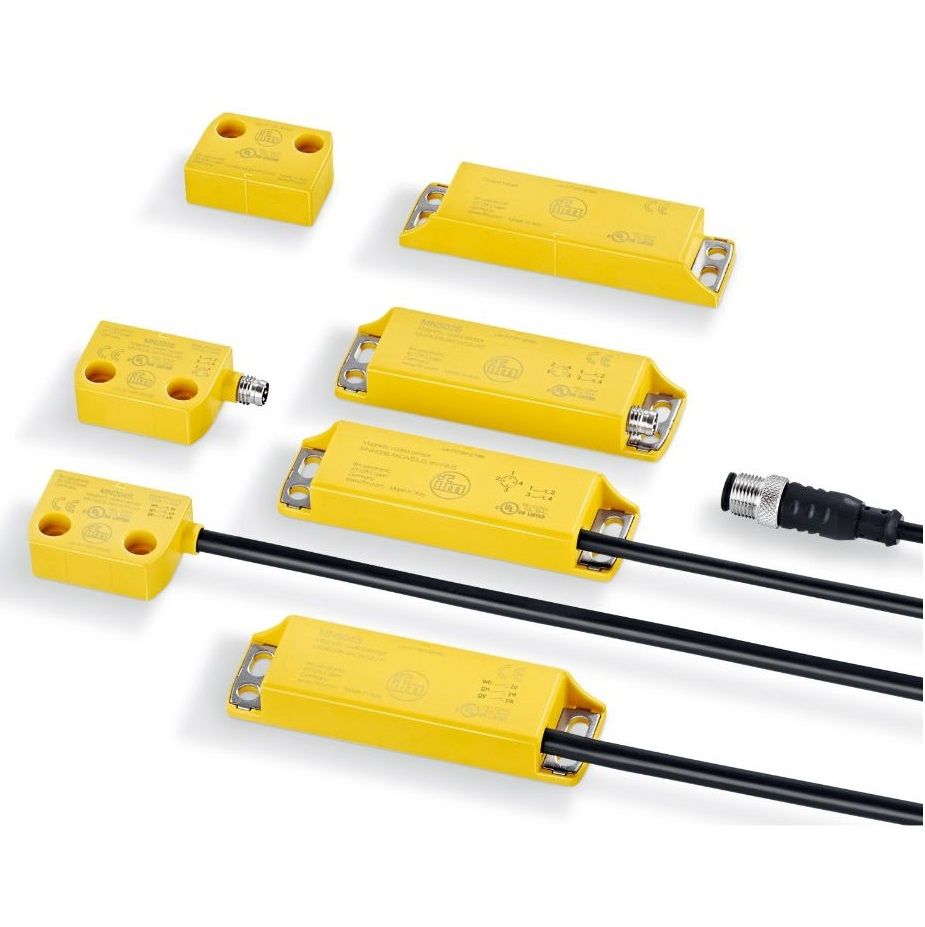

Easy installation The standard versions in a small and large version ensure various applications, even where space is limited.

Safe connection In combination with, for example, the G1501S relay or the AC041S monitor, the sensors have a TÜV approval up to SILCL 3 and PL e. This level of safety can also be achieved with the ifm SmartPLC such as AC422S.

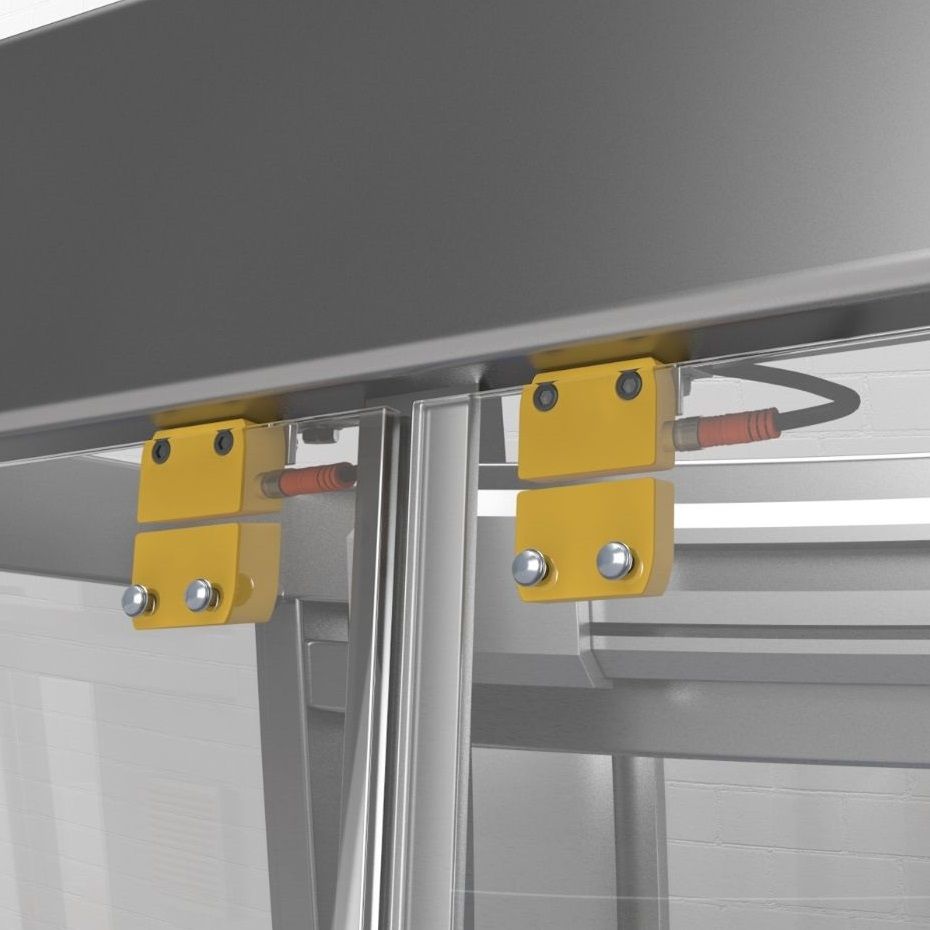

Better protection against tampering Because the sensors can see through stainless steel or aluminum, concealed installation is possible, improving protection against tampering.

High performance Stable switching characteristics thanks to wide switch-on/off graph. The coded actuator allows the sensor to be accessed from different directions.

Component features:

  • Version with M8 4-pin connector (left, there is also a right version 6489)
  • Easily apply other cable lengths (plug and play)
  • Switching distance: 5mm
  • Contacts: 2 x NO (normally open)
  • Protection class: IP67/IP69K
  • Approach from different directions possible
  • Improved manipulation protection through the option of recessed installation or placement behind a stainless steel plate
  • Complies with ZVEI's new CB24I interface descriptions
  • Highest safety level according to ISO 13849-1 and SILCL 3 according to IEC 62061

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

6490-1_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_STEP214.stp 6490-1 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) STEP214
6490-2_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_STEP242.stp 6490-2 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) STEP242
6490-3_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_Datasheet.pdf 6490-3 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) Datasheet
6490-4_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_Manual.pdf 6490-4 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) Manual
6490-5_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_Infocard.pdf 6490-5 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) Infocard
6490-6_MN206S_Magnetically_Coded_Sensor,_5mm,_IP67_IP69K,_24_VDC,_2xNO,_M8_4-Pin_(LEFT)_EU_Declaration_of_Conformity.pdf 6490-6 MN206S Magnetically Coded Sensor, 5mm, IP67 IP69K, 24 VDC, 2xNO, M8 4-Pin (LEFT) EU Declaration of Conformity
