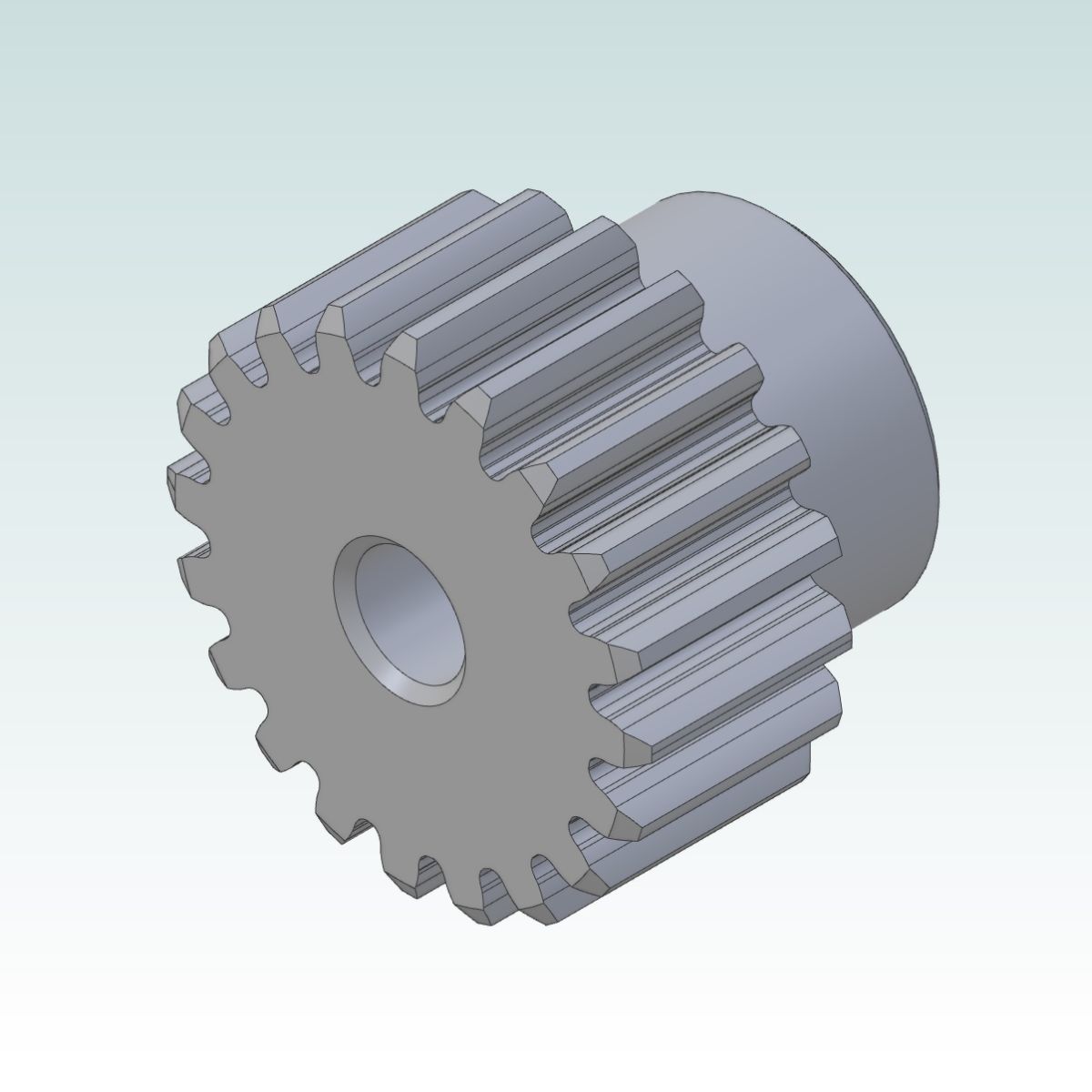

Module 2 Pinion, with 20 teeth
Article number 1810
In Stock
| General conditions | ||
| Quantity 5 - > | 10,00 % on the retail price of €5,70 | €5,13 |
| Quantity 10 - > | 20,00 % on the retail price of €5,70 | €4,56 |
| Quantity 50 - > | 30,00 % on the retail price of €5,70 | €3,99 |
€5,70
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
Module 2,0 gears are used in combination with the module 2 racks we sell. Most often a gearbox is needed in the system. Even with a small gear of 15 teeth the total distance travelled in one rotation is already 94.2mm. If a steppermotor or servo was directly attached this would result in a very fast system. Assuming a motor runs 1000 RPM, that would mean a feedrate of 94200mm/min. Most often we use a 1:10 gearbox so the max feedrate is reduced to 9420mm/min. Take this into account when designing a machine with rack and pinion.
Component features:
- Material C45 steel
- Total gear width (HUB+gear) 35mm
- Gear width 20mm
- Pressure angle 20 degrees
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1810-1 Module 2 Pinion, with 20 teeth STEP214 |
|
1810-2 Module 2 Pinion, with 20 teeth STEP242 |
 |
1810-3 Module 2 Pinion, with 20 teeth 2D Dimensions |
Price agreement
Below you will find you personal price agreements.
| ||||||||||||
Straight Rack Module 2 Q9 25x24x2010.6mm
€140,00
Excluding VAT
Price per piece
