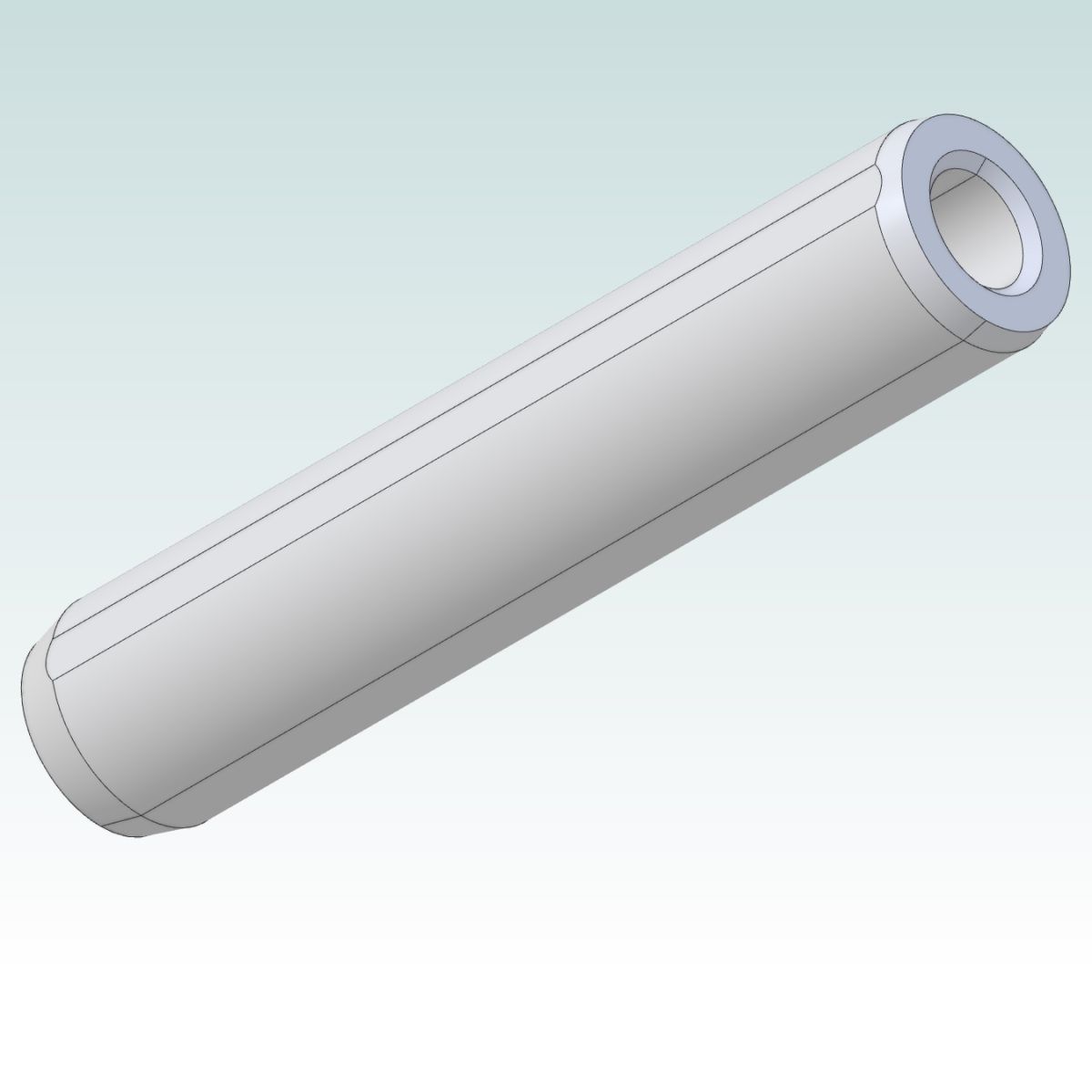

Ø8m6 x 40 Dowel Pin DIN7979D ISO8735A with Internal Thread (m5x0.8)
Article number 1967
In Stock
| General conditions | ||
| Quantity 25 - > | 50,00 % on the retail price of €2,00 | €1,00 |
EAN-number 8715492801272
€2,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
Dowel pin, hardened and ground, with internal thread. Which is handy for being able to remove it later.
Component features:
- Outside Diameter: 8m6
- Length: 40mm
- DIN: 7979D
- ISO: 8735A
- Internal thread: m5x0.8
- Minimum outside diameter: 8.006mm
- Maximum outside diameter: 8.015mm
- Sales quantity for discount: 25 pieces
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1967-1 Ø8m6 x 40 Dowel Pin DIN7979D ISO8735A with Internal Thread (m5x0.8) STEP214 |
 |
1967-2 Ø8m6 x 40 Dowel Pin DIN7979D ISO8735A with Internal Thread (m5x0.8) 2D Dimensions |
