PKZ0-XH - Door coupling handle - White-Black 64 x 64 x 54mm (w x h x d) (106132)

Eaton PKZ PKZ0-XH Door coupling handle black for PKZM0, PKZM4

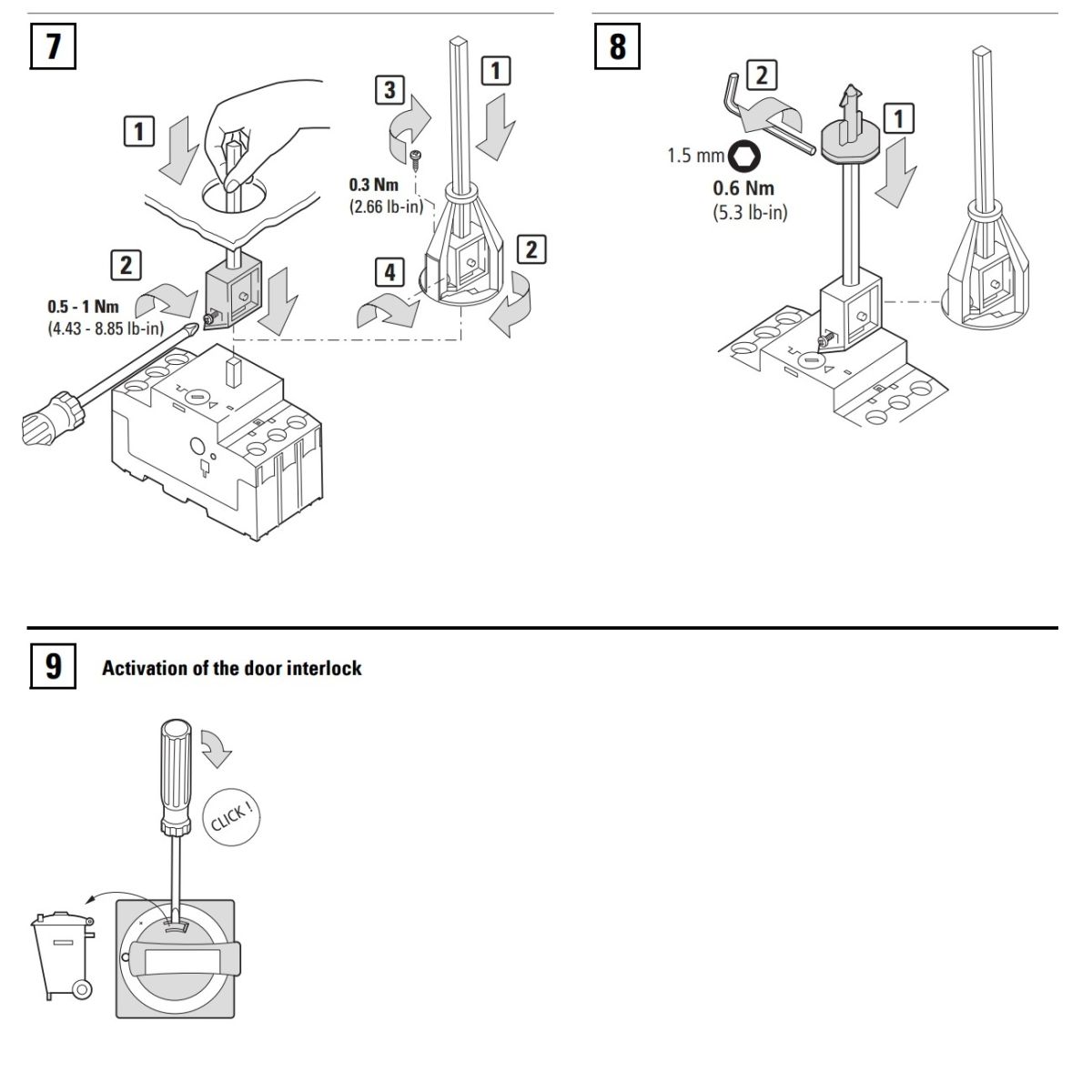

This item is commonly used to control Eaton PKZ Motor protection circuit breakers. The PKZ is most often mounted in an enclosure or control cabinet, on a DIN-rail. This door coupling handle is then placed in the door of the control cabinet, and using the extension shaft, its couple dto the PKZ. The extension shaft needs to be cut to the correct length. See the PDF instruction leaflet or the included printed instructions, on how to cut it to the right length

The door coupling handle, has an ON and OFF indicator, and as a bonus it also has a TRIP indicator. In this way you can easily recognize if someone shut off the PKZ by hand, or if it was automatically tripped. Another feature, is that the switch is locable. A mechanisch inside the handle, allows you the lock it in the OFF position, so the it can work with lock out tag out procedure.

Component features:

• Dimensions: 64x64x54mm (width x height x depth)
• Product depth: 235mm
• Product weight: 0,16kg
• Degree of Protection: IP65
• Temp range: -25 to 55 degrees celsius
• Features: lockable (suitable for lock out tag out)
• Features: trip indicator
• Material: plastic (black with some grey elements)
• Eaton Moeller Part number: 106132
• Eaton Moeller part name: PKZ0-XH
