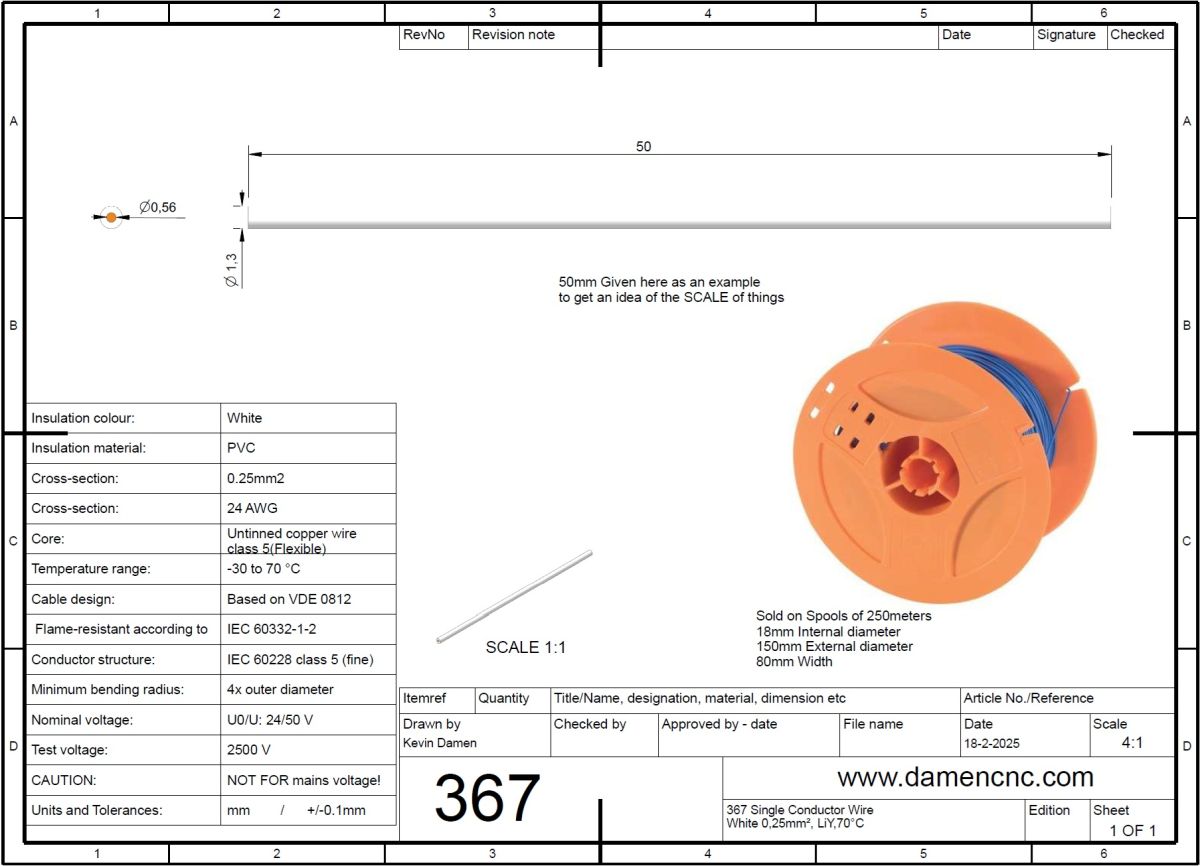

Single Conductor Wire White 0,25mm², LiY,70°C

Lapp LiY 70° installation wire, nom. conductor cross-section 0.25mm², nom. conductor diameter 0.56mm, conductor composition class 5 = flexible, conductor material copper, conductor surface bare, core insulation polyvinyl chloride (PVC), core colour white, outer diameter 1.3mm, processing temperature -30 - +70°C,

Component features:

• Cross-section: 0.25mm2
• Cross-section: 24 AWG
• Insulation colour: White
• Insulation material: PVC
• Core core: Untinned flexible copper wire, class 5 (Flexible)
• Temperature range up to -30 to 70 °C
• Cable design: based on VDE 0812
• Flame-resistant according to IEC 60332-1-2
• Conductor structure: Fine wire according to IEC 60228 class 5
• Minimum bending radius: 4x outer diameter
• Nominal voltage: U0/U: 24/50 V
• Test voltage: 2500 V
• CAUTION: Must not be connected to the mains voltage.

Applications:

• For wiring internal machine circuits.
• Suitable for internal wiring in switch cabinets.
• For fixed and protected installation.
• Can be used in dry and damp rooms.
• Internal use at temperatures down to -30 °C possible.
• Wiring in professional lighting equipment
