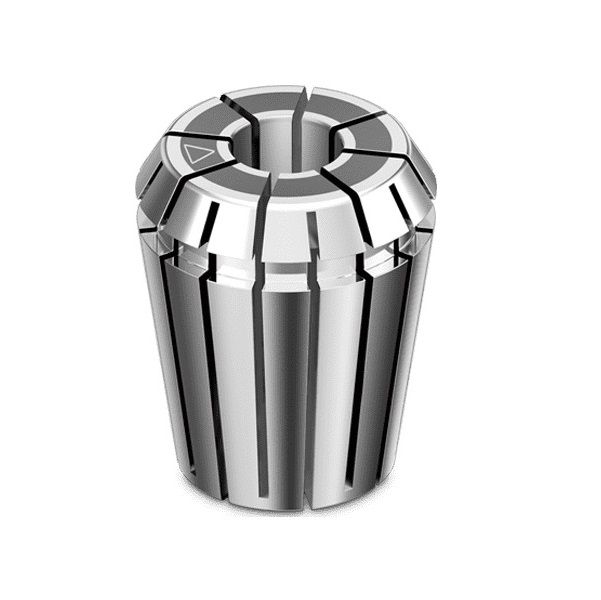

Single MR 16 Collet 1.00mm micRun Swiss Quality

Article number 6221
REGO-FIX
Not in stock Not in stock

Keep me updated

Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.

General conditions
Quantity 5 - > 5,00 % on the retail price of €76,00 €72,20
Quantity 10 - > 10,00 % on the retail price of €76,00 €68,40
Quantity 20 - > 15,00 % on the retail price of €76,00 €64,60
Quantity 50 - > 20,00 % on the retail price of €76,00 €60,80
€76,00 Vat. excluded Price per piece
Description
Attachments
Discount
Compatible Products

Ultra precision and Swiss quality collets. These collets are specified by Teknomotor. The very good run-out accuracy ensures a longer life of your Teknomotor. The Ultra precision collet comes into its own in combination with a micRun tool holder, then the total system run-out deviation is <= 0.003mm. When running small diameter tools at very high RPMs, for example 40,000RPM, then these ultra precision collets are the best choice.

Component features:

  • REGO-FIX article number: 1116.01006
  • Single MR 16 collet
  • Ultra precision Swiss precision (Standard precision also available)
  • Made in Switzerland
  • DIN 6499B / ISO 15488
  • Shank diameter 1.00mm
  • Run-out <=2µm (for just the collet)
  • Run-out <=3µm (total system run-out deviation when using a micRun toolholder)

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

6221-1_Single_MR_16_Collet_1.00mm_micRun_Swiss_Quality_STEP214.stp 6221-1 Single MR 16 Collet 1.00mm micRun Swiss Quality STEP214
6221-2_Single_MR_16_Collet_1.00mm_micRun_Swiss_Quality_STEP242.stp 6221-2 Single MR 16 Collet 1.00mm micRun Swiss Quality STEP242
6221-3_Single_MR_16_Collet_1.00mm_micRun_Swiss_Quality_2D_Dimensions.pdf 6221-3 Single MR 16 Collet 1.00mm micRun Swiss Quality 2D Dimensions
6221-4_REGO-FIX_micRun_catalog_2022.pdf 6221-4_REGO-FIX_micRun_catalog_2022
