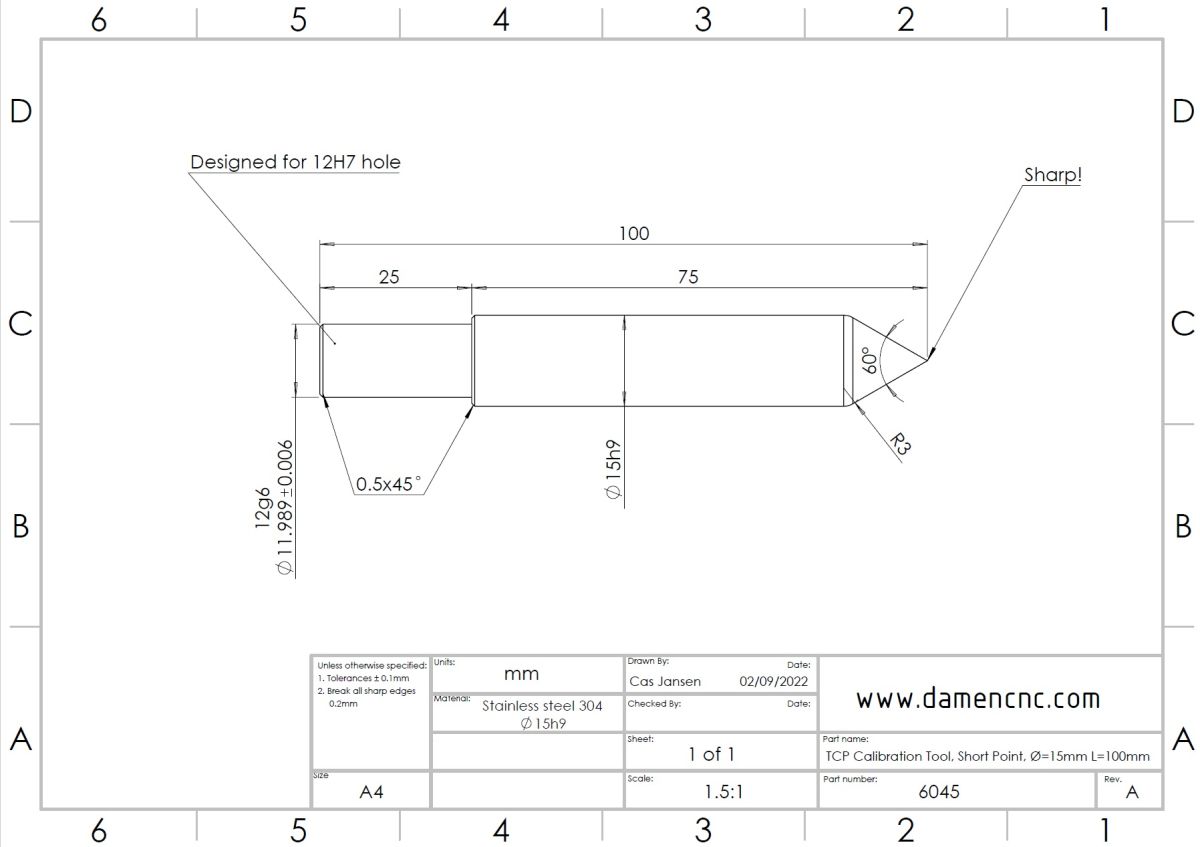

TCP Calibration Tool, Short Point, Ø=15mm L=100mm
Article number 6045
DamenCNC
In Stock
€20,00
Excluding VAT
Price per piece
Description
Attachments
Compatible Products
The TCP Calibration Tool is designed to measure the Tool Center Point (TCP) with a robot. For example, 1x piece on the fabrication plane and 1x piece in a toolholder on the robot. The TCP short point must be placed on the fabrication plane. This allows you to accurately measure the TCP.
The TCP Calibration Tool can also be used to measure other objects with a robot.
Component features:
-
Material: Stainless Steel 304
-
Dimensions: Ø=15h9mm, L=100mm
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
6045-1 TCP Calibration Tool, Short Point, Ø=15mm L=100mm STEP214 |
|
6045-2 TCP Calibration Tool, Short Point, Ø=15mm L=100mm STEP242 |
 |
6045-3 TCP Calibration Tool, Short Point, Ø=15mm L=100mm 2DDimensions |
