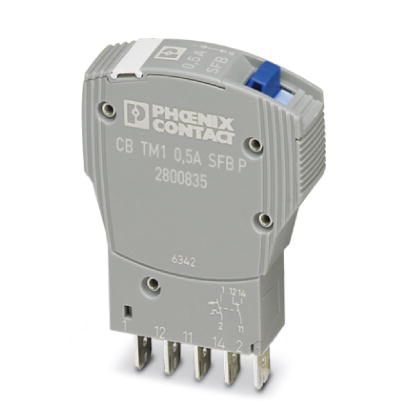

Thermomagnetic device circuit breaker - CB TM1 0.5A SFB P - 2800835

Article number 4680
PHOENIX CONTACT
In Stock In Stock
General conditions
Numbers 10 - > 20,00 % on the retail price of € 32,99 € 26,39
32,99 Excluded VAT Price per piece
Description
Attachments
Discount
Compatible Products

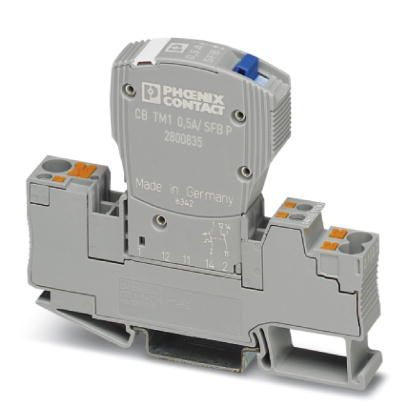

Thermomagnetic device circuit breaker, 1-pole, tripping characteristic SFB, 1 changeover contact, plug for base element

Component Features:

  • Current Rating: 0.5 amps
  • Compact design with precise nominal current levels
  • Modular expansion possible thanks to the uniform, plug-in housing concept

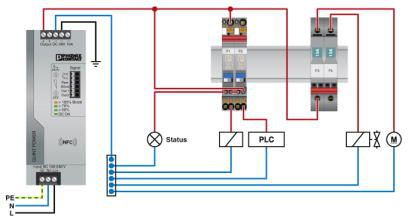

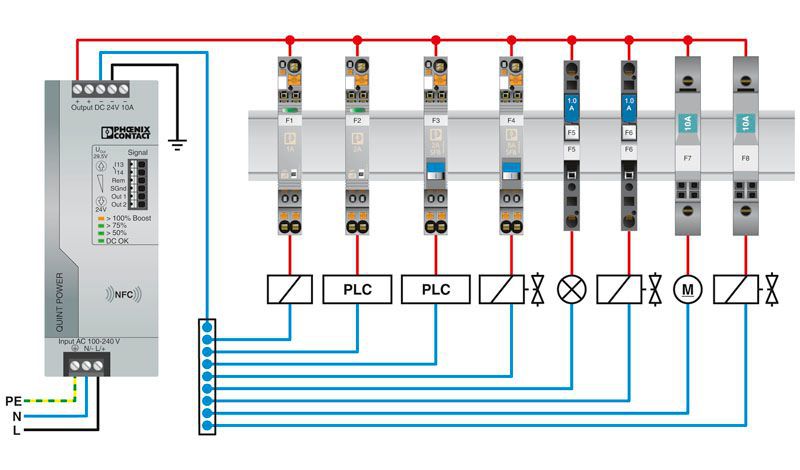

  • Remote signaling concept enables monitoring from any location (Status of breaker can be read through switching contact)

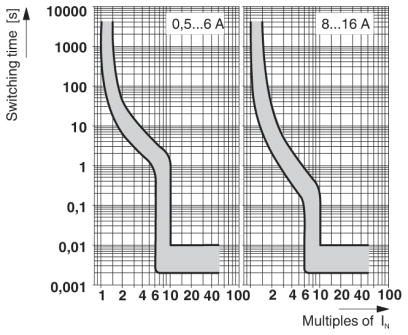

  • Maximum overcurrent protection across long cable paths via SFB trigger characteristic

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

4680-1_Thermomagnetic_device_circuit_breaker_-_CB_TM1_0.5A_SFB_P_-_2800835_STEP214.stp 4680-1 Thermomagnetic device circuit breaker - CB TM1 0.5A SFB P - 2800835 STEP214
