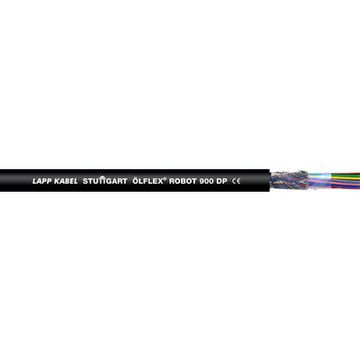

TPE-PUR Shielded Robot Cable 12x0,14mm² (DIN47100)
Article number 5472
Lapp
In Stock
| General conditions | ||
| Quantity 100 - 100 | 30,00 % on the retail price of €14,00 | €9,80 |
EAN-number 4044774659954
€14,00
Excluding VAT
Price per meter
Description
Attachments
Discount
Compatible Products
High quality special multicore cable especially designed to withstand torsion and bending stress in once. We often use this cable for milling motors on robot applications. The cable has 12 0.14mm² cores used for the data/sensor connection of the milling motor. The cables does not have twisted pairs. (for encoders we would recommend using twisted pairs)
Component features:
- Often used for milling motors (ATC41 TeknoMotor) in robotic milling applications
- Suitable for use in CableChains; this cable can withstand torsion and bending stress in once
- Can handle dry, damp or wet locations as well as outdoor
- Resistant against high mechanical abuse, particularly to abrasion cuts, microbe proof and hydrolysis resistant
- Screened against electromagnetic interference effects (EMC)
- Colour coding: DIN 47100
- Number of cores and core cross-section: 12 x 0.14mm2
- Outside diameter: 6.7mm
- Copper weight: 42.5 kg / km
- Weight: 69 kg / km
- Torsional load: +/- 180 degrees
- Minimum bending radius: 100.5mm (moving setup: 15 x outer diameter)
- Minimum bending radius fixed installation: 26.8mm (fixed installation: 4 x outer diameter)
- Intended use: 5V to 24VDC sensor and actor signals. (1.5Amps rated current up 10meter length)
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
5472-1 TPE-PUR Shielded Robot Cable 12x0,14mm² (DIN47100) Cable Properties |
