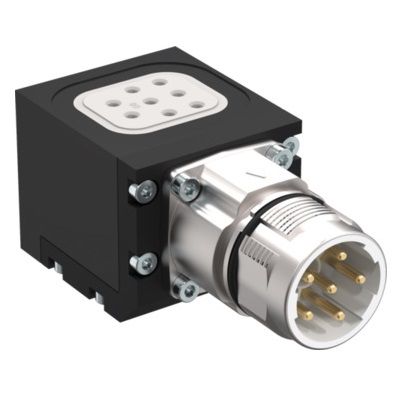

WER3000FLA06-00 (5+PE) Energy Element for Toolchanger,Ø200mm,WWR160 (Robot side)

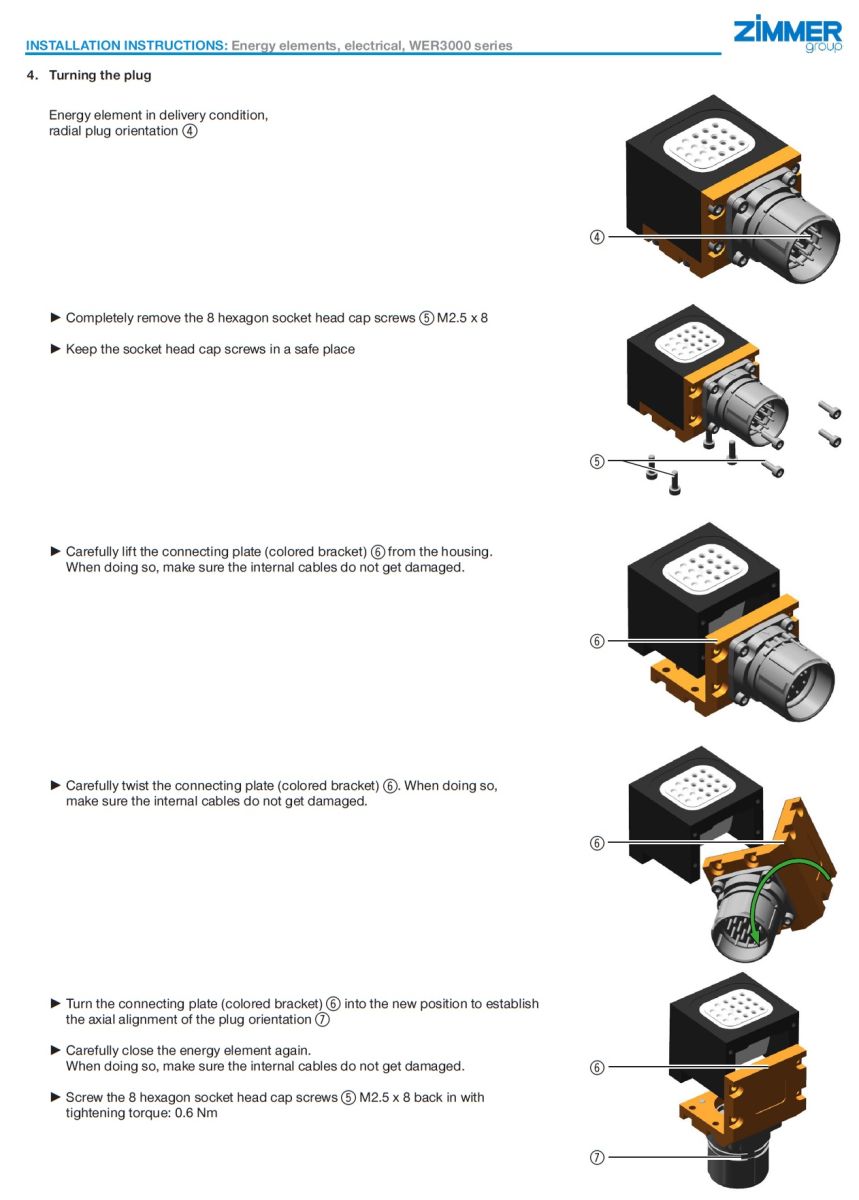

Energy element that is mounted on the Robot side of the toolchanger. This type has 5+PE pins, and is commonly used to supply power to devices that are mounted on the tool side. The connector interface used is a standard M23 (5+PE), that will fit straight and angled types. The element itself can also be mounted straight or angled. To change the orientation, see the third image. There an instruction is given, on how to rotate the plug.

Component features:

• Robot or Tool side: Robot side
• Number of pins: 5+PE
• Possible to mount in straight or angled manner (part can be rotated 90 degrees)
• Zimmer part number: WER3000FLA06-00
• Compatible with elment on the Tool side 5660 WER3000LLA06-00 (5+PE) Energy Element for Toolchanger,Ø200mm,WWR160L-B (Tool side)
• Compatible with 5654 and 5655 APWER elements
• Compatible with M23 connectors (5+PE)
