Wiring Duct 43x31 (43mm high, 31mm wide)
Article number 1982
In Stock
EAN-number 4012740102902
€11,50
Excluding VAT
Price per meter
Configure your product
Description
Attachments
Compatible Products
Cable duct 63x20 (height x width) cross-section, including cover, also known as a wiring duct, cable trunk or wiring channel.
Component features:
-
External Height: 43 mm
-
External Width: 31 mm
-
Including lid
-
Length: max 1000mm (available in lengths of 2000mm, however, due to shipping shortened to pieces of 1000mm)
-
Bottom mounting pattern: slot 4.5mm wide, 8mm long, pitch 50mm
-
Bottom mounting pattern: slot 6.5mm wide, 14mm long, pitch 50mm
-
Color: gray (RAL7030)
-
Material: PVC (plastic)
-
Sidewall: perforated
-
Useful diameter: 1160mm2
-
Capacity for wires with H07V-U / R / K 1mm2: 51
-
Capacity for wires with H07V-U / R / K 1.5mm2: 37
-
Capacity for wires with H07V-U / R / K 2.5mm2: 27
-
Ambient temperature: -5 to 65ºC
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1982-1 Wiring Duct 43x31 (43mm high, 31mm wide) STEP214 |
|
1982-2 Wiring Duct 43x31 (43mm high, 31mm wide) STEP242 |
|
1982-3 Wiring Duct 43x31 (43mm high, 31mm wide) Simplified STEP214 |
|
1982-4 Wiring Duct 43x31 (43mm high, 31mm wide) Simplified STEP242 |
 |

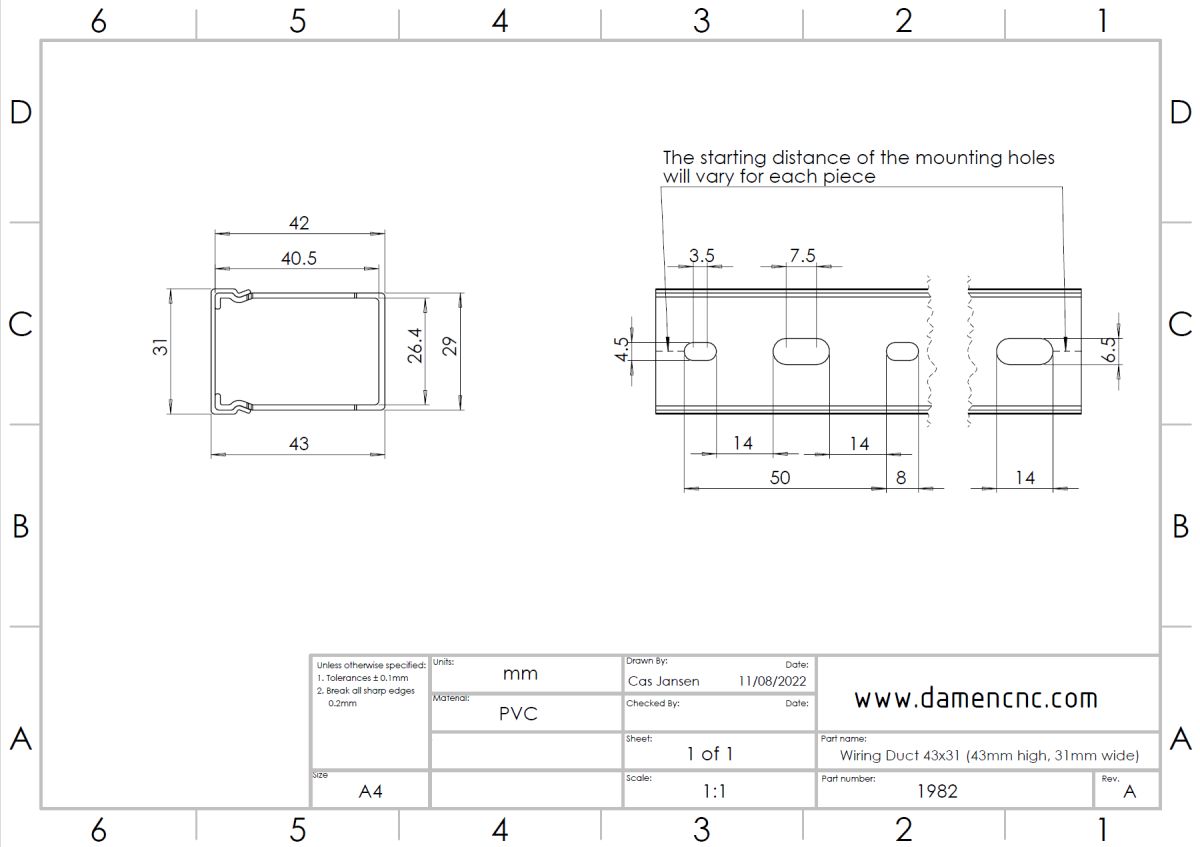

1982-5 Wiring Duct 43x31 (43mm high, 31mm wide) 2D Dimensions |
