BF/FF 10 Ballscrew End Machining Floating side

Article number 8210
DamenCNC
General conditions
Amount 2 - 3 10,00 % on the retail price of € 30,00 € 27,00
Amount 4 - 5 20,00 % on the retail price of € 30,00 € 24,00
Amount 6 - 9 30,00 % on the retail price of € 30,00 € 21,00
Amount 10 - > 40,00 % on the retail price of € 30,00 € 18,00
30,00 Excluding VAT Price per Lathe Operation
Description
Discount
Compatible Products

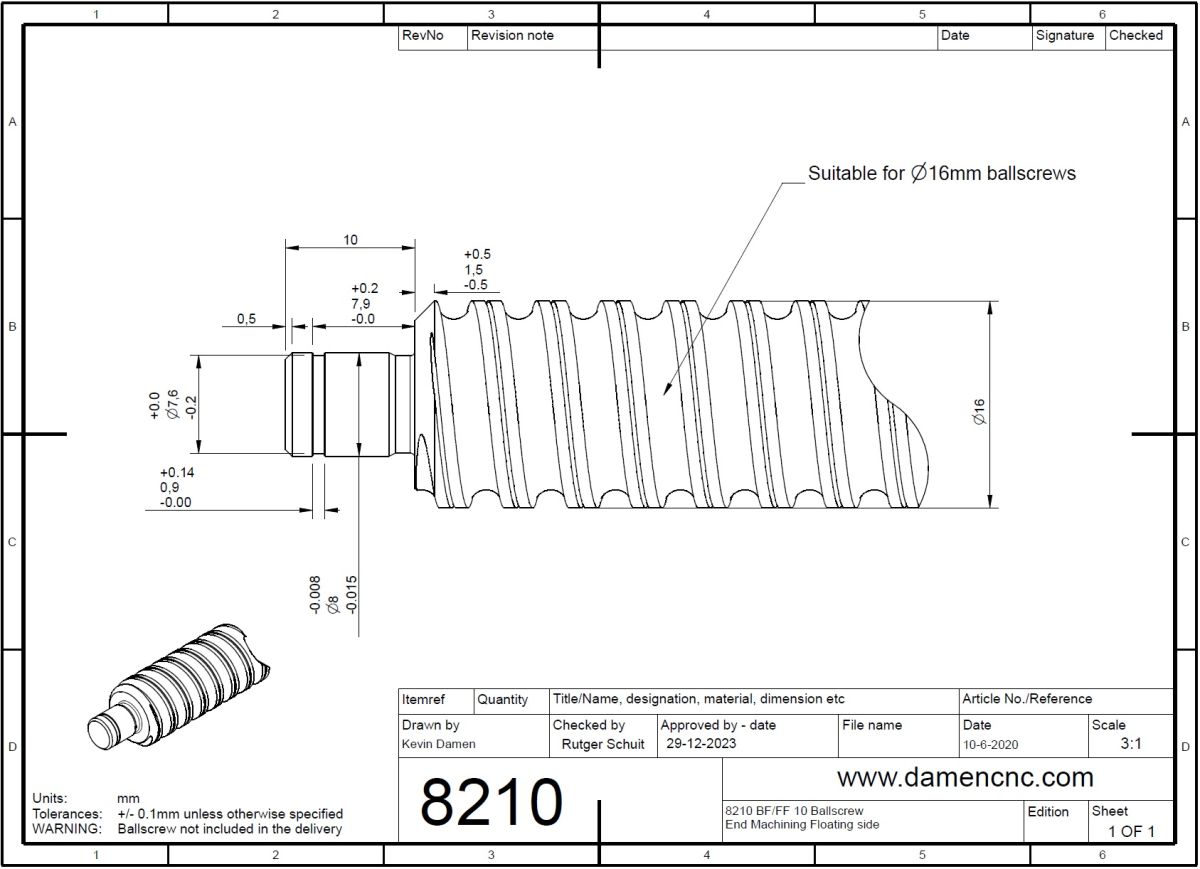

We have a DMG lathe in our workshop which can be used for machining the ends of the ballscrews, for example to fit the bearings or shaft couplers. We can perform a number of standard operations cost-effectively, including the BF/FF 10 Ballscrew End Machining Floating Side. We will machine one end of the spindle to fit into the BF 10 and FF 10 Floating Ballscrew Support Unit. For larger series, the price per operation will greatly improve.

Component features:
  • Leadtime 1-2 weeks; urgent delivery on request
  • First order the 16mm ballscrew and then select the desired end machining
  • Don't forget to order end machining for both the fixed side and floating side
  • Price only valid up to a maximum ballscrew length of 1250mm
  • Above 1250mm ballscrew length price is on request

Price agreement

Below you will find you personal price agreements.

General conditions
Amount 2 - 3 10,00 % on the retail price of € 30,00 € 27,00
Amount 4 - 5 20,00 % on the retail price of € 30,00 € 24,00
Amount 6 - 9 30,00 % on the retail price of € 30,00 € 21,00
Amount 10 - > 40,00 % on the retail price of € 30,00 € 18,00

BF10_C3 Floating Ballscrew Support Units (C3 Quality)
BF10_C3 Floating Ballscrew Support Units (C3 Quality)
In Stock In Stock
General conditions
Amount 3 - > 5,00 % on the retail price of € 21,99 € 20,89
Amount 5 - > 10,00 % on the retail price of € 21,99 € 19,79
Amount 10 - > 15,00 % on the retail price of € 21,99 € 18,69
Amount 20 - > 20,00 % on the retail price of € 21,99 € 17,59
21,99 Excluding VAT Price per piece
FF10_C3 (8mm bore) Floating Ballscrew Support Unit (C3 Quality)
FF10_C3 (8mm bore) Floating Ballscrew Support Unit (C3 Quality)
In Stock In Stock
General conditions
Amount 3 - > 5,00 % on the retail price of € 15,99 € 15,19
Amount 5 - > 10,00 % on the retail price of € 15,99 € 14,39
Amount 10 - > 15,00 % on the retail price of € 15,99 € 13,59
Amount 20 - > 20,00 % on the retail price of € 15,99 € 12,79
15,99 Excluding VAT Price per piece
