The specific type we offer here the CMT2108X2  is a Standard HMI from Weinview, which means it has at least 1 COM port. The weinview CMT2108X2  also has 2 Ethernet ports onboard. It can be programmed with the Weintek software, Easy Builder Pro version V6,08,01 or later. Which can be downloaded free of charge, from our website, or from the Weintek website. The 7 inch screen is a very popular model, its affordable, and the screen is big enough for basic applications. Relative to the low cost weinview HMI we offer, the advantage of this cMT2078X HMI, is that it can be extended with an EASY ACCES card. Allowing you to acces the HMI through internet, it can also be used as a gateway to acces a PLC or other system that is linked.

The CMT2108X2 is equipped with A17 quad-core CPU, the cMT X Series has 4 times more computing power, and even 12 times more graphics processing power thanks to its high performance dedicated 3D processor. For users who adopt “cMT HMI + CODESYS controller” solution, the powerful processor ensures that cMT X Series delivers swift and smooth operating experience even with CODESYS running.
Weintek HMIs are designed to operate in harsh working environments.

Connectivity:

• Connects to more than 300 different protocols/devices (i.e. PLCs, Inverters, etc.)
• Can communicate with different devices/protocols at the same time
• Multiple Weintek operator panels can be daisy-chained
• Pass-through function (program PLC through HMI connection)
• Remote monitoring and fault diagnosis
• Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
• Internet Of Things (IOT) connectivity
• World-wide access to HMIs with EasyAccess (Optional)

Capabilities:

• Control the cMT unit using the cMT Viewer app on your PC or Tablet/Phone (Android/IOS)
• Three users can connect at the same time independend from each other
• Multiple security levels
• Extensive graphics library
• Data logging
• Alarm handling
• Recipes
• E-mail
• Trend display
• Dynamic drawing/scaling
• Multi language support
• Time synchronization
• Barcode scanning
• Macro support for the creation of complex functions
• Offline/online simulation
• The EasyBuilder Pro configuration software is available as a FREE download.

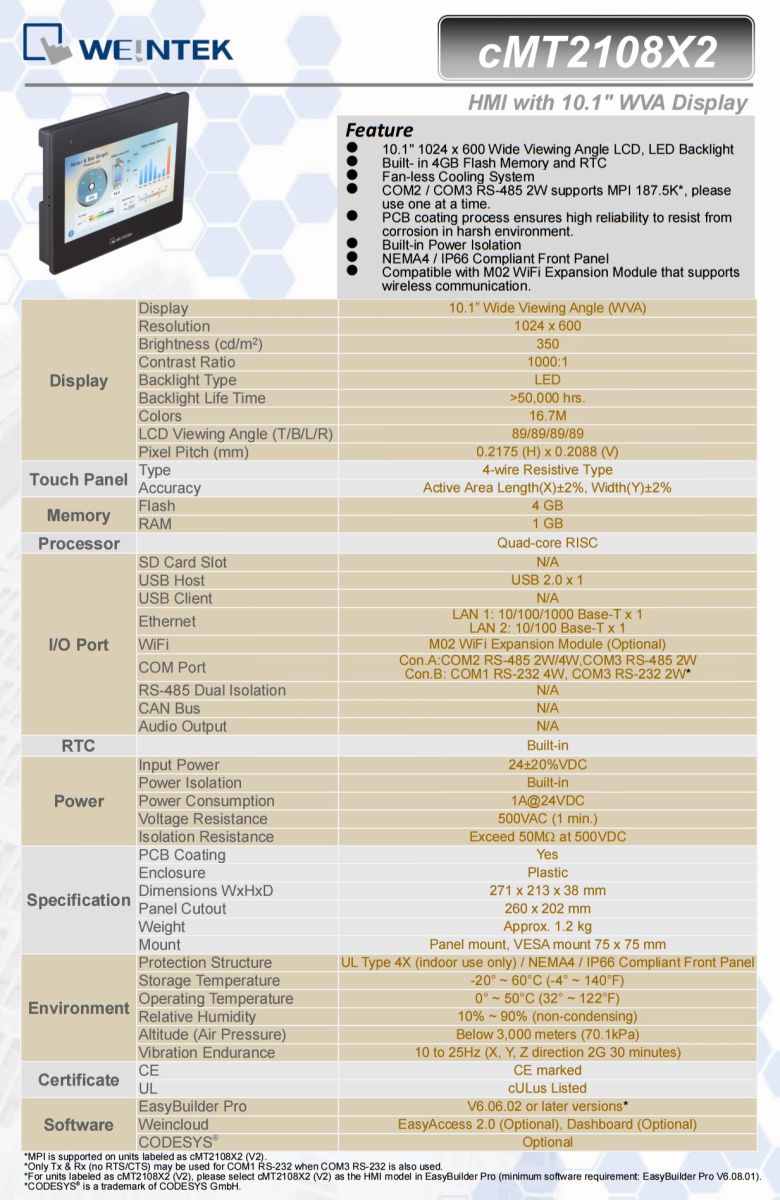

Technical Specs:

• 10,1" wide screen TFT display (16.7M colors)
• Resolution: 1024 x 600 pixels
• Brightness: 350 cd/m²
• Contrast ratio: 350:1
• Touch screen: Analog resistive
• Processor: Quad-core 64-bit 1.5GHz
• History size limit: 40 samples, 10,000 records/sample
• PLC interface: RS232/485, 2 x 10/100Mbps Ethernet
• USB ports: 1 USB 2.0 host port
• (for connection of keyboard, mouse, barcode scanner, printer, etc.)
• Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
• Real Time Clock / Calendar
• Power supply: Isolated 24 VDC input
• Enclosure: Plastic

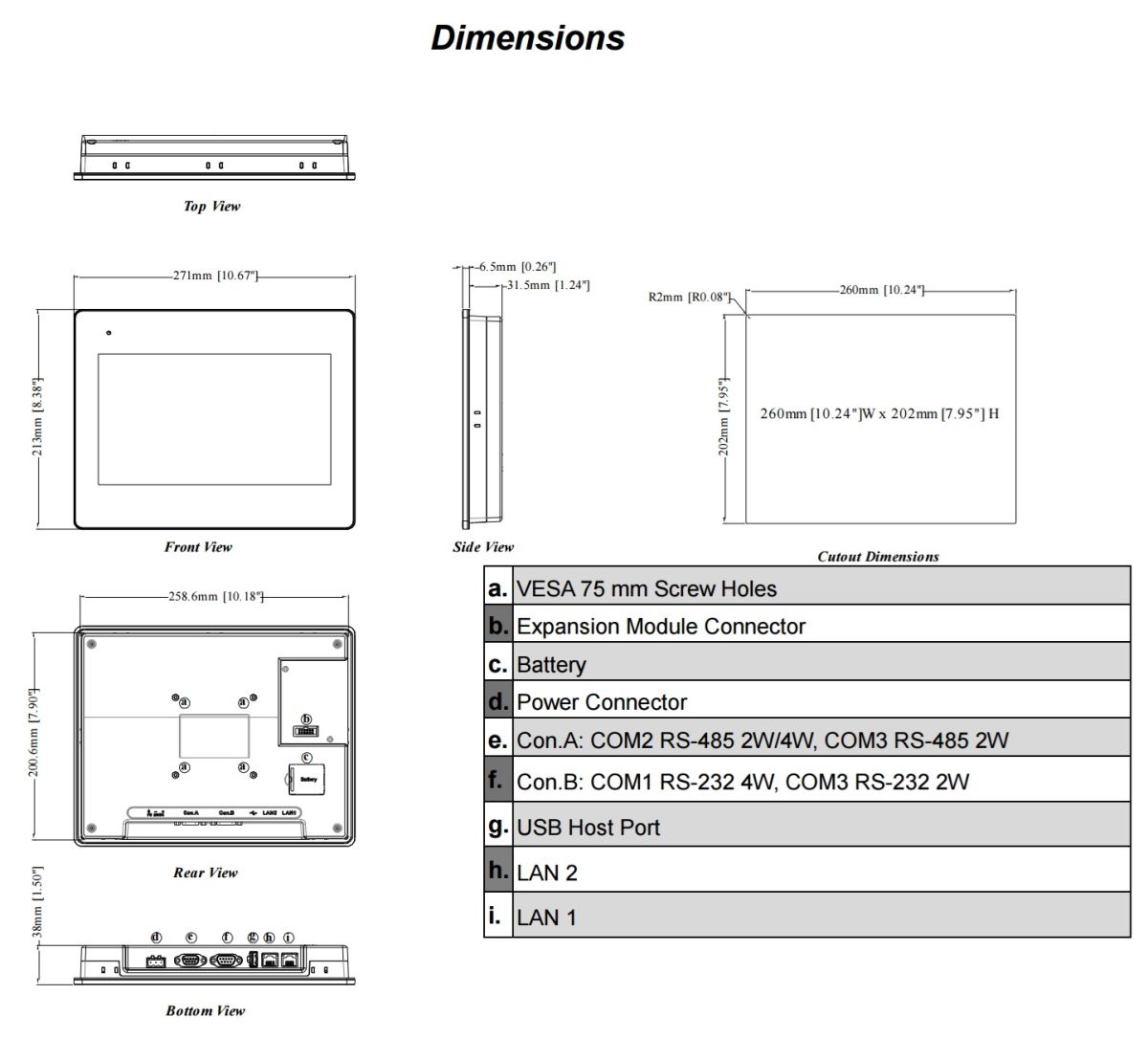

• Mounting: Panel mount + VESA mount 75 x 75 mm
• Comes with Screen Protective Film
• Optional: Codesys , Easy access
