HSK-A40 MR 16 x 100H Toolholder + Balanced Nut

Very high quality tool holders from the Swiss brand Rego-Fix. We use these tool holders for our ATC milling motors with an HSKA-40 holder. These holders are balanced to 90,000rpm. To utilize the full potential of your milling motor, we recommend toolholders and collets from Rego-Fix; quality really makes the difference here. We have these tool holders available in stock for collet size MR16. The Rego-fix micRuncollets have an incredible runout TIR which leads to a total system runout TIR of =3 µm.

For robotics or 5 axis machining, this version with a longer gauge length can be interesting. The gauge length of 100mm, puts the tool 40mm further out than the standard models, which have a 60mm gauge length. This can be an advantage for robotics and 5 axis milling, when doing complex machining strategies, where you need to avoid collision with work holding and the machine table, and of course the products itself.

Component features:

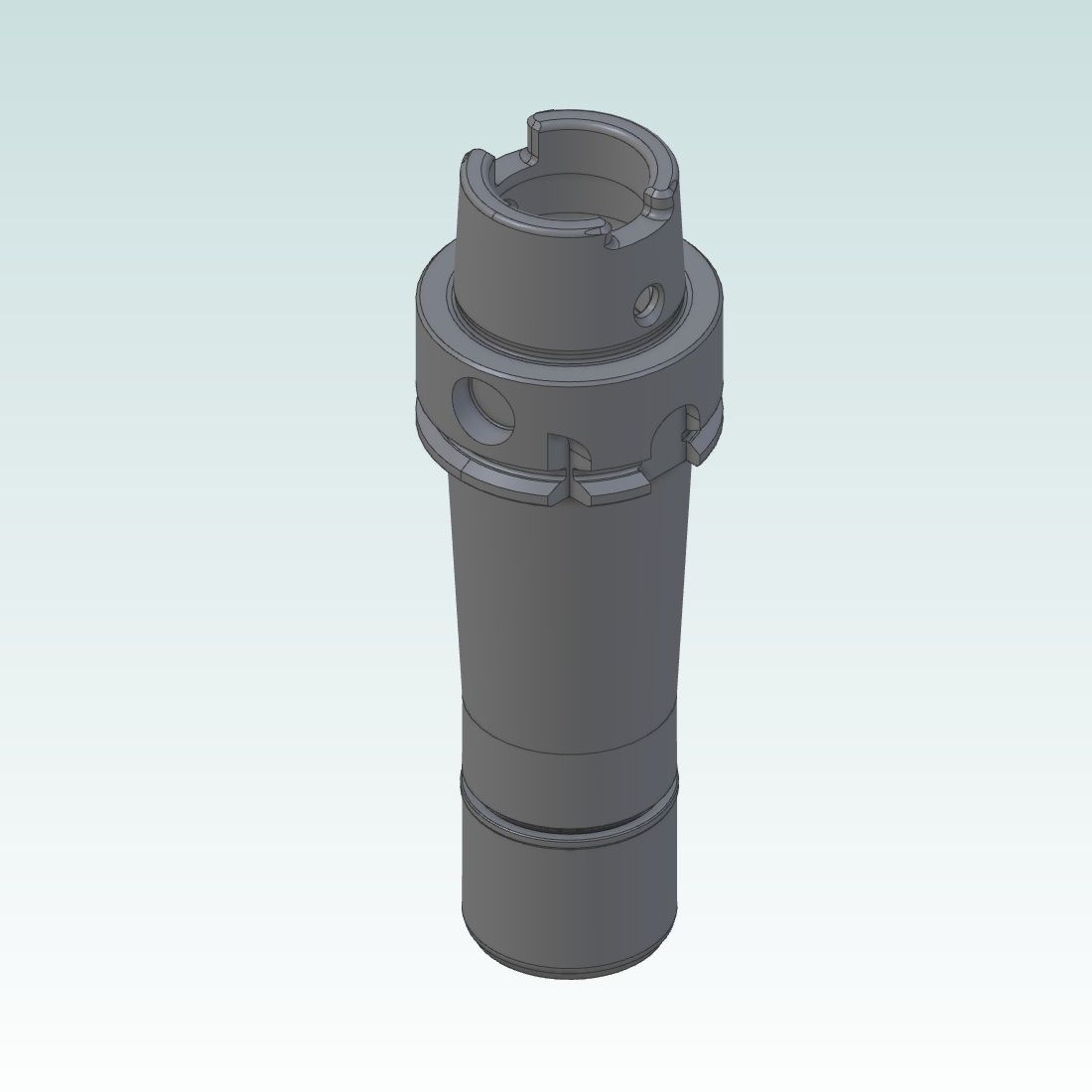

• Tool Holder HSK-A40 (can also be used in QTC engines with HSK-C40 mounting)
• Gauge length: 100mm (distance from spindle nose to front of collet)

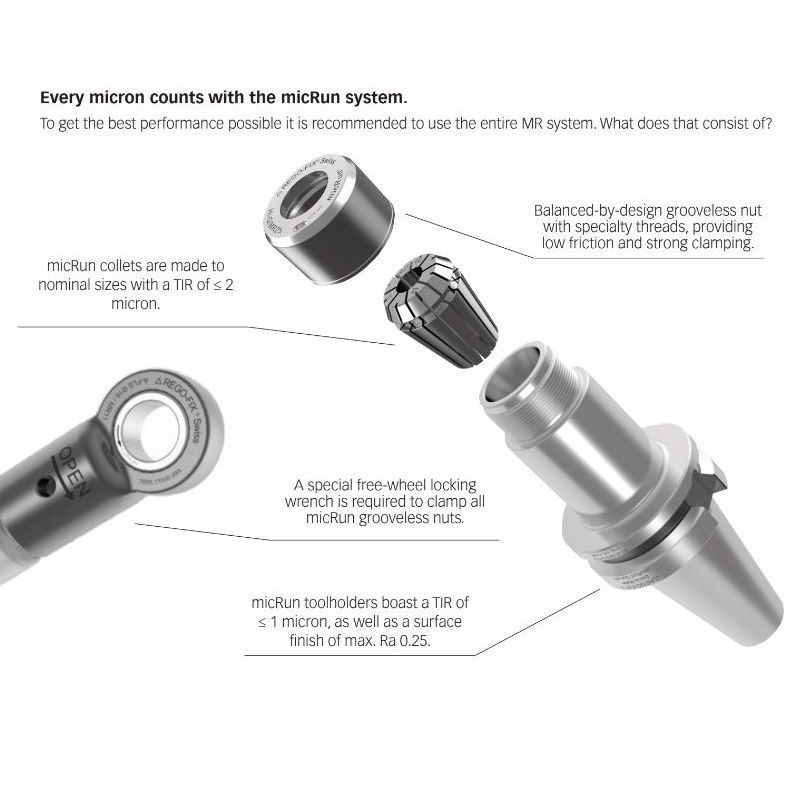

• Suitable for micRun MR16 collets (The Rego-fix micRun collets have a very small run-out error leading to a total system TIR of =3 µm)
• Also suitable for ER16 collets (Will give more run-out deviation =10 µm)
• Made in Switzerland
• Balance quality: G2.5 @ 90,000rpm or U< 1gmm
• Includes Hi-Q MR16 collet nut (REGO FIX part number: 3616.00000)
• REGO-FIX part number: 5540.11650
