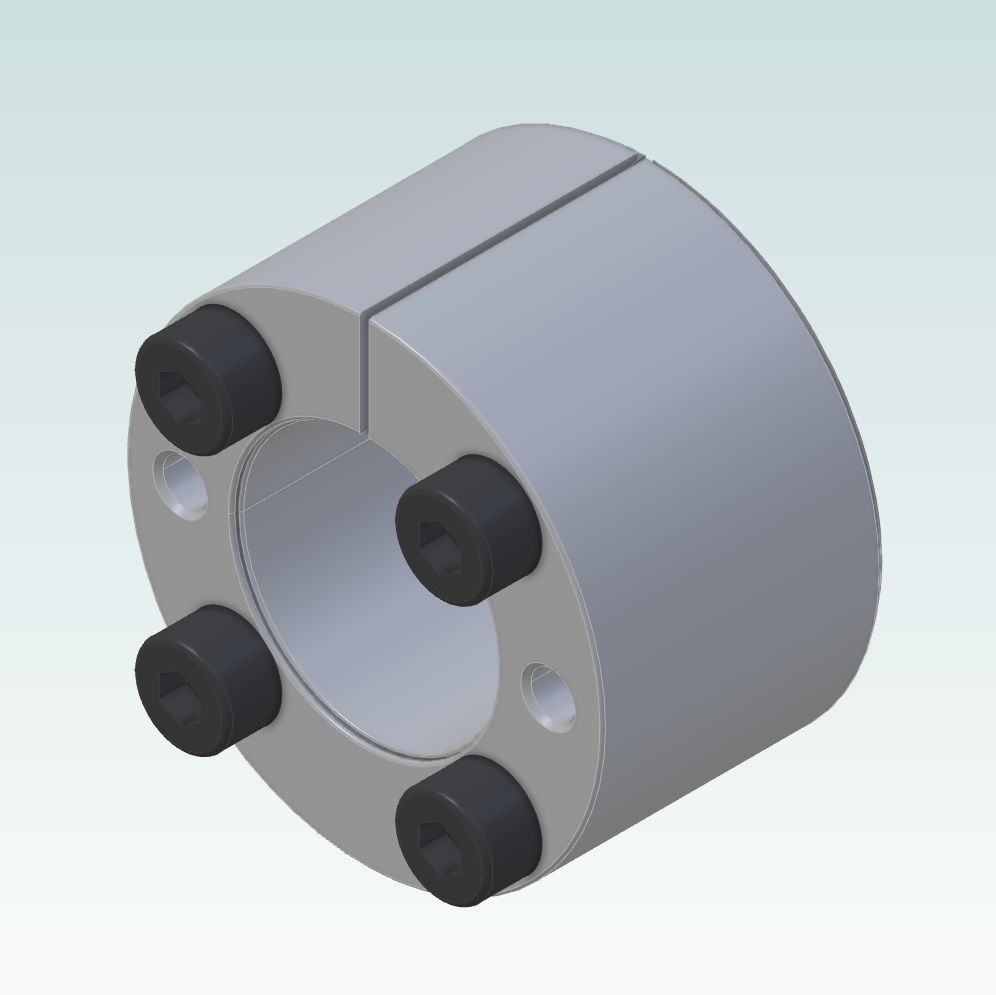

Locking Assembly BK61 d x D x 19x35 Lt=25

Article number 5148
In Stock In Stock
General conditions
Quantity 5 - > 10,00 % on the retail price of 13,00 11,70
Quantity 10 - > 20,00 % on the retail price of 13,00 10,40
Quantity 50 - > 30,00 % on the retail price of 13,00 9,10
13,00 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

Over the years we have tested many systems to mount gears to shafts. In terms of reliability locking screws have proven to give trouble. In time these come loose, resulting in backlash or even worse, damage to your CNC system. We have tested BK61 axial locking parts in our machines. It has proven to be a very reliable method to mount gears to shafts. The amount of torque that can be transmitted is amazing. And mounting these units is very easy.


Component features:

  • Best locking system we have tested by far
  • Self-centering, easy mounting, limited installation time
  • Inside Diameter x Outside Diameter x Total length (including bolts): 19x35x25mm
  • Maximum tightening torque bolts: 4.9 Nm
  • Maximum transferable torque: 99 Nm
  • Maximum axial load: 10kN
  • To remove, unscrew the 4 bolts, and place 2 back in the threaded holes (see drawing for details)

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5148-1_Locking_Assembly_BK61_d_x_D_x_19x35_Lt=25_STEP214.stp 5148-1 Locking Assembly BK61 d x D x 19x35 Lt=25 STEP214
5148-2_Locking_Assembly_BK61_Manual.pdf 5148-2 Locking Assembly BK61 Manual
5148-3_Locking_Assembly_BK61_d_x_D_x_19x35_Lt=25_2D_Dimensions.pdf 5148-3 Locking Assembly BK61 d x D x 19x35 Lt=25 2D Dimensions
