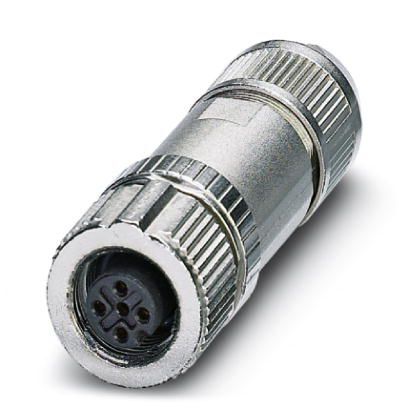

M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668
M12 4-pole Straight Female Shielded Connector - 1424668

M12 4-pole Straight Female Shielded Connector - 1424668

Article number 5455
PHOENIX CONTACT
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of €21,10 €20,05
Quantity 10 - > 10,00 % on the retail price of €21,10 €18,99
Quantity 50 - > 20,00 % on the retail price of €21,10 €16,88
EAN-number 4055626375953
€21,10 Excluding VAT Price per piece
Add to cart
Description
Attachments
Discount
Compatible Products

These connectors are compatible with our plug and play sensor system that is used in the RTR sets. This connector is intended for those who which to connect other sensors than we supply, or to make custom cable lengths. The connectors are high quality push in type connectors, which makes the connection quite easy. The pins are colour coded which make it even easier to connect.

Component eigenschappen:

  • Plug and Play with our Pluggable Inductive Sensor and RTR set
  • Shielded version, perfect 360degree EMC shielding. (We advise to use this type, when using shielded cables)
  • Degree of protection: IP65 (Cable mounted)
  • Input wire 4mm to 8mm diameter
  • Number of poles: 4
  • Gender: FEMALE
  • Type of Termination: PUSH-IN
  • Polarisation: A (standard)
  • Manufacturer part nr: Phoenix Contact 1424668 SACC-M12FS-4PL SH

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5455-1_M12_4-pole_Straight_Female_Shielded_Connector_(1424668)_STEP214.stp 5455-1 M12 4-pole Straight Female Shielded Connector (1424668) STEP214
5455-2_M12_4-pole_Straight_Female_Shielded_Connector_(1424668)_STEP242.stp 5455-2 M12 4-pole Straight Female Shielded Connector (1424668) STEP242
5455-3_M12_4-pole_Straight_Female_Shielded_Connector_(1424668)_Datasheet.pdf 5455-3 M12 4-pole Straight Female Shielded Connector (1424668) Datasheet
