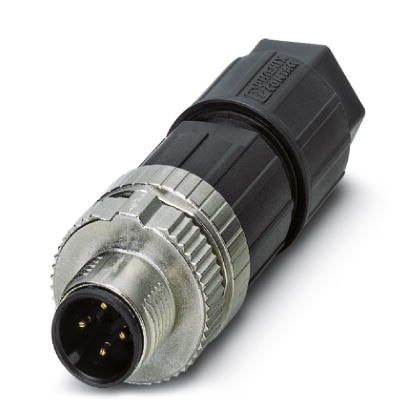

M12 4-pole Straight Male Connector (1424657)

Article number 4796
PHOENIX CONTACT
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of 11,50 10,93
Quantity 10 - > 10,00 % on the retail price of 11,50 10,35
Quantity 50 - > 20,00 % on the retail price of 11,50 9,20
EAN-number 4055626375847
11,50 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

These connectors are compatible with our plug and play sensor system that is used in the RTR sets. This connector is intended for those who which to connect other sensors than we supply, or to make custom cable lengths. The connectors are high quality push in type connectors, which makes the connection quite easy. The pins are colour coded which make it even easier to connect.

Component features:

  • Plug and Play with our Pluggable Inductive Sensor and RTR sets
  • Degree of protection: IP65 (Cable mounted)
  • Input wire 4mm to 8mm diameter
  • Number of poles: 4
  • Gender: MALE

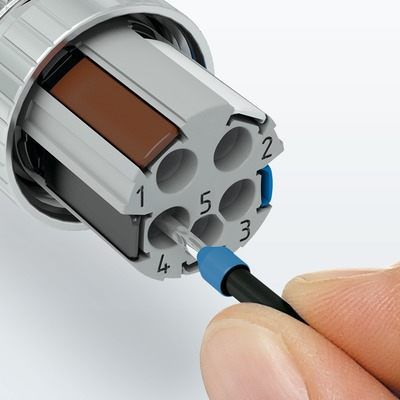

  • Type of Termination: PUSH-IN
  • Polarisation: A (standard)
  • Manufacturer part nr: Phoenix Contact 1424657 SACC-MS-4PTL M SCO
  • Optional Shielded Version: 4711

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

4796-1_M12_4-pole_Straight_Male_Connector_(1424657)_STEP214.stp 4796-1 M12 4-pole Straight Male Connector (1424657) STEP214
4796-2_M12_4-pole_Straight_Male_Connector_(1424657)Datasheet.pdf 4796-2 M12 4-pole Straight Male Connector (1424657)Datasheet
