M22-WRS-A1 - MS1 - Key-operated actuator - 22mm - 2-way (229092)

Eaton Industries RMQ M22 selector switch front element, key switch design, locking switch function, titanium front edge, black control element, 2 switch positions, 22.5mm hole diameter, round lens design, other indicator lamp cover, IP rating IP66,

With the optional M22 coding set (216406 M22-XC-R), you can determine the key removal positions. By default, without modifications, the key can only be removed in the ZERO (0) positions.

The actuator has two fixed positions, 1 and 0, when operated. This behavior can also be changed by inserting the yellow coding pin (216407 M22-XC-Y). Doing so will cause the key to spring back to the 0 position.

Component features:

• Key type: MS-1 (these can also be ordered separately as spares)
• Number of positions: 2
• Key removable in the 0 position: YES
• Key removable in the 1 position: NO
• Spring-return: NO
• Suitable for lighting: NO
• Protection rating: IP66
• Button frame: Titanium-colored
• Connection with SmartWire-DT: Yes, with SWD-RMQ connections

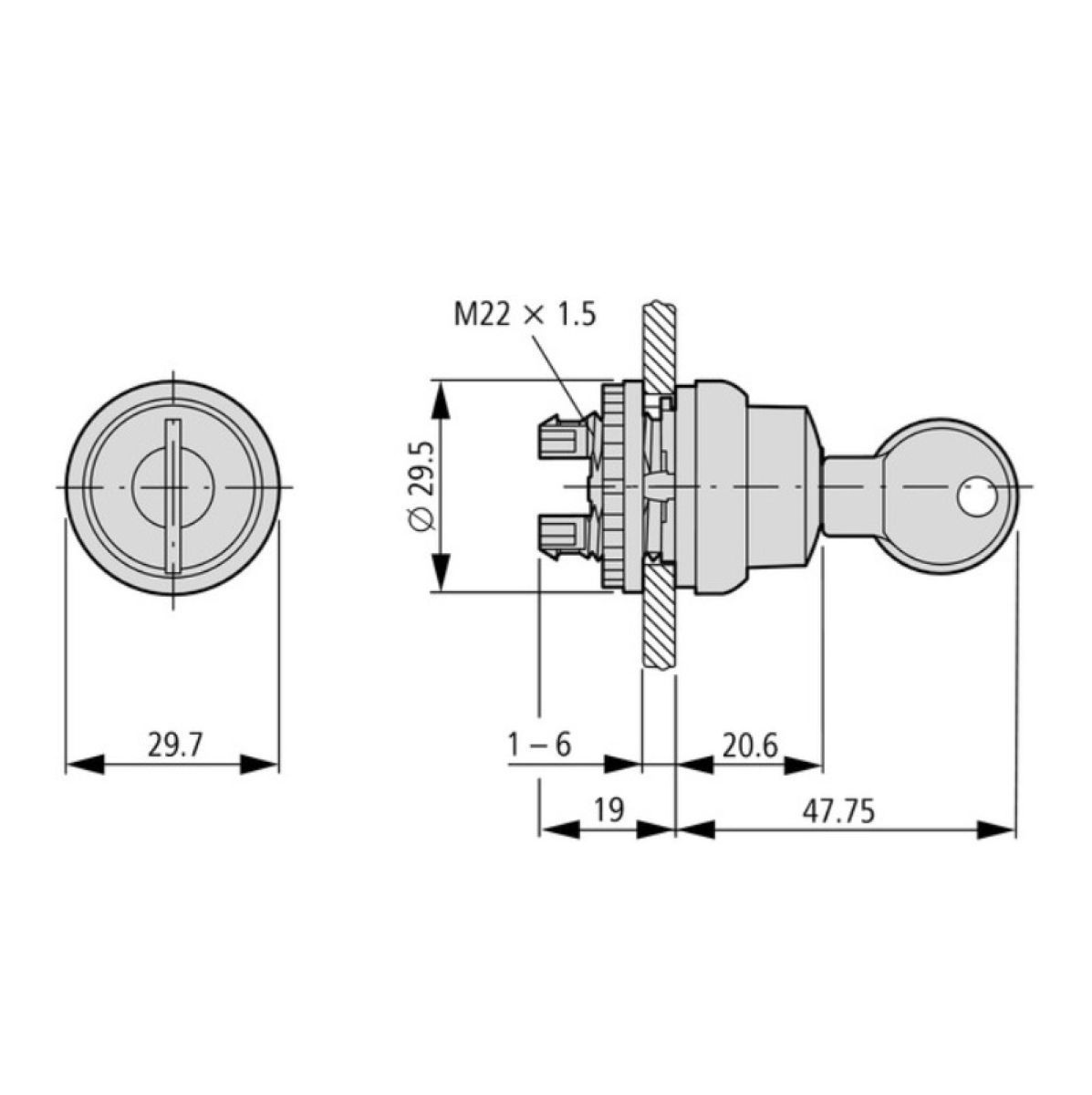

• Front dimensions: 29.7mm outer diameter
• Standards: IEC / EN 60947, VDE 0660
• EATON Moeller part number: 229092
• EATON Moeller part name: M22-WRS-A1
• NOTE: Don't forget to order the button adapter, our part number 2667!
