M22-WRS - MS1 - Key-operated actuator - 22mm - 2-way (216887)
In Stock
| General conditions | ||
| Quantity 5 - > | 10,00 % on the retail price of €49,60 | €44,64 |
| Quantity 10 - > | 20,00 % on the retail price of €49,60 | €39,68 |
| Quantity 20 - > | 30,00 % on the retail price of €49,60 | €34,72 |
Eaton Industries RMQ-Titan selector switch front element, key control element design, locking switch function, titanium front edge, black control element, 2 switch positions, 22.5mm hole diameter, round lens design, other indicator lamp cover, IP rating IP66,

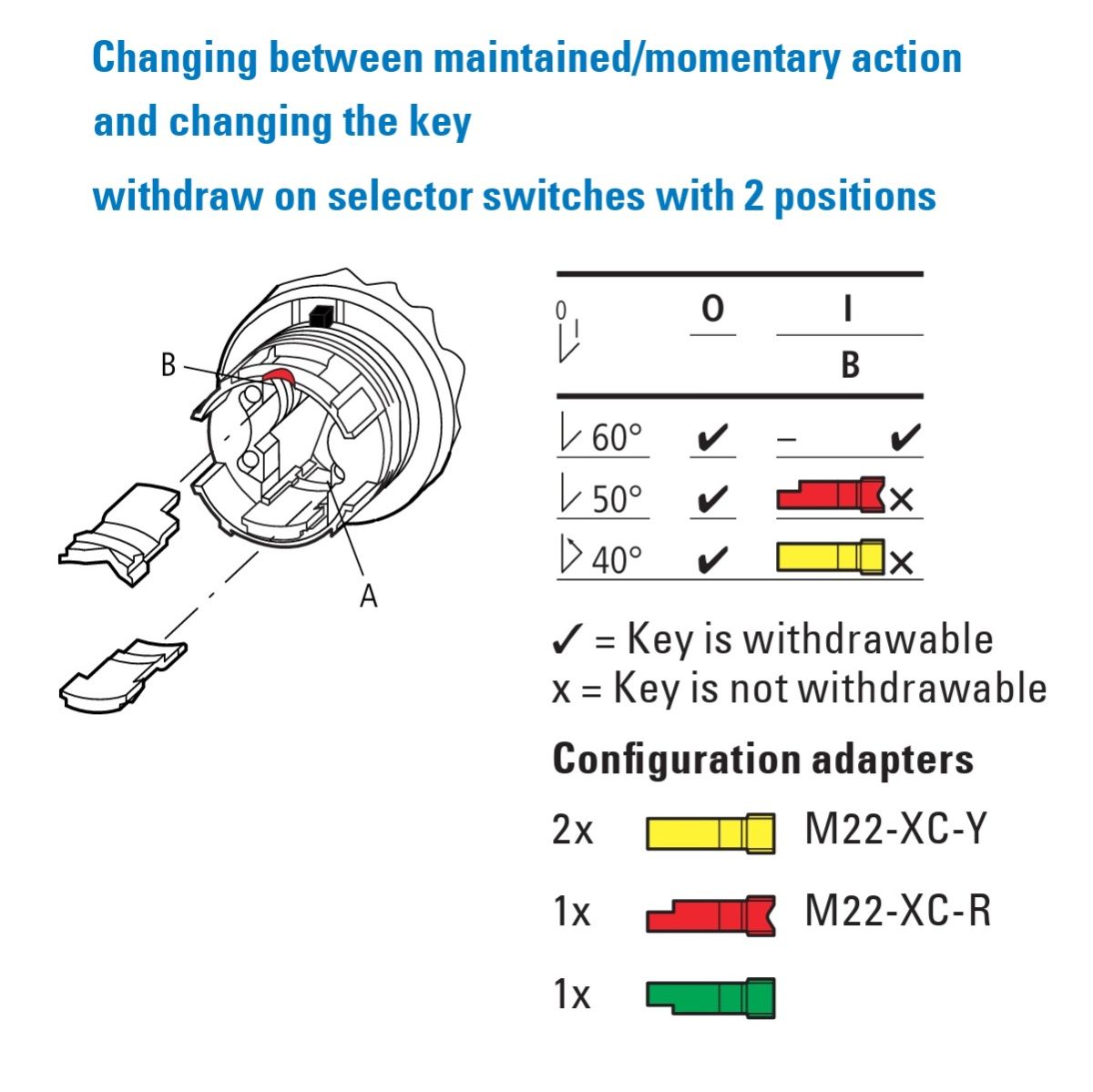

With the optional M22 coding set (216406 M22-XC-R), you can determine the key removal positions from the actuator. The standard setting, without modifications, allows the key to be removed from both positions.
The actuator has two fixed positions, 1 and 0, when operated. This behavior can also be changed by inserting the yellow coding pin (216407 M22-XC-Y). Doing so will cause the key to spring back to the 0 position.
Component features:
- Key type: MS-1 (these can also be ordered separately as spares)
- Number of positions: 2
- Key removable in the 0 position: YES
- Key removable in the 1 position: YES
- Spring-return: NO
- Suitable for lighting: NO
- Protection rating: IP66
- Button frame: Titanium-colored
- Connection to SmartWire-DT: Yes, with SWD-RMQ connections
- Front dimensions: 29.7mm outer diameter
- Standards: IEC / EN 60947, VDE 0660
- EATON Moeller part number: 216887
- EATON Moeller part name: M22-WRS
- NOTE: Don't forget to order the button adapter, our part number 2667!
