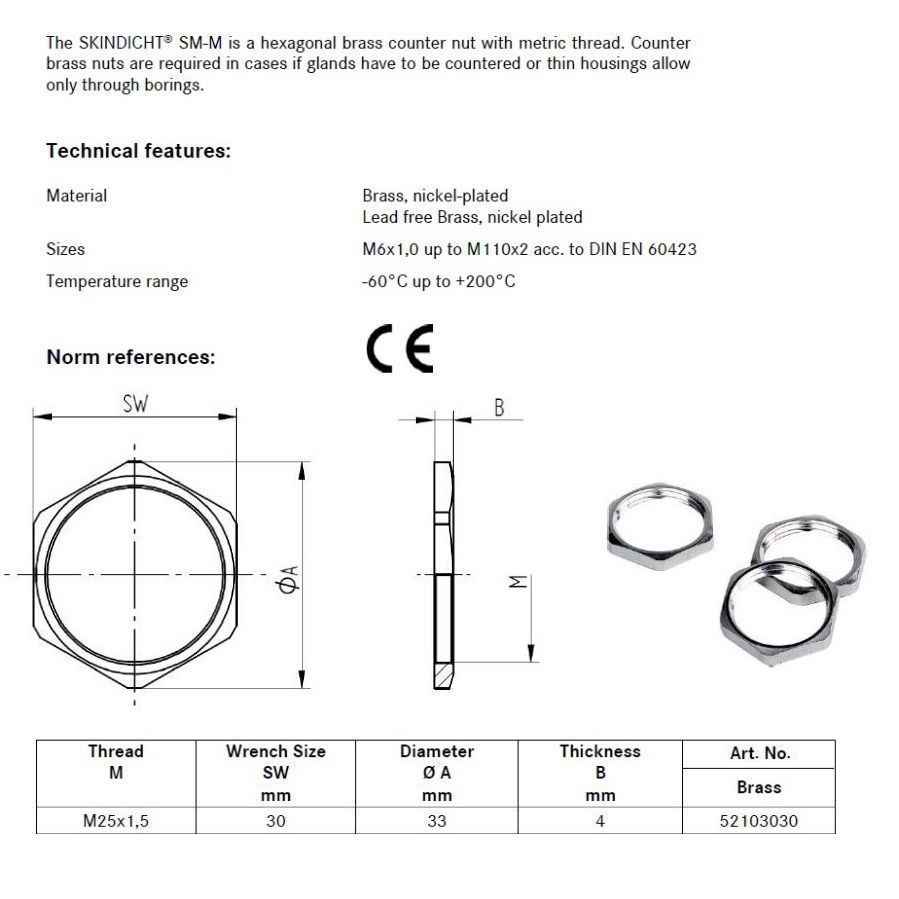

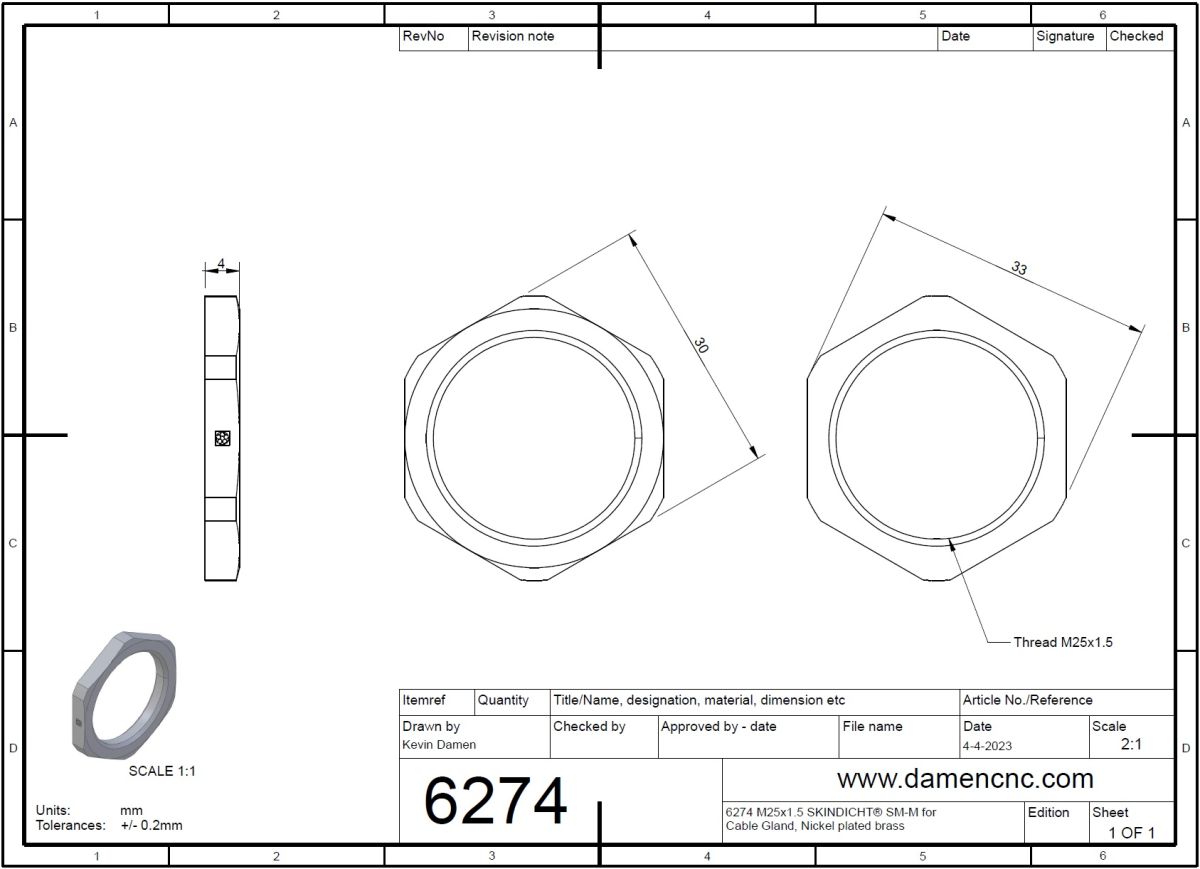

M25x1.5 SKINDICHT® SM-M for Cable Gland, Nickel plated brass

SKINDICHT® SM-M, metric counter nuts for conduit openings on thin-walled enclosures. These are also often used in EMC applications, because they are electrically conductive, which is not the case with a plastic counter nut. Because the material (nickel-plated brass) is stronger than plastic, these nuts are also a lot thinner than the plastic variants. This M25x1.5 variant in brass is 4 mm thick, in plastic these are 5.1mm thick.

Component features:

• Thread: M25 x 1.5
• Wrench size: 30
• Material: nickel plated brass
• Thickness: 4 mm
• Easy to install
• UV resistant
• Temperature resistant
• Oil resistant
• High chemical resistance
• Operating Temperature Static: -60°C to +200°C
• Operating Temperature Range Dynamic: -60°C to +200°C
• Metric screw thread according to DIN EN 60423
