M32x1.5 SKINDICHT® SM-M for Cable Gland, Nickel plated brass

Article number 6275
Lapp
In Stock In Stock
General conditions
Quantity 10 - > 10,00 % on the retail price of 0,88 0,79
Quantity 50 - > 20,00 % on the retail price of 0,88 0,70
Quantity 100 - > 40,00 % on the retail price of 0,88 0,53
EAN-number 4044773332360
0,88 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

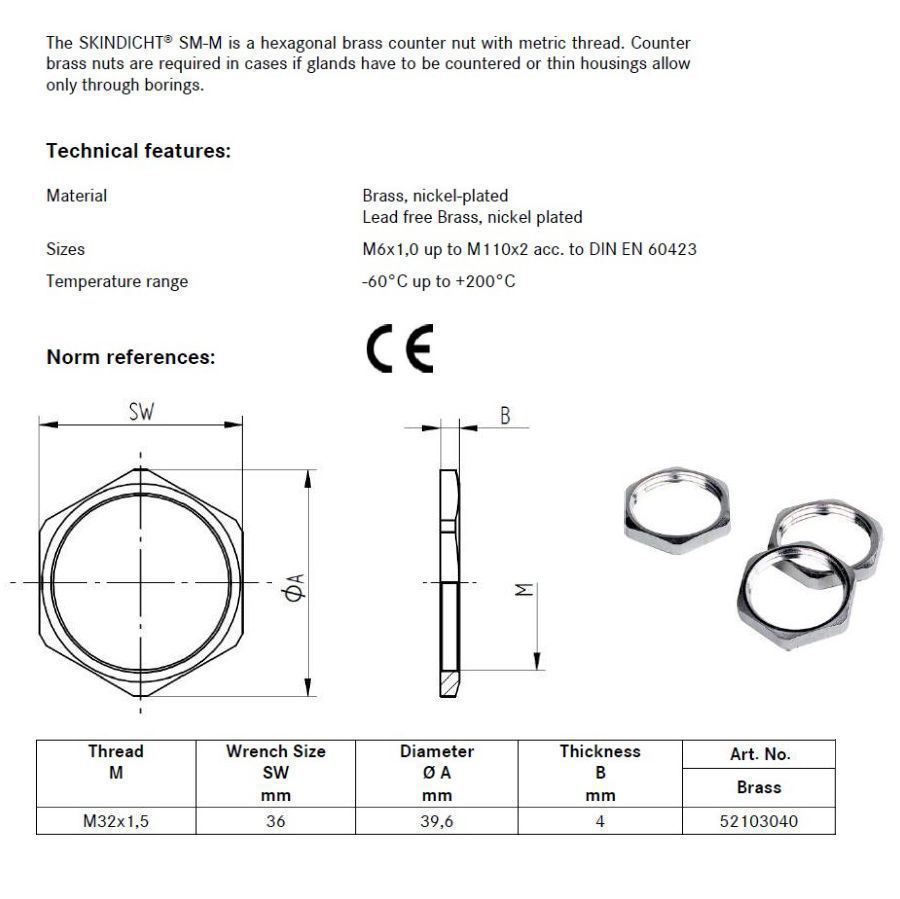

SKINDICHT® SM-M, metric counter nuts for conduit openings on thin-walled enclosures. These are also often used in EMC applications, because they are electrically conductive, which is not the case with a plastic counter nut. Because the material (nickel-plated brass) is stronger than plastic, these nuts are also a lot thinner than the plastic variants. This M32x1.5 variant in brass is 4 mm thick, in plastic these are 7mm thick.

Component features:

  • Thread: M32 x 1.5
  • Wrench size: 36
  • Material: nickel plated brass
  • Thickness: 4 mm
  • Easy to install
  • UV resistant
  • Temperature resistant
  • Oil resistant
  • High chemical resistance
  • Operating Temperature Static: -60°C to +200°C
  • Operating Temperature Range Dynamic: -60°C to +200°C
  • Metric screw thread according to DIN EN 60423

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

6275-1_M32x1.5_SKINDICHT®_SM-M_for_Cable_Gland,_Nickel_plated_brass_STEP214.stp 6275-1 M32x1.5 SKINDICHT® SM-M for Cable Gland, Nickel plated brass STEP214
6275-2_M32x1.5_SKINDICHT®_SM-M_for_Cable_Gland,_Nickel_plated_brass_STEP242.stp 6275-2 M32x1.5 SKINDICHT® SM-M for Cable Gland, Nickel plated brass STEP242
6275-3_M32x1.5_SKINDICHT®_SM-M_for_Cable_Gland,_Nickel_plated_brass_2D_Dimensions.pdf 6275-3 M32x1.5 SKINDICHT® SM-M for Cable Gland, Nickel plated brass 2D Dimensions
6275-4_M32x1.5_SKINDICHT®_SM-M_for_Cable_Gland,_Nickel_plated_brass_Datasheet_UK.pdf 6275-4_M32x1.5_SKINDICHT®_SM-M_for_Cable_Gland,_Nickel_plated_brass_Datasheet_UK
