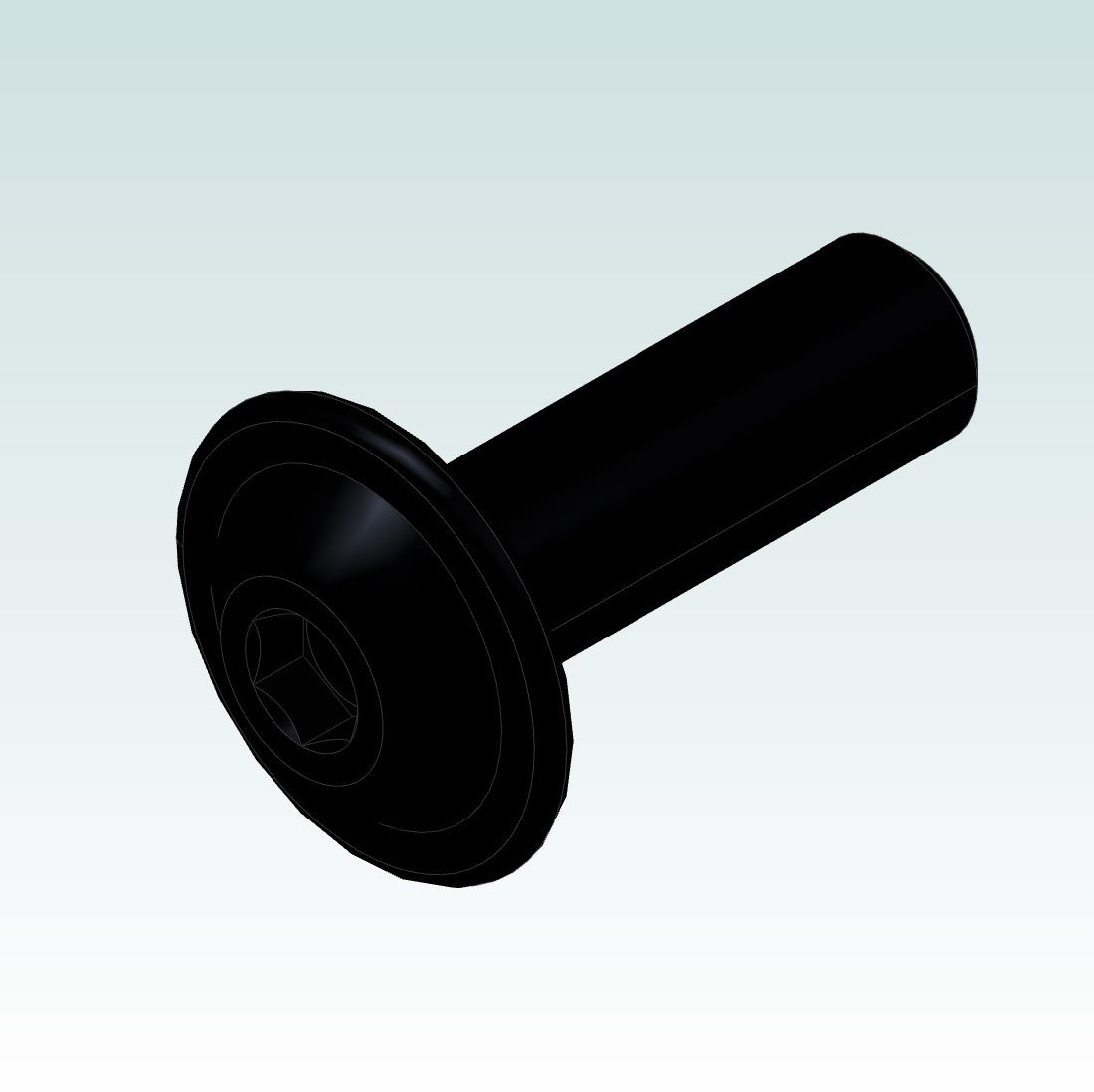

M5x16 Bolt ISO 7380-2 with Flange
Article number 1356
In Stock
| General conditions | ||
| Quantity 200 - > | 50,00 % on the retail price of €0,24 | €0,12 |
EAN-number 8715492067722
€0,24
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
M5x16 ISO 7380-2 Bolt. With hex (Allen key) head. Common in electronic devices, and other small devices.
Component features:
- Type: m5x16
- Material: Steel, class 10.9,
- ISO: 7380-2
- Thread type: Metric
- Surface treatment: none
- Head shape: convex cylinder
- Drive: Hex (allen key)
- Metric: M5
- Head height: 2.7 mm
- Head diameter: 11.8 mm
- Hexagon socket head bit size 3mm
- Thread length: 16 mm
- Packing unit for discount: 200 pieces (box)
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1356-1 M5x16 Bolt ISO 7380-2 with Flange STEP214 |
 |

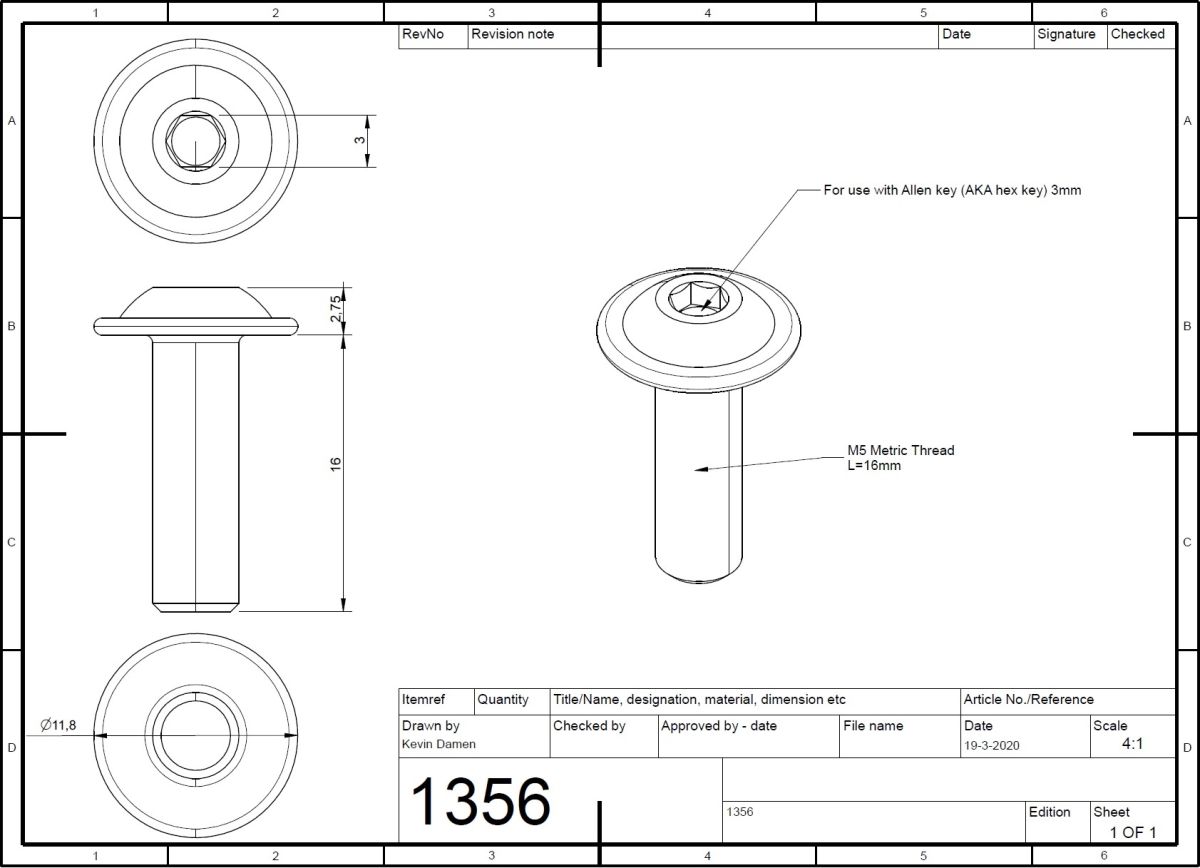

1356-2 M5x16 Bolt ISO 7380-2 with Flange 2D Dimensions |
