Toroidal transformer 2x115V/2x115V 2000VA therm. prot. - N7670PT
Not in stock
Keep me updated
Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.
| General conditions | ||
| Quantity 3 - > | 5,00 % on the retail price of €330,00 | €313,50 |
| Quantity 5 - > | 10,00 % on the retail price of €330,00 | €297,00 |

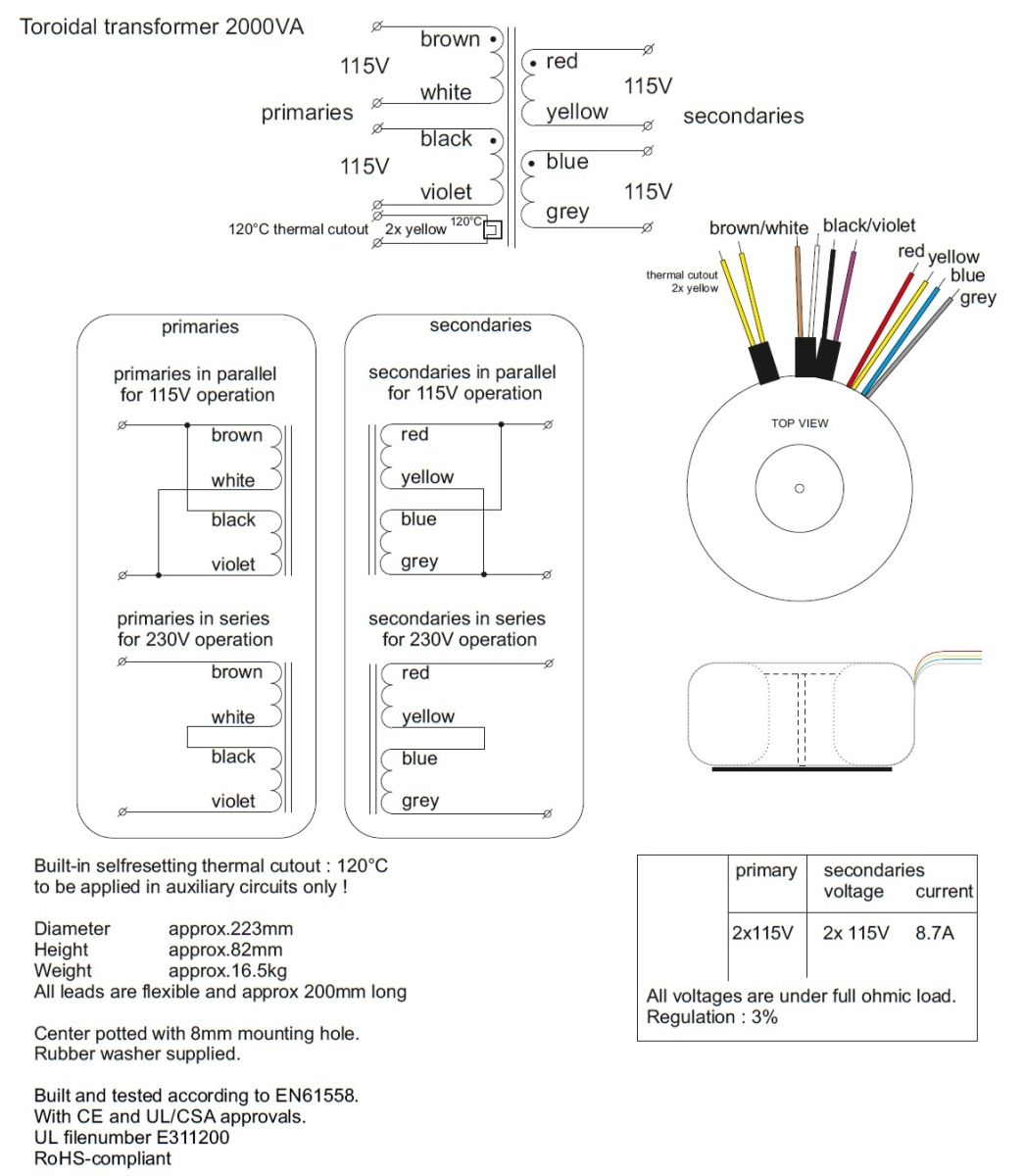

We use this toroidal transformer to make isolation power supplies. This can be handy in applications like EPS cutting, where you do not want to get electrocuted, when touching the cutting wire by accident. Another common application is to convert from 110VAC to 230VAC or from 230VAC to 110VAC. Since the transformer has a double coil on the primary and secondary side, it is possible to make many different setups, with just 1 transformer. This transformer also has an internal temperature switch. A normally closed contact, which switches to the open position if the transformer becomes too hot. You can then link this back to, for example, a PLC or CNC control, or a safety relay, to switch off the system.
Component features:
- Power: 2000 VA
- Primary: 2x 115V / 230 V (suitable for 115V or 230V mains power)
- Secondary: 2x 115 V – 8.7 A
- Diameter: 223mm
- Height: 85mm
- Integrated Thermal Cut Switch (2 yellow leads, it kicks out at 120 degrees celsius)
