Toroidal transformer 2x115V/4x42V 3000VA therm. prot. - RN2238PT

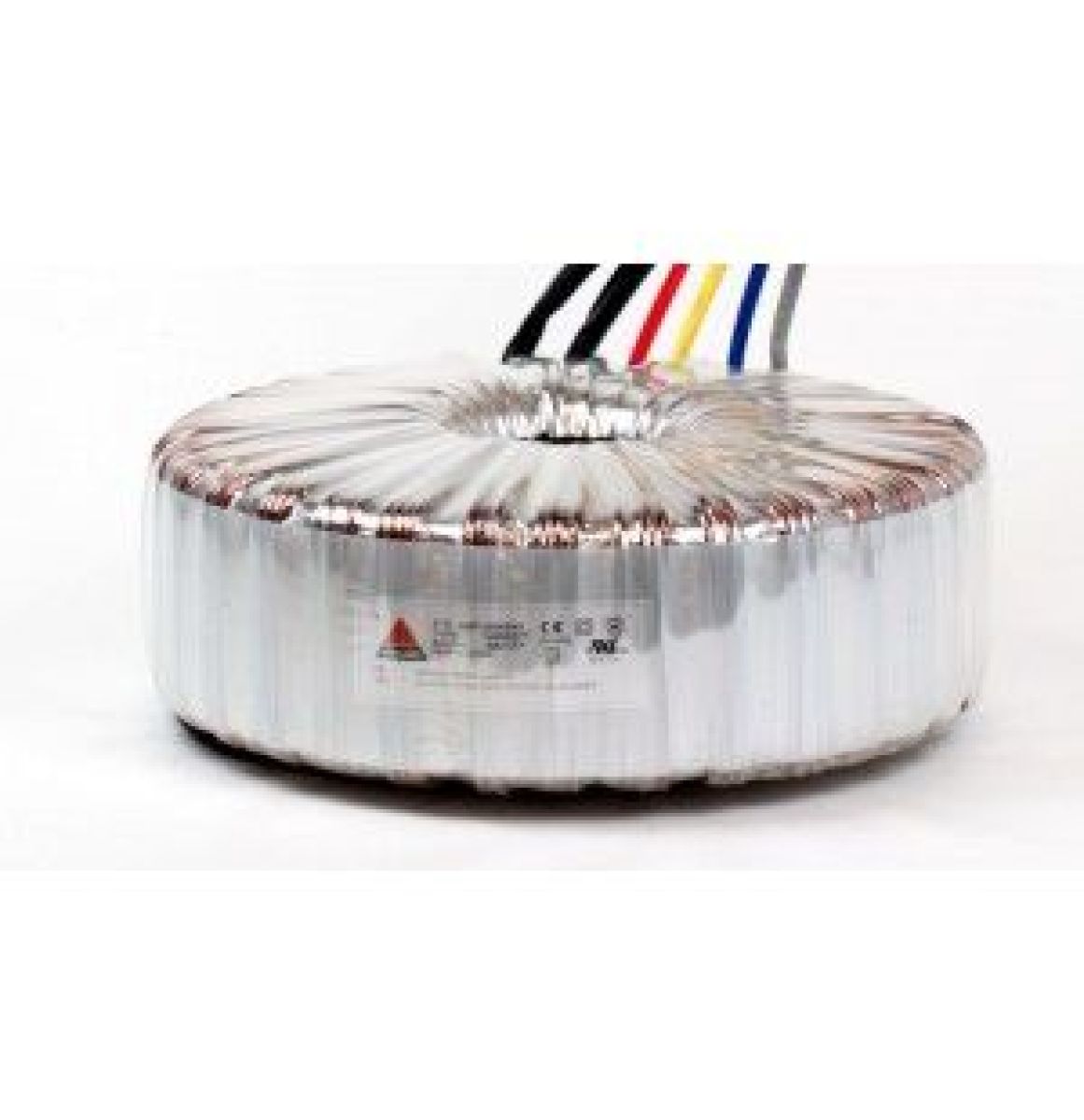

We use this toroidal transformer to make isolation power supplies. This can be handy in applications like EPS cutting, where you do not want to get electrocuted, when touching the cutting wire by accident. The transformer has a double coil on the primary and secondary side, it is possible to make many different setups, with just 1 transformer. This transformer also has an internal temperature switch. A normally closed contact, which switches to the open position if the transformer becomes too hot. You can then link this back to, for example, a PLC or CNC control, or a safety relay, to switch off the system.

Component features:

• Power: 3000 VA
• Primary: 2x 115V / 230 V (suitable for 115V or 230V mains power)
• Secondary: 4x 42V
• 4 groups parallel connection 42V / 3000VA (see connection diagram)
• 2 groups in series 2 in parallel 84V / 3000VA (see connection diagram)
• 3 groups series connection 126V / 2250VA (see connection diagram)
• 4 groups series connection 168V / 3000VA (see connection diagram)
• Diameter: 250mm
• Height: 92mm
• Integrated Thermal Cut Switch (2 yellow leads, it kicks out at 120 degrees celsius)
