AC Servo Motor 400W with Brake ECMA-C20604SS
Article number 1583
Delta
Item discontinued
With or Without Brake
With Brake
Servo Power
400W

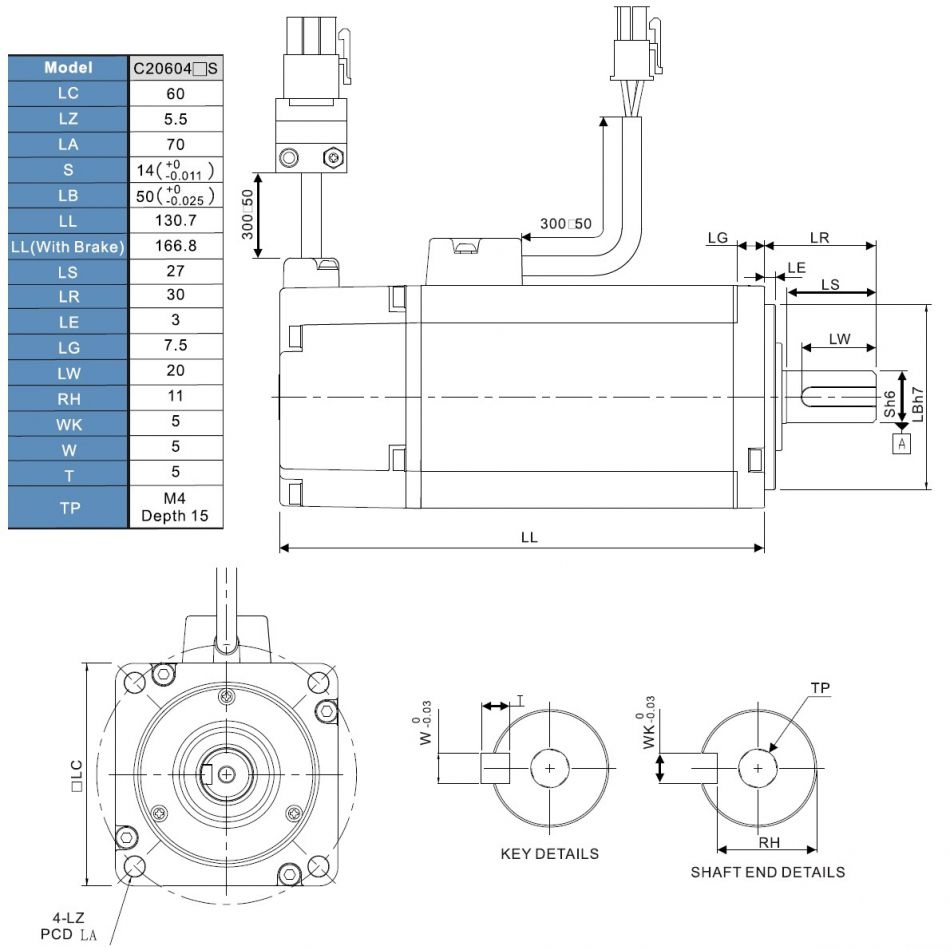

Frame Size
60x60mm
Shaft Diameter
14mm h6

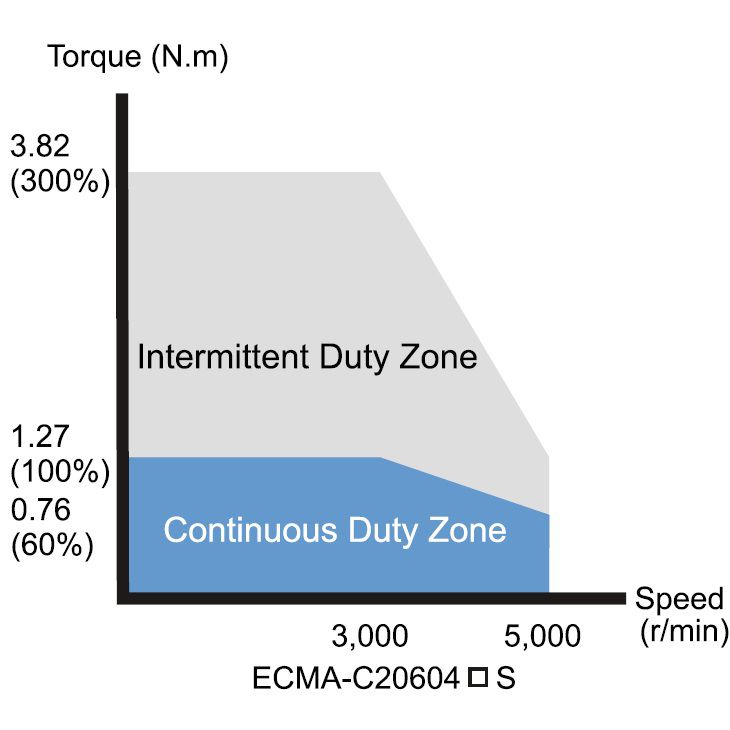

Rated Speed
3000RPM(nN)
Maximum Speed
5000RPM(max)
Rated Torque
1.27 Nm
Rotor Inertia
0.30 x 10-4kg-m2
Description
Attachments
Replaced by product
We no longer sell this product. It has been replaced by its successor, the Delta ECM-B3M servo motors, which offer increased performance. Despite this increased performance, the new ECM-B3M servo motors are much more compact. The flange sizes and shaft diameters have remained the same, which makes switching from ECMA motors to ECM-B3M motors possible without any problems. Please check the "Replaced by product" tab for its successors.
Component features:
- Frame size: 60 x 60 mm
- Shaft diameter: 14 mm
- Rated output power: 400 W
- Speed range: 0 - 3000 rpm
- 17-bit Rotary Optical Encoder
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
1583 400W ECMA-C20604RS |
 |
DELTA ASDA-B2 Catalogue English 2019 |
|
DELTA ASDA-B2 User Manual English 2018 |
AC Servo Motor 400W with Brake ECM-B3M-C20604SS1 (24-bit INC encoder)
In Stock
In Stock
€476,00
Vat. excluded
Price per piece
AC Servo Motor 400W with Brake ECM-B3M-CA0604SS1 (24-bit ABS encoder)
Not in stock
Not in stock
€637,00
Vat. excluded
Price per piece
