AMB (Kress) 1050 FME-P DI Digital Interface (230VAC)

Article number 5111
AMB (Kress)
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of 390,82 371,28
Quantity 10 - > 10,00 % on the retail price of 390,82 351,74
Quantity 25 - > 15,00 % on the retail price of 390,82 332,20
EAN-number 4251610700170
390,82 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

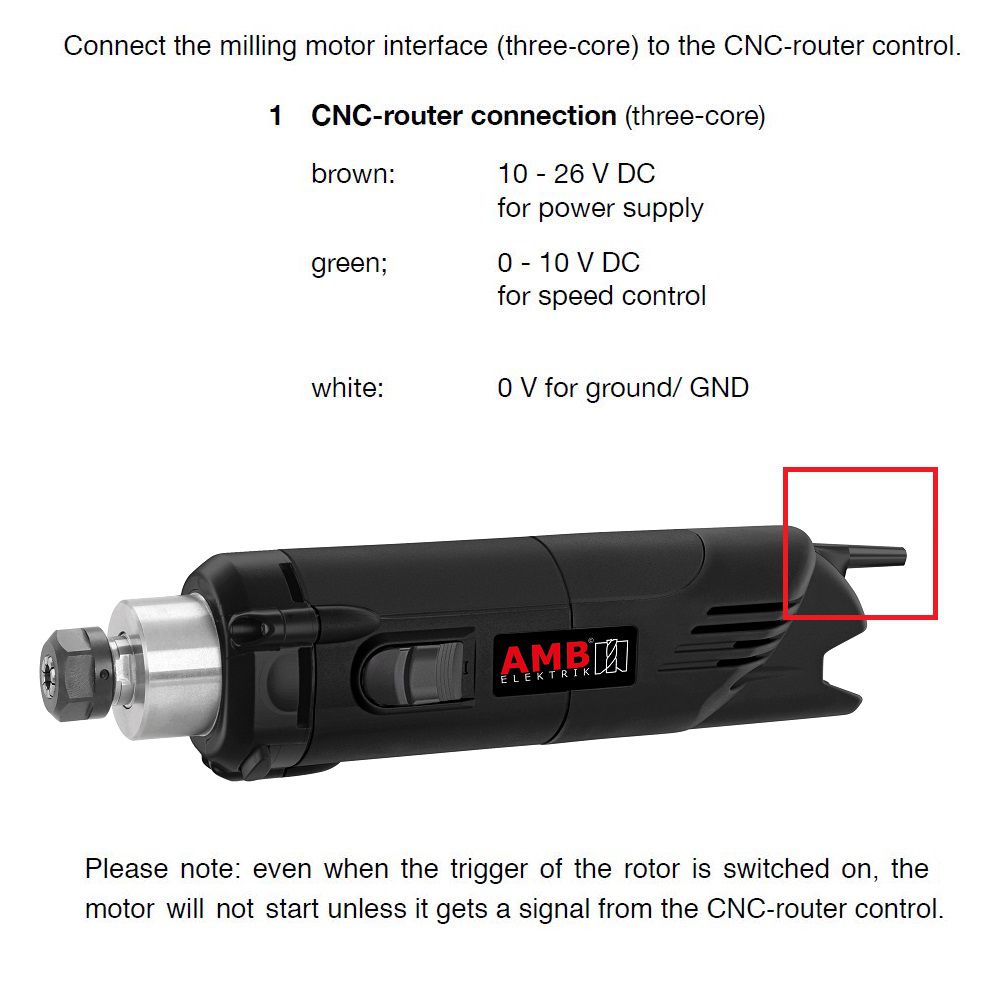

Advanced AMB milling motor with digital CNC-router interface. In contrast to other AMB/Kress milling motors, this motor can be controlled stepless by your CNC-controller using a 0-10V signal. Like the 1050 FME-P, it also has an ER16 collet system with balanced clamping nut, which results in 3 x better repeatability of concentricity compared to regular AMB/Kress collet system.

Component features:
  • Integrated digital interface for stepless speed control by your CNC-controller
  • MAXX-Power 1050 Watt motor
  • Effective power: 600W
  • Speed range: 3.500 - 25.000 rpm
  • Motor weight: 1,7 kg
  • Slim and ergonomically-designed housing
  • Full wave electronics for constant performance and speed
  • Soft start-up and starting current limitation
  • Special winding protection for the motor against dust and material particles
  • Motor flange made of steel with double bearing for higher milling performance (43mm)
  • Spindle lock for easy milling tool changes
  • Electronic overload protection prevents overheat of the motor
  • Carbon brush switch-off to protect the motor
  • 3 x better repeatability of concentricity
  • ground cone: guaranteed concentricity in the cone < 0,01 mm

Scope of delivery:

  • Milling motor 1050 FME-P DI Digital Interface (230VAC)
  • Precision collet chuck ER16 - Ø 8 mm
  • Balanced ER16 collet nut
  • User manual
  • Mains cable 4meter, quick action lock system
  • Test Certificate with the measured run-out accuracy




Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5111-1_AMB_(Kress)_1050_FME-P_DI_Digital_Interface_(230VAC)_STEP214.stp 5111-1 AMB (Kress) 1050 FME-P DI Digital Interface (230VAC) STEP214
5111-2_AMB_(Kress)_1050_FME-P_DI_Digital_Interface_(230VAC)_STEP242.stp 5111-2 AMB (Kress) 1050 FME-P DI Digital Interface (230VAC) STEP242
5111-3_AMB_(Kress)_1050_FME-P_DI_Digital_Interface_(230VAC)_2D_Dimensions.pdf 5111-3 AMB (Kress) 1050 FME-P DI Digital Interface (230VAC) 2D Dimensions
AMB_Operating_Instructions_Milling_and_Grinding_Motor.pdf AMB Operating Instructions Milling and Grinding Motor
AMB_Gebruiksaanwijzing_Frees-_en_slijpmotor.pdf AMB Gebruiksaanwijzing Frees- en slijpmotor
