AMB (Kress) 1400 FME-P (230VAC)

Article number 5338
AMB (Kress)
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of 368,74 350,30
Quantity 10 - > 10,00 % on the retail price of 368,74 331,87
Quantity 25 - > 15,00 % on the retail price of 368,74 313,43
EAN-number 4251610711084
368,74 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products
Advanced extra powerful AMB Milling motor (approx. 35-40% more power over the 1050-serie). This spindle pushes power reserve very fast and aggresive so there is nearly no power gap under load. Further, this motor has an ER16 collet system with balanced clamping nut, which results in 3 x better repeatability of concentricity compared to regular AMB/Kress collet system. Guaranteed concentricity in the cone < 0,01 mm.

Component features:
  • MAXX-Power 1400 Watt motor
  • Effective power: 750W
  • Speed range: 5.000 - 25.000 rpm
  • Motor weight: 1,8 kg
  • Slim and ergonomically-designed housing
  • Precise tachometer readjustment for constant power and speed stability
  • Soft start-up and overtemperature protection
  • Special winding protection for the motor against dust and material particles
  • Motor flange made of steel with double bearing for higher milling performance (43mm)
  • Spindle lock for easy milling tool changes
  • Electronic overload protection prevents overheat of the motor
  • Carbon brush switch-off to protect the motor
  • 3 x better repeatability of concentricity
  • ground cone: guaranteed concentricity in the cone < 0,01 mm

Scope of delivery:

  • Milling motor 1400 FME-P (230VAC)
  • Precision collet chuck ER16 - Ø 8 mm
  • Balanced ER16 collet nut
  • User manual
  • Mains cable 4meter, quick action lock system
  • Test Certificate with the measured run-out accuracy

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5338-1_AMB_(Kress)_1400_FME-P_(230VAC)_STEP214.stp 5338-1 AMB (Kress) 1400 FME-P (230VAC) STEP214
5338-2_AMB_(Kress)_1400_FME-P_(230VAC)_STEP242.stp 5338-2 AMB (Kress) 1400 FME-P (230VAC) STEP242

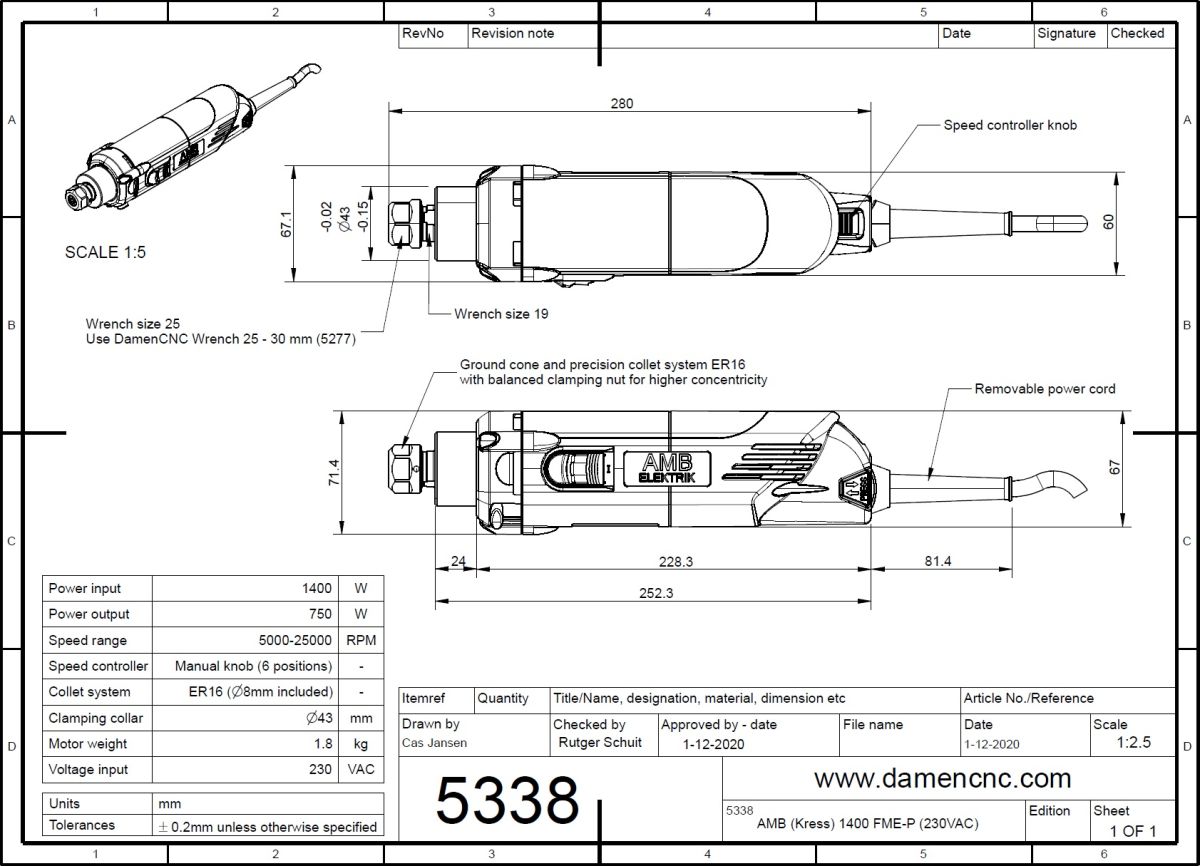

5338-3_AMB_(Kress)_1400_FME-P_(230VAC)_2D_Dimensions.pdf 5338-3 AMB (Kress) 1400 FME-P (230VAC) 2D Dimensions
AMB_Operating_Instructions_Milling_and_Grinding_Motor.pdf AMB Operating Instructions Milling and Grinding Motor
AMB_Gebruiksaanwijzing_Frees-_en_slijpmotor.pdf AMB Gebruiksaanwijzing Frees- en slijpmotor
