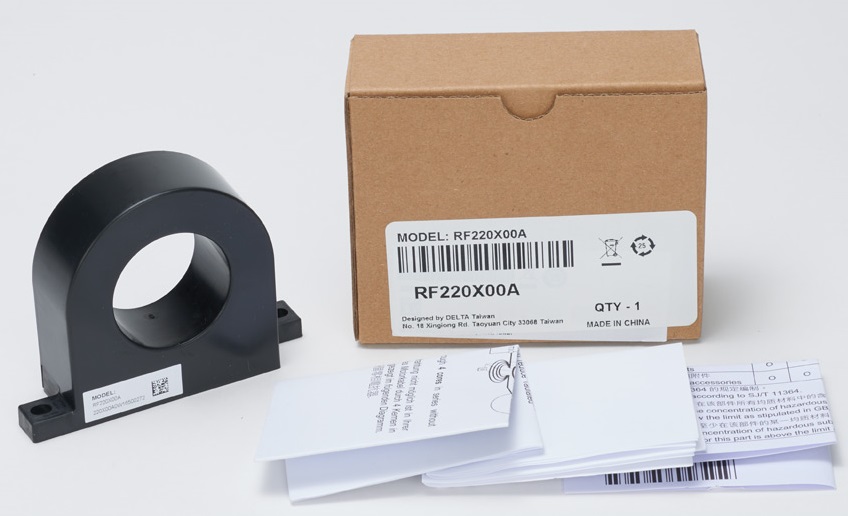

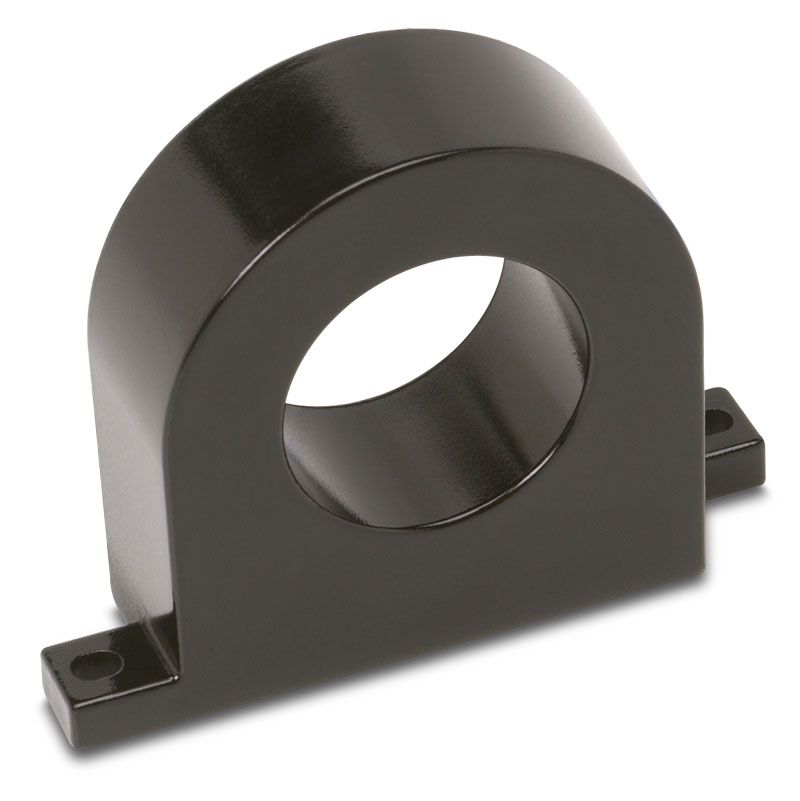

Delta Zero Phase Reactor (RF220X00A)

Article number 4935
Delta
In Stock In Stock
General conditions
Numbers 3 - > 5,00 % on the retail price of € 25,99 € 24,69
Numbers 5 - > 10,00 % on the retail price of € 25,99 € 23,39
25,99 Excluded VAT Price per piece
Description
Attachments
Discount

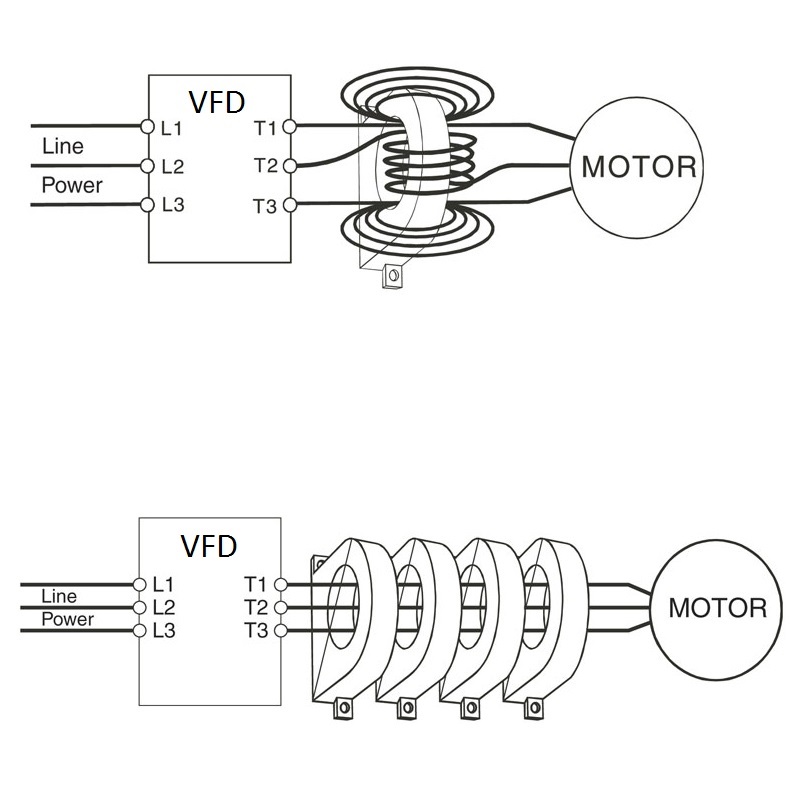

Zero phase reactors, (aka RF noise filters) help reduce radiated noise from the inverter wiring. The wiring must go through the opening to reduce the RF component of the electrical noise. Loop the wires three times (four turns) to attain the full RF filtering effect. For larger wire sizes, place multiple zero-phase reactors (up to four) side by side for a greater filtering effect. These are effective for noise reduction on both the input and output sides of the inverter. Attenuation quality is good in a wide range from AM band to 10 Mhz.

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

4935-1_Delta_Zero_Phase_Reactor_Mounting_Instructions.pdf 4935-1 Delta Zero Phase Reactor Mounting Instructions
4935-2_Zero_Phase_Reactor_RF220X00A_STEP214.step 4935-2 Zero Phase Reactor RF220X00A STEP214
