EMC Shield Plate for Delta VFD-E (Frame A-B-C)

Article number 5209
DamenCNC
In Stock In Stock
General conditions
Quantity 5 - > 5,00 % on the retail price of €5,00 €4,75
Quantity 10 - > 10,00 % on the retail price of €5,00 €4,50
Quantity 100 - > 30,00 % on the retail price of €5,00 €3,50
€5,00 Excluding VAT Price per piece
Add to cart
Description
Attachments
Discount
Compatible Products

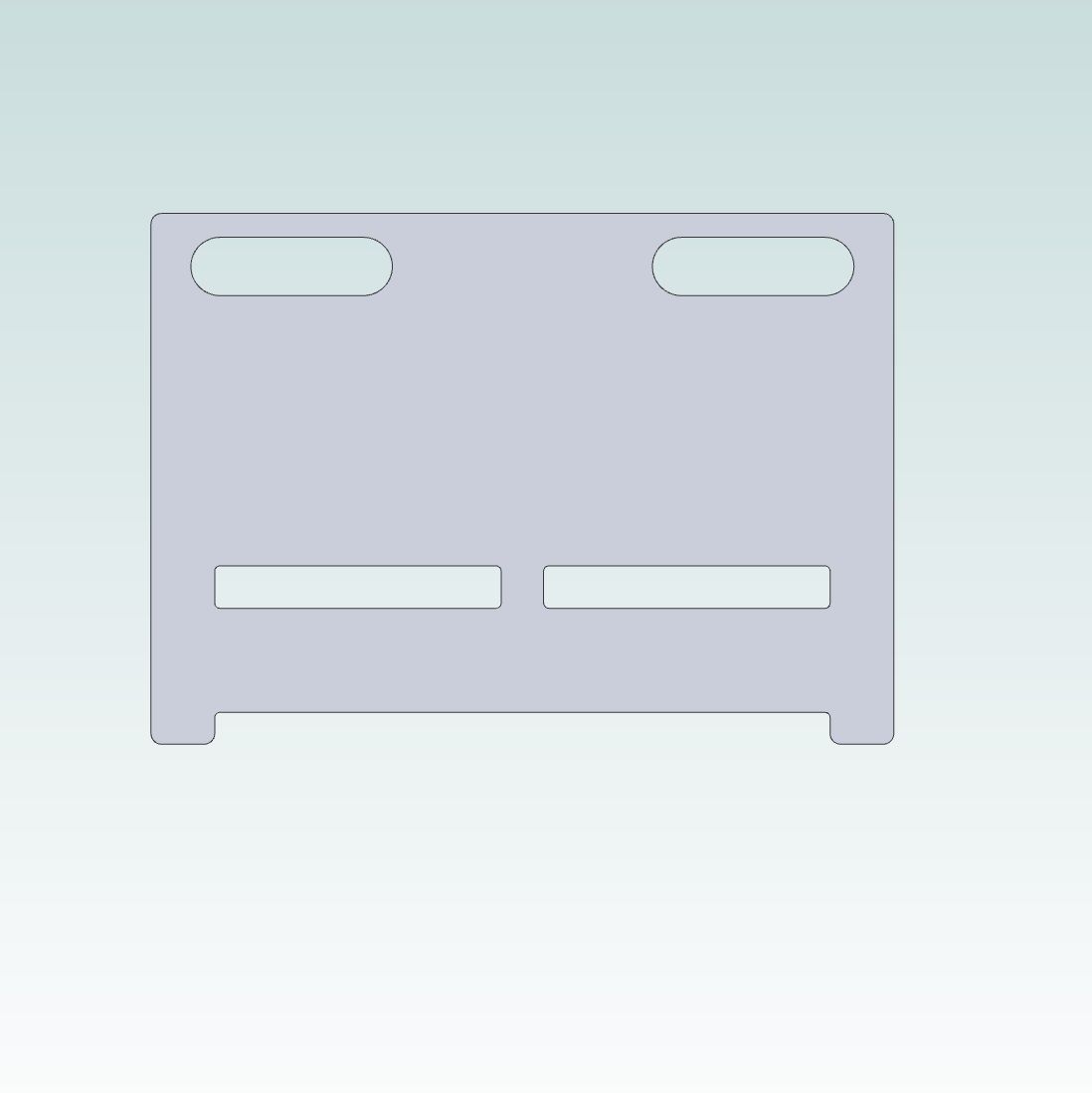

Metal shielding plate that is used for attaching the shielding of AC-Motor cables properly. This plate has been designed for the VFD-E series of frequency controllers from Delta, its compatible with the frame size A B and C. We often use this in machines that have long cables, and where perfect EMC shielding is essential.

Component features:

  • Material: Aluminium
  • Compatible with VFD004E21T 0.4kW
  • Compatible with VFD004E21P 0.4kW
  • Compatible with VFD007E21T 0.75kW
  • Compatible with VFD015E21A 1.5kW
  • Compatible with VFD022E21A 2.2kW
  • Compatible with VFD007E43T 0.7kW
  • Compatible with VFD015E43T 1.5kW
  • Compatible with VFD022E43T 2.2kW
  • Compatible with VFD037E43T 3.7kW
  • Compatible with VFD037EL43T 3.7kW
  • Compatible with VFD055E43A 5.5kW
  • Compatible with VFD075E43A 7.5kW
  • Compatible with VFD110E43A 11.0kW

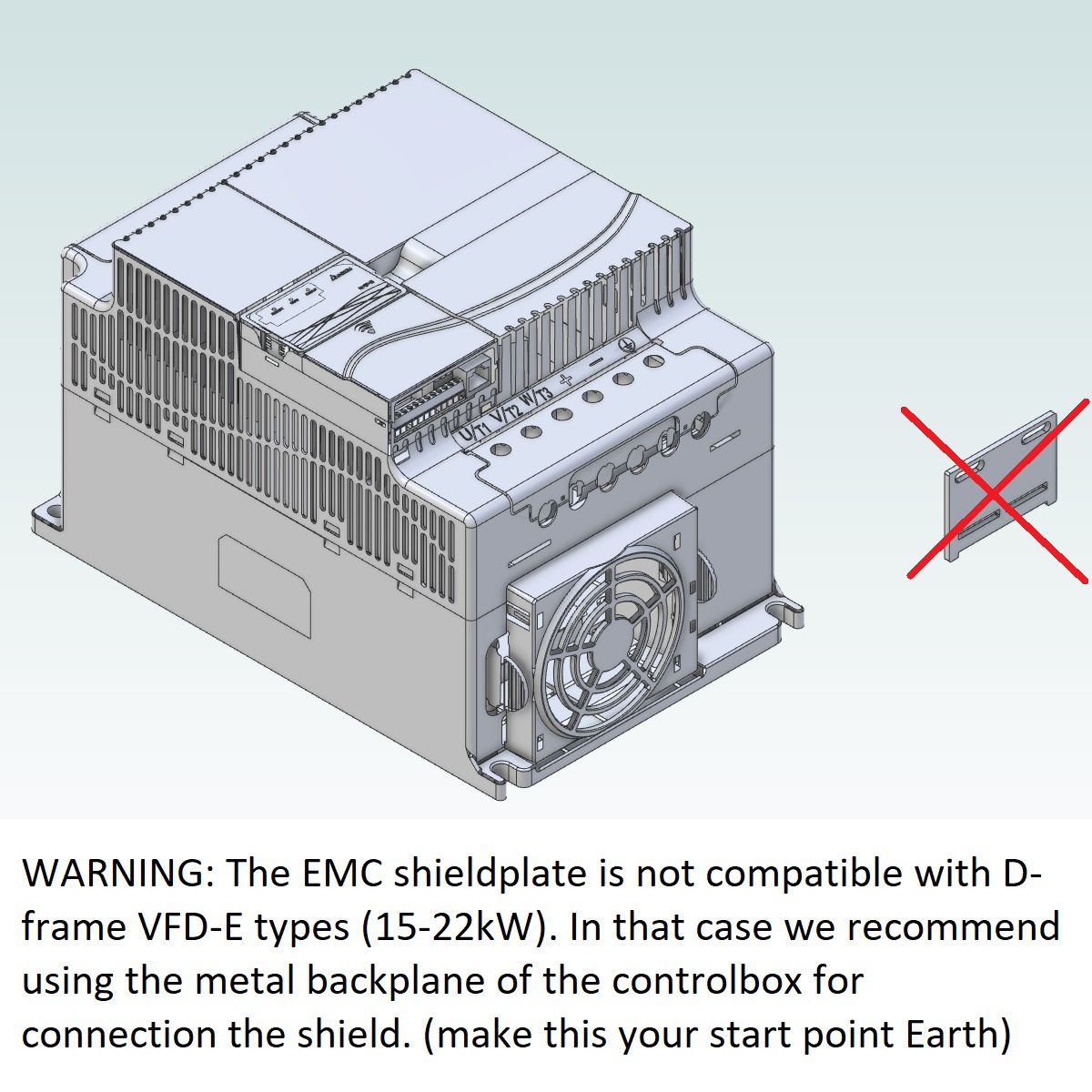

  • WARNING: not compatible with D-frame models (15 and 22kW)
  • Designed for use with SK8(2703) and SK14(3700) and SK20(3701) shield clamps.

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5209-1_EMC_Shield_Plate_for_Delta_VFD-E_(Frame_A-B-C)_STEP214.stp 5209-1 EMC Shield Plate for Delta VFD-E (Frame A-B-C) STEP214
5209-2_EMC_Shield_Plate_for_Delta_VFD-E_(Frame_A-B-C)_V1.0.pdf 5209-2 EMC Shield Plate for Delta VFD-E (Frame A-B-C) V1.0
