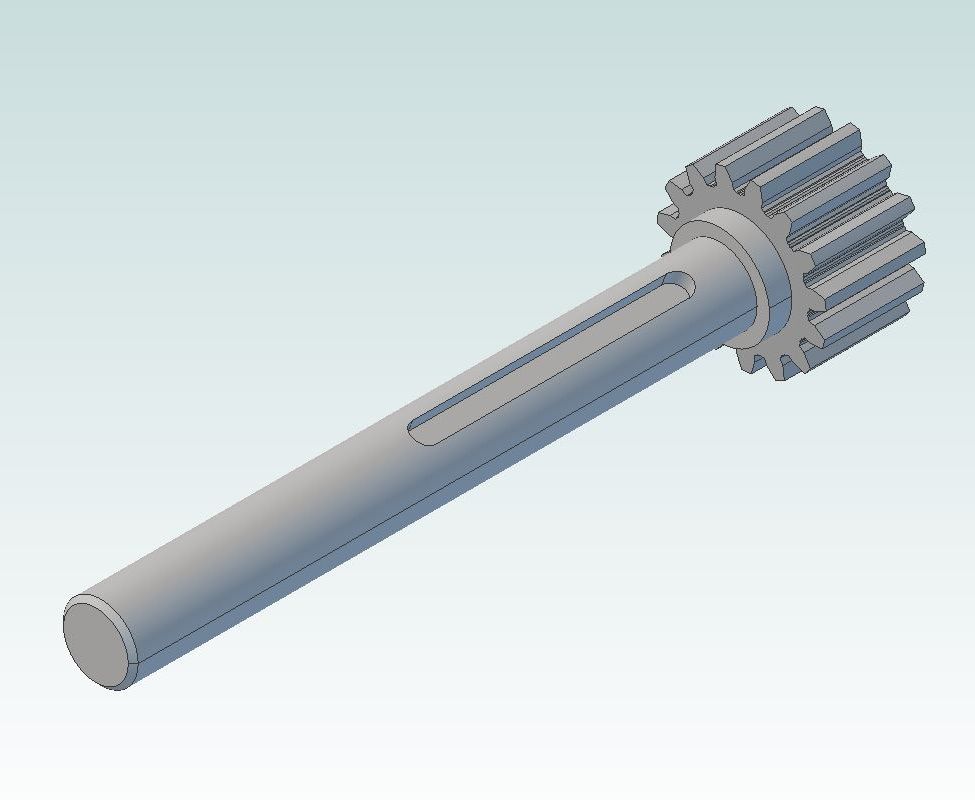

Geared Shaft for DCNC-RAG (Q6 M2 Z=15 D=15 L=150)

Article number 5088
DamenCNC
In Stock In Stock
General conditions
Quantity 3 - > 5,00 % on the retail price of €189,00 €179,55
Quantity 5 - > 10,00 % on the retail price of €189,00 €170,10
Quantity 10 - > 15,00 % on the retail price of €189,00 €160,65
Quantity 20 - > 20,00 % on the retail price of €189,00 €151,20
Quantity 50 - > 25,00 % on the retail price of €189,00 €141,75
€189,00 Vat. excluded Price per piece
Add to cart
Description
Attachments
Discount
Compatible Products
For our DCNC-RAG-F70 Right Angle Gearboxes we designed a geared shaft for driving a Rack&Pinion system. For mounting NEMA34 Stepper Motors we have a different flange available. In our applications we always use this geared shaft with the high quality Q6 racks made by Gambini, but it can be used for all qualities Module 2 (straight) racks.

Component features:
  • Module: 2
  • Number of teeth: 15
  • Shaft diameter: 15mm
  • Shaft length: 150mm
  • Material: C45
  • Quality: Q6
  • Type of finish: Hardened and Ground
  • Weight: 290 grams

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5088_Geared_Shaft_for_DCNC-RAG_Module_2_Q6_Z=15_D=15_L=150.stp 5088 Geared Shaft for DCNC-RAG Module 2 Q6 Z=15 D=15 L=150
