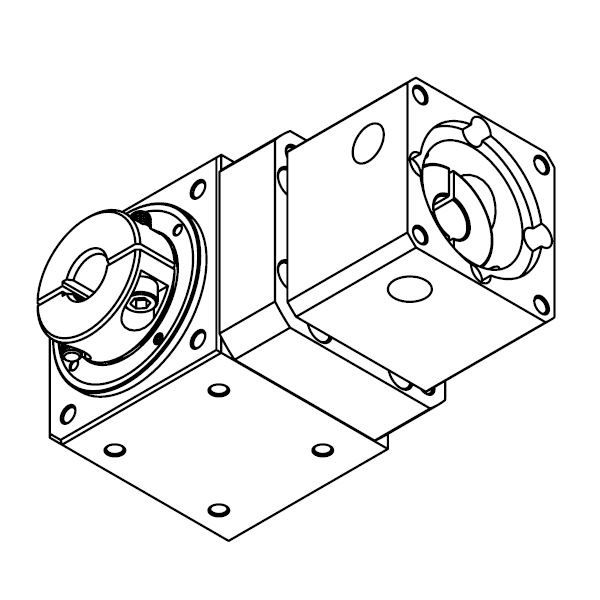

DCNC-RAG-F70 I=10 Right Angle Gearbox (60x60mm)

Article number 5084
DamenCNC
In Stock In Stock
General conditions
Numbers 3 - > 5,00 % on the retail price of € 679,99 € 645,99
Numbers 5 - > 10,00 % on the retail price of € 679,99 € 611,99
679,99 Excluded VAT Price per piece
Description
Attachments
Discount
Compatible Products
Right Angle Gearbox that is produced especially for DamenCNC. We use this gearbox in our advanced Rack&Pinion Drive. The input shaft has a 14.00mm bore which makes it compatible with our 60x60mm Servo Motors and our NEMA34 Stepper Motors. Note that for NEMA34 and 80x80mm an optional flange is required.

Component features:
  • Compatible with our 60x60mm Servo Motors (Delta or others with 14mm shaft)
  • OPTIONAL: Flange for 80x80mm Servo Motors (Delta ECMA-C20804R7) and Flange for NEMA34 Stepper Motors.
  • Output Flange is 70x70mm with 15mm bore
  • Reduction Ratio: 1:10
  • Other Reduction Ratios available on request
  • Low Backlash: < 5 Arcmin
  • Weight: 2200 grams

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5084_DCNC-RAG-F70_I=10_Right_Angle_Gearbox.stp 5084 DCNC-RAG-F70 I=10 Right Angle Gearbox
