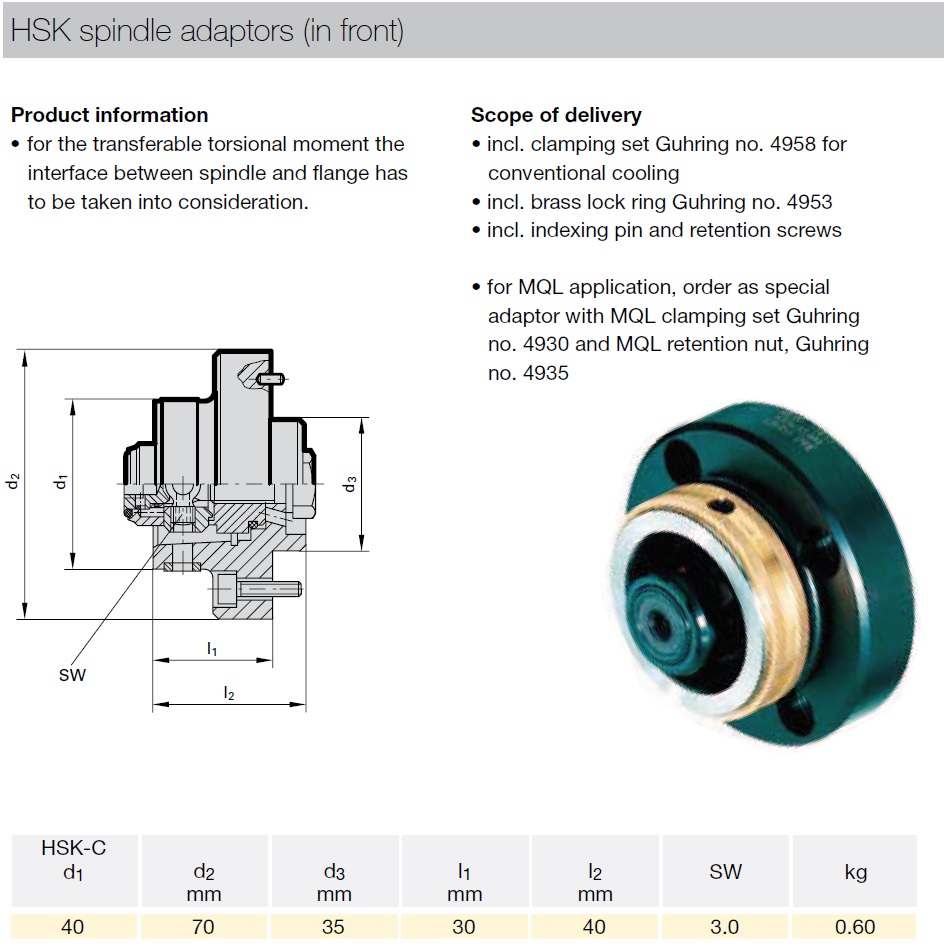

HSK spindle adaptors (in front) HSK40-C (04386 030000)
Article number 4517
Guhring
Not in stock
Keep me updated
Unfortunately, the product is currently sold out. Leave your details and you'll receive an e-mail when it's back in stock.
| General conditions | ||
| Quantity 5 - > | 5,00 % on the retail price of €425,00 | €403,75 |
| Quantity 10 - > | 10,00 % on the retail price of €425,00 | €382,50 |
| Quantity 20 - > | 20,00 % on the retail price of €425,00 | €340,00 |
EAN-number 4031093552899
€425,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Compatible Products
These adapters can be used in special applications to make your own grinding/milling spindle. Or sometimes its used in CNC-lathes for mounting stationary HSK tools. This particular type is suitable for taking HSK-40C type tools.
Component features:
- HSK spindle adaptor (front mounted)
- Size: HSK40-C
- Maximum Torque for setting 6Nm
- Maximum Holding force (axial direction): 12,0 kN
- Max torsion moment Mt: 170 Nm
- Max bending moment Mb: 130Nm
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
4517-1 HSK spindle adaptors (in front) HSK40-C (04386 030000) STEP214 |
|
4517-2 HSK spindle adaptors (in front) HSK40-C (04386 030000) STEP242 |
