Instead of soldering to the 50 pin CN1 connector on the Delta A3 Servo driver. This module has easy push in terminals making the wiring much faster. Not all 50 pins are accessible, but the 20 that are most often required are on this connector. The connectors are all labelled, and made such that it is impossible to invert connections. It's really foolproof. The ony complaints we get, are regarding the height. The unit extends about 56mm up from the driver, and the cables come straight out of it, so you need a few more cms of clearence. This means you need to check if your control box is deep enough to mount this option. And another small point is that the cross section of the cables can be a maximum of 0.25mm2 (24AWG).

Component features:

• Quick Connector for the CN1 50 pin interface on Delta A3-L and Delta A3-L servo drivers
• Accessory for the Delta A3-L system
• Accessory for the Delta A3-M system
• Easy mounting with push in terminals

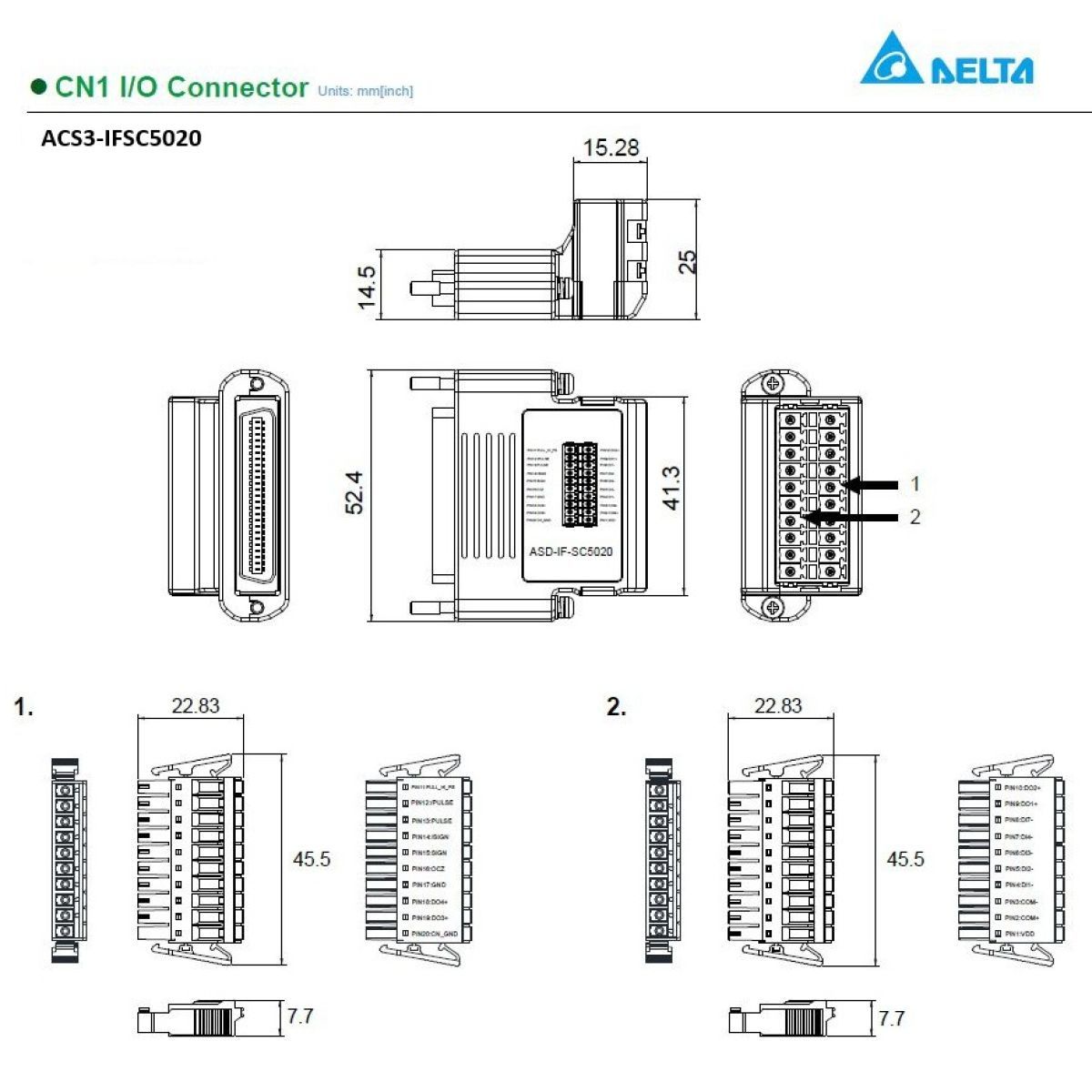

• Delta part number: ACS3-IFSC5020 (for A3-L and A3-M)
• NOTE: Check the height of your control box (this unit ads at least 56mm of extra height)
• NOTE: Check the AWG(mm2) of your cables, this works with 0.25mm2 and smaller
• NOTE: Only suitable for A3-L and A3-M step/dir models, does not fit A3-E A3-EP etc...
