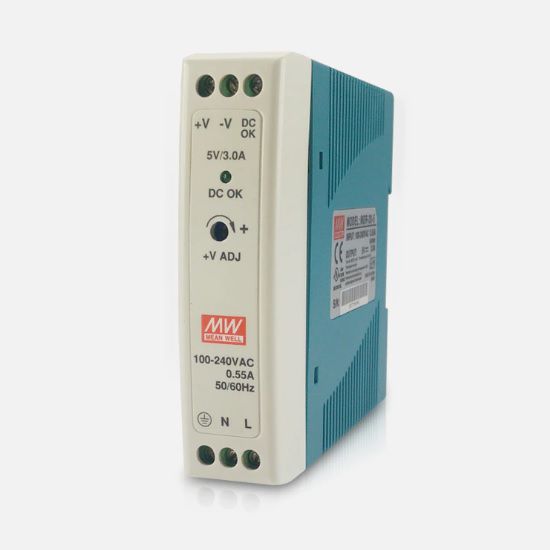

MDR-20-5 5VDC 20W DIN Rail PowerSupply

Article number 6191
MEAN WELL
In Stock In Stock
General conditions
Quantity 5 - > 10,00 % on the retail price of 21,20 19,08
Quantity 10 - > 20,00 % on the retail price of 21,20 16,96
21,20 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

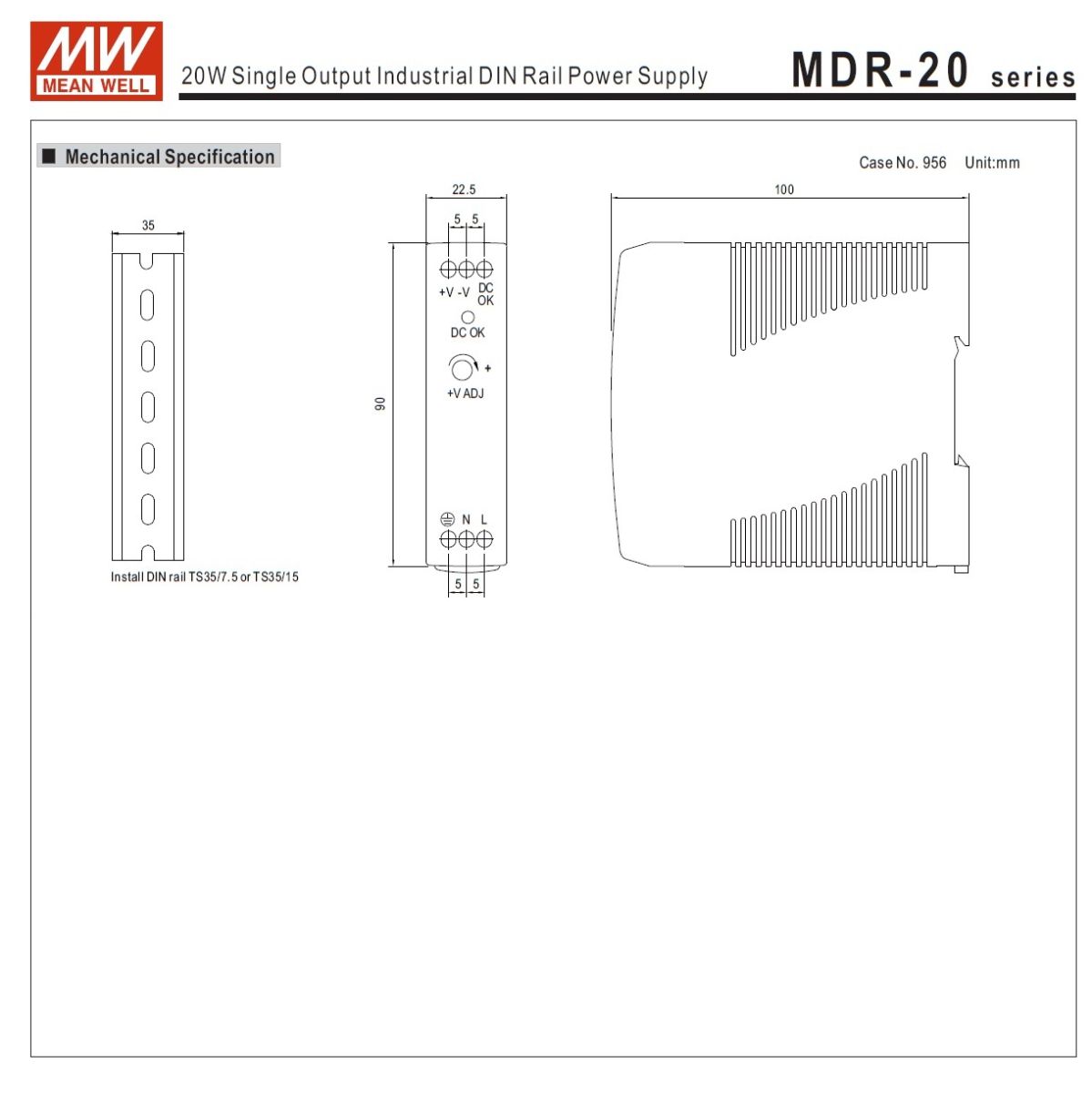

The MDR-20 is one economical and slim 20W DIN RAIL Powersupply series. It can be mounted on TS-35/7.5 or TS-35/15 DIN Rails. The body is only 22.5mm wide, which means space can be saved inside controller cabinets. The entire series adopts the full range single phase AC input from 85 VAC to 264VAC and conforms to ENC61000-3-2, the norm the European Union regulates for harmonic current.

MDR-20 is designed with a plastic housing that enhances the heat/power dissipation. With working efficiency up to 89%, the entire series can operate between -20 to 70 degrees celsius under free air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capactive applications. The complete protection functions and relevant certificates for industrial control (UL508, TUV EN60950-1, and etc) make NDR-75 a very competitive powersupply solution for industrial applications.

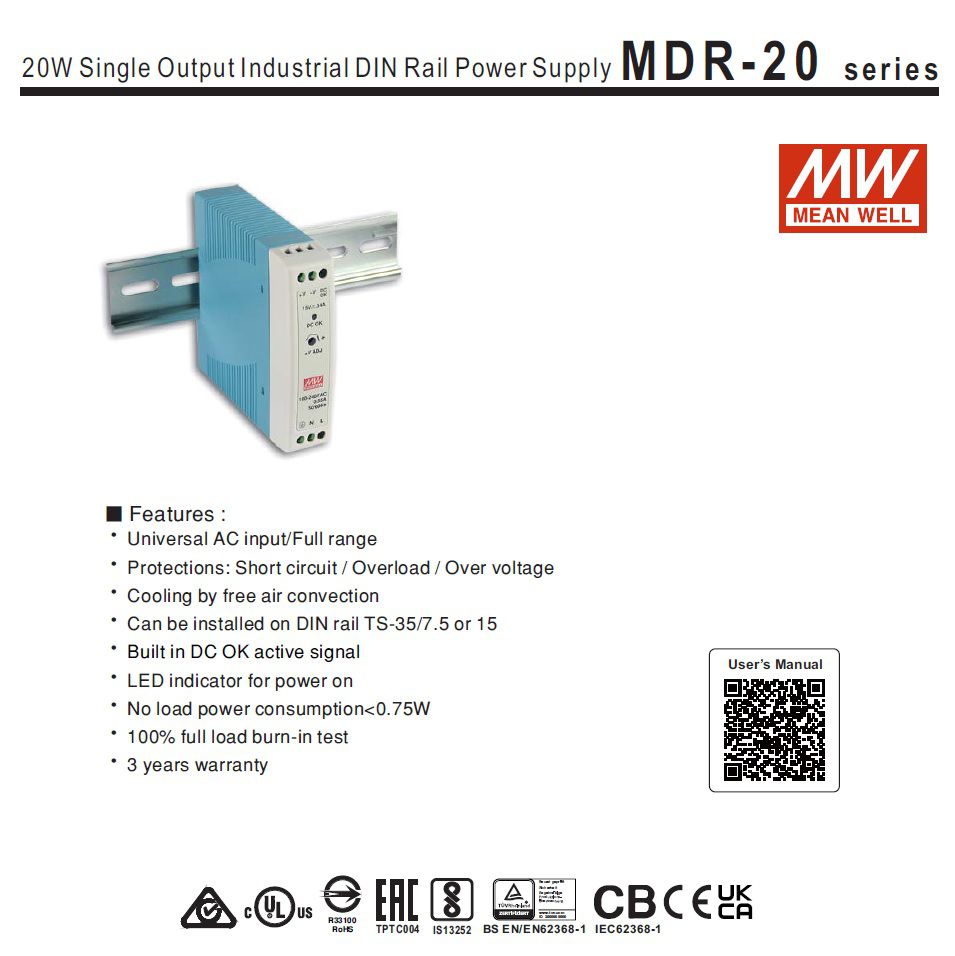

Component features:

  • 100-264VAC input, (thus can be used/sold worldwide)
  • Protections: Short Circuit / Overload / Over Voltage / Over temperature
  • Cooling by free air convection
  • Suitable for mounting on DIN Rails TS-35/7.5 of TS-35/15
  • Built-in DC-OK signal
  • No load power consumption < 0.75 W
  • UL508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) Industrial immunity level
  • 100% Full burn in test
  • 3 year warranty

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

6191-1_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_STEP214.stp 6191-1 MDR-20-5 5VDC 20W DIN Rail PowerSupply STEP214
6191-2_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_STEP242.stp 6191-2 MDR-20-5 5VDC 20W DIN Rail PowerSupply STEP242

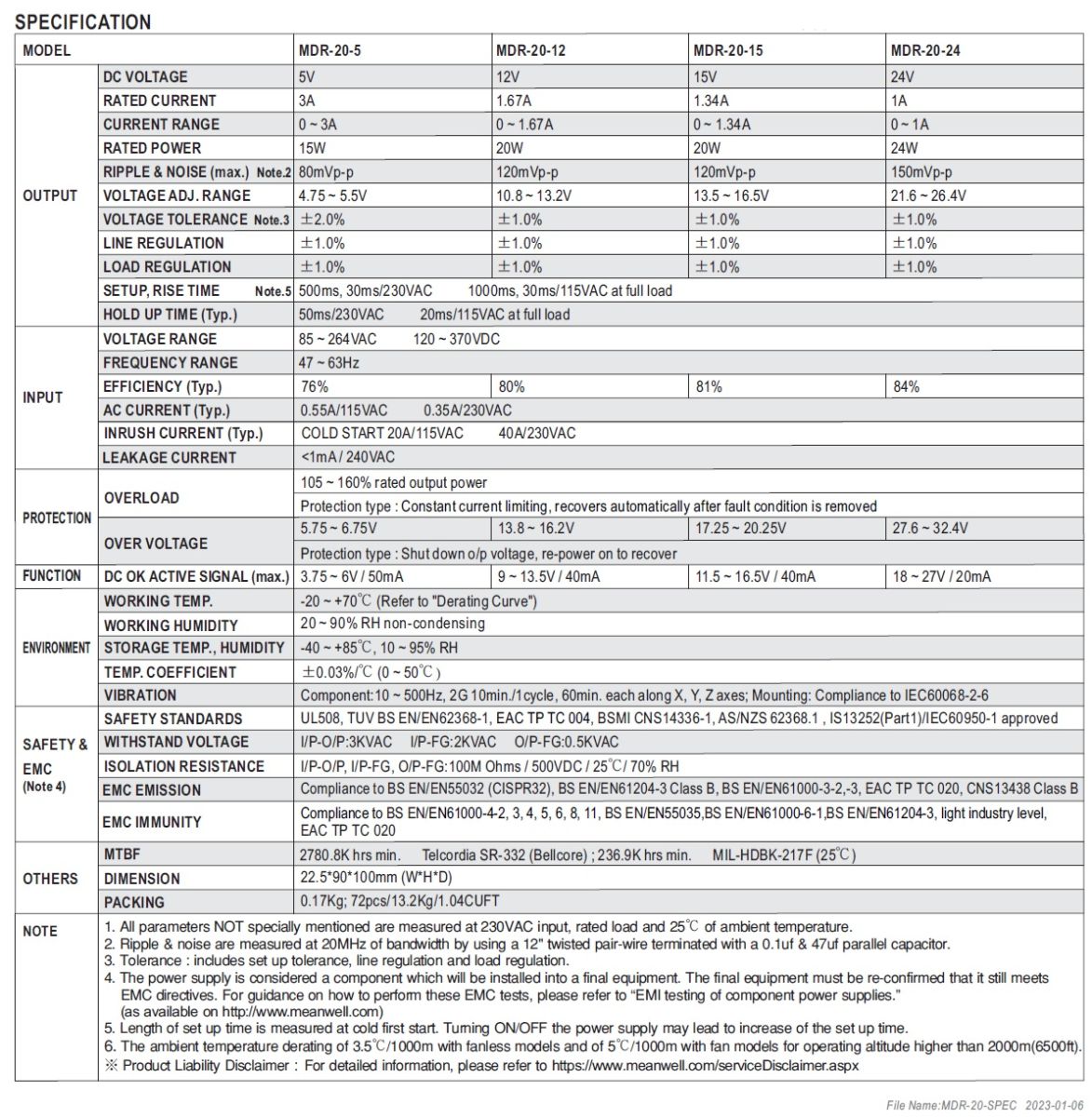

6191-3_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_Datasheet.pdf 6191-3 MDR-20-5 5VDC 20W DIN Rail PowerSupply Datasheet
6191-4_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_Installation_Manual.pdf 6191-4 MDR-20-5 5VDC 20W DIN Rail PowerSupply Installation Manual
6191-5_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_CE_Declaration.pdf 6191-5 MDR-20-5 5VDC 20W DIN Rail PowerSupply CE Declaration
6191-6_MDR-20-5_5VDC_20W_DIN_Rail_PowerSupply_Test_Report.pdf 6191-6 MDR-20-5 5VDC 20W DIN Rail PowerSupply Test Report
