NEMA 34 Motor Bracket (MBA15-F) for FK15

Article number 3952
In Stock In Stock
General conditions
Amount 3 - > 5,00 % on the retail price of 45,99 43,69
Amount 5 - > 10,00 % on the retail price of 45,99 41,39
Amount 10 - > 15,00 % on the retail price of 45,99 39,09
Amount 20 - > 20,00 % on the retail price of 45,99 36,79
45,99 Excluding VAT Price per piece
Description
Attachments
Discount
Compatible Products

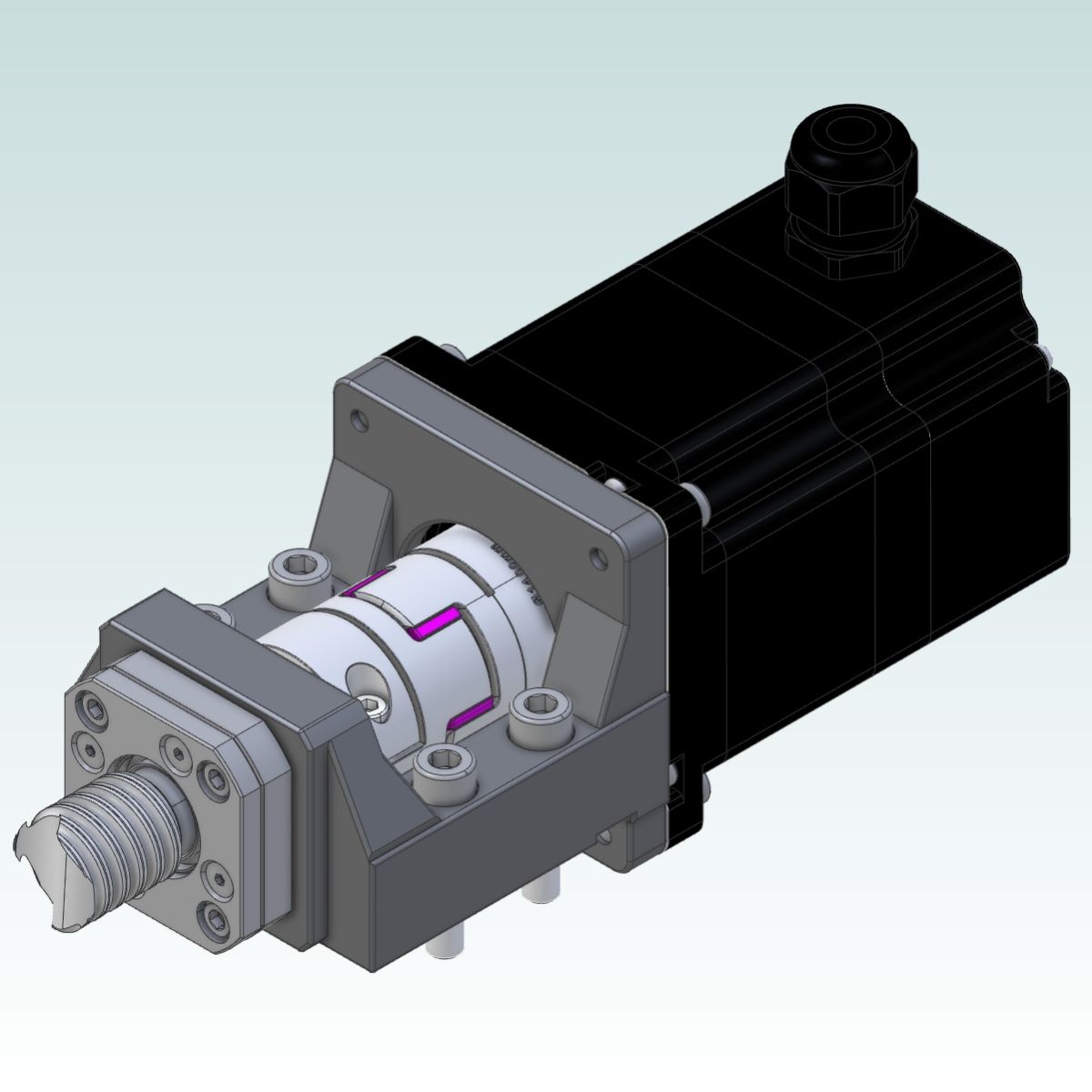

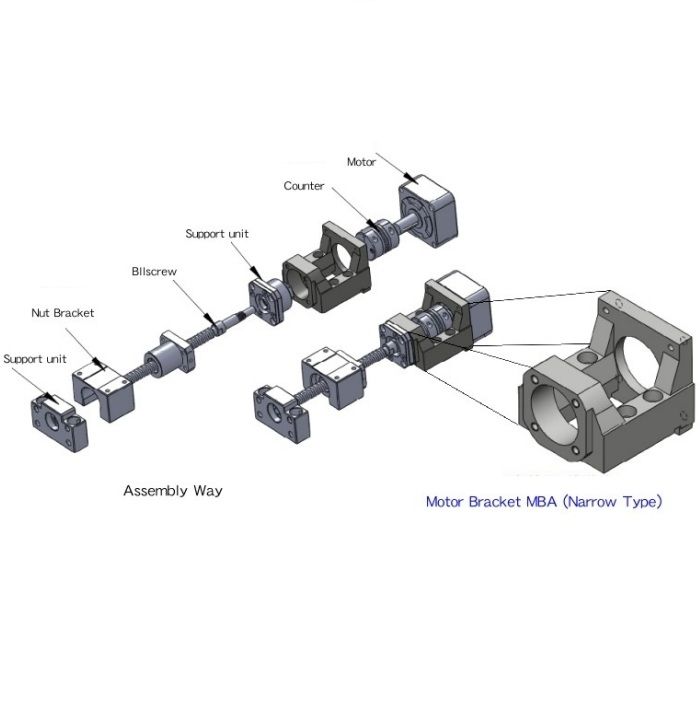

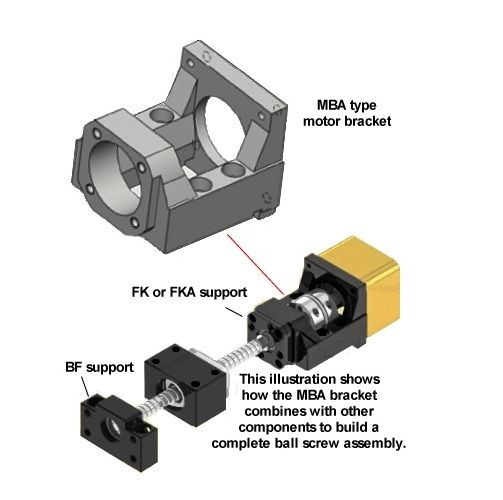

Motor Bracket made from steel. It has a NEMA 34 flange that is compatible with most NEMA 34 StepperMotors or servos. The bracket has datum surface on the bottom, that also has two 6mm dowel pin holes. These can be used to get the perfect alignment when placing back on a machine frame. Also the alignment between bearing and flange is within 0,02mm since the machining is done in one operation. When building a CNC machine or other special machine, this is an interesting part to have, since it saves a lot of time, that is normally spent on making a bracket. This bearingblock is compatible with the BF15 floating bearing block, (same height from datum surface). Most commonly the bearing block is used in combination with 25mm ballscrews.


Component features:

  • Compatible with NEMA 34 Flange size motors
  • Steel Housing
  • High Quality Product Made in TAIWAN
  • 4 x M6x20 DIN912 bolts included for mounting the steppermotor
  • 4 x M5x20 DIN 912 bolts included for mounting the FK15 fixed bearing block

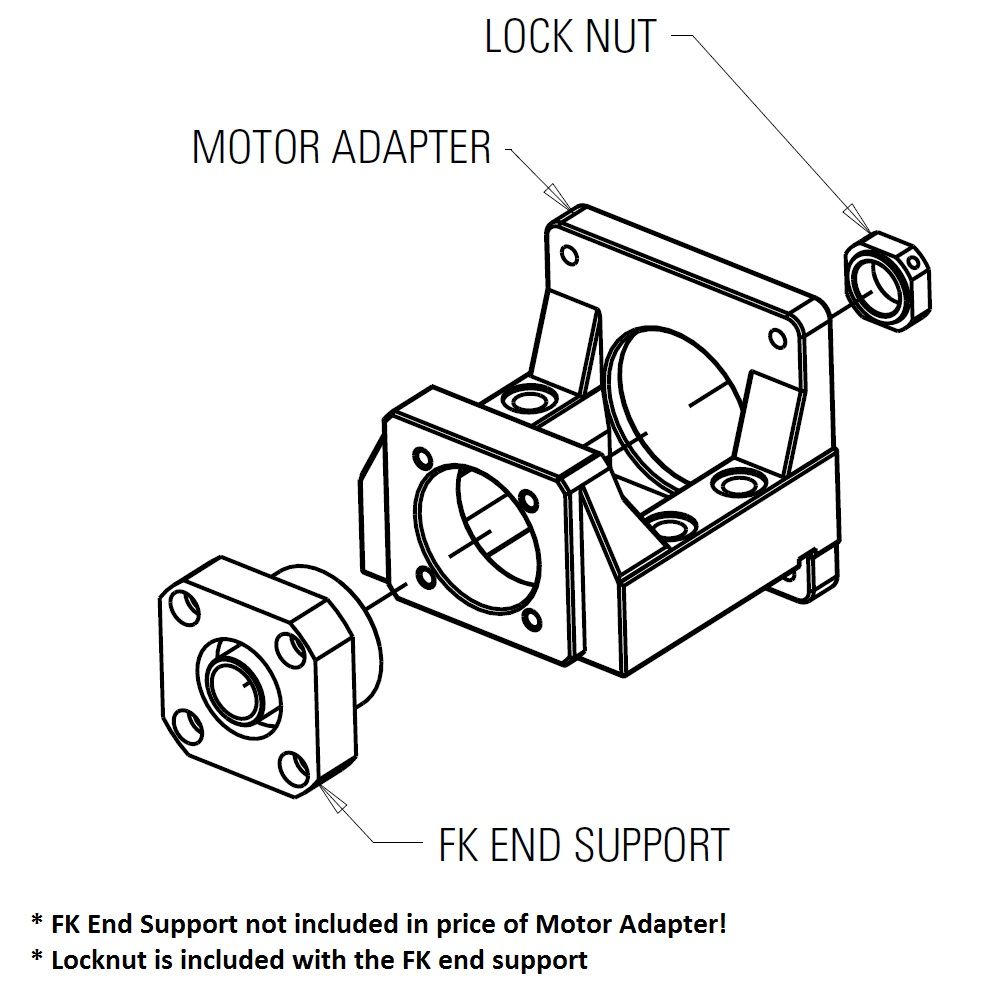

  • FK Fixed Bearing not included (don't forget to order it! FK15)

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

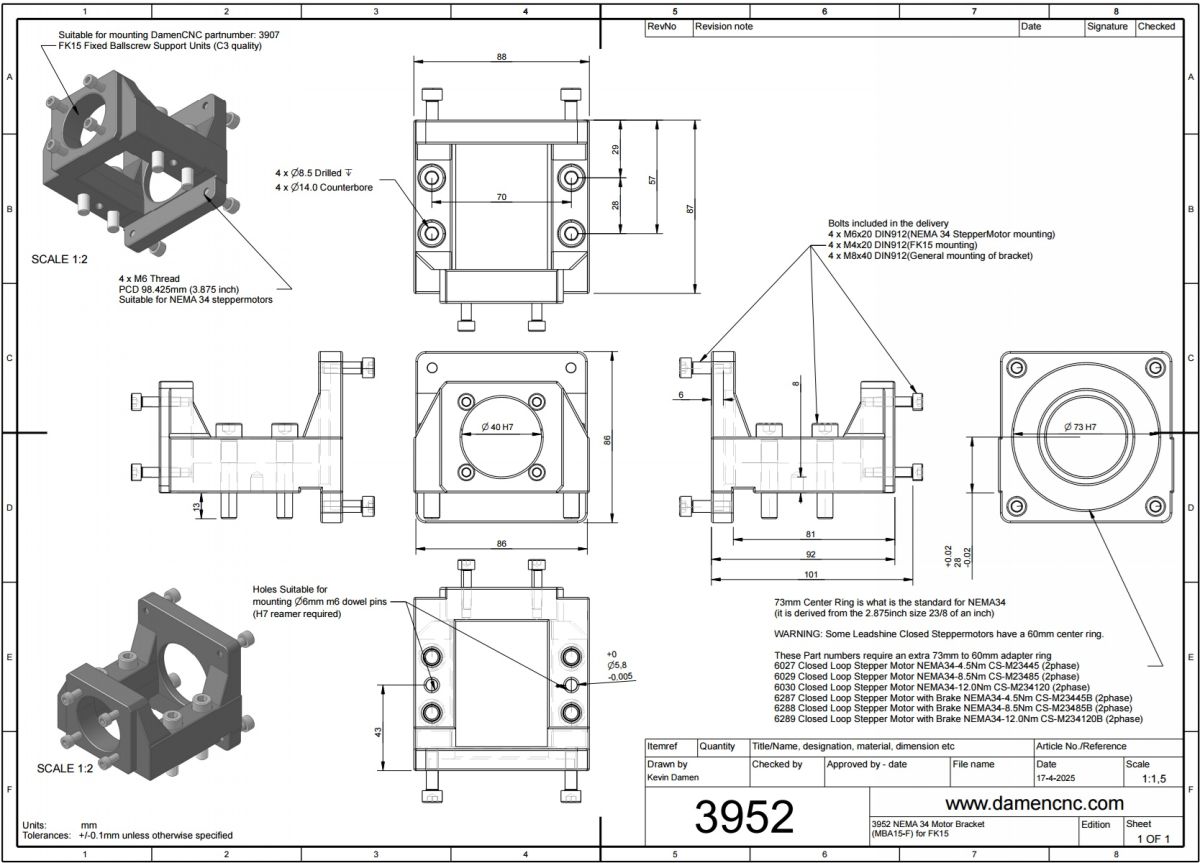

3952_NEMA_34_Motor_Bracket_(MBA-15F).stp 3952 NEMA 34 Motor Bracket (MBA-15F)
