Screw Terminal 2 pole RM 5.00mm

Article number 2002
In Stock In Stock
General conditions
Quantity 250 - > 50,00 % on the retail price of 1,50 0,75
1,50 Excluding VAT Price per piece
Description
Attachments
Discount

Screw terminal block, with rising cage clamp. This is the type we often use in our own products. It's a bit more expensive, because it uses a different mounting style for the feet. Instead of a turned pin, its a bent sheet metal pin. This pin has some flexibility, and therefore less prone to breaking. We have had issues with the cheaper turned pin styler terminals that the pins would break under torsional load. Mainly an issue, when the total length of the screw terminal was short.

Component features:

  • Number of poles: 2
  • Pole Pitch(RM): 5mm
  • Interlinkable with dovetails


Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

2002-1_Screw_Terminal_2_pole_RM_5.00mm_STEP214.stp 2002-1 Screw Terminal 2 pole RM 5.00mm STEP214
2002-2_Screw_Terminal_2_pole_RM_5.00mm_STEP242.stp 2002-2 Screw Terminal 2 pole RM 5.00mm STEP242

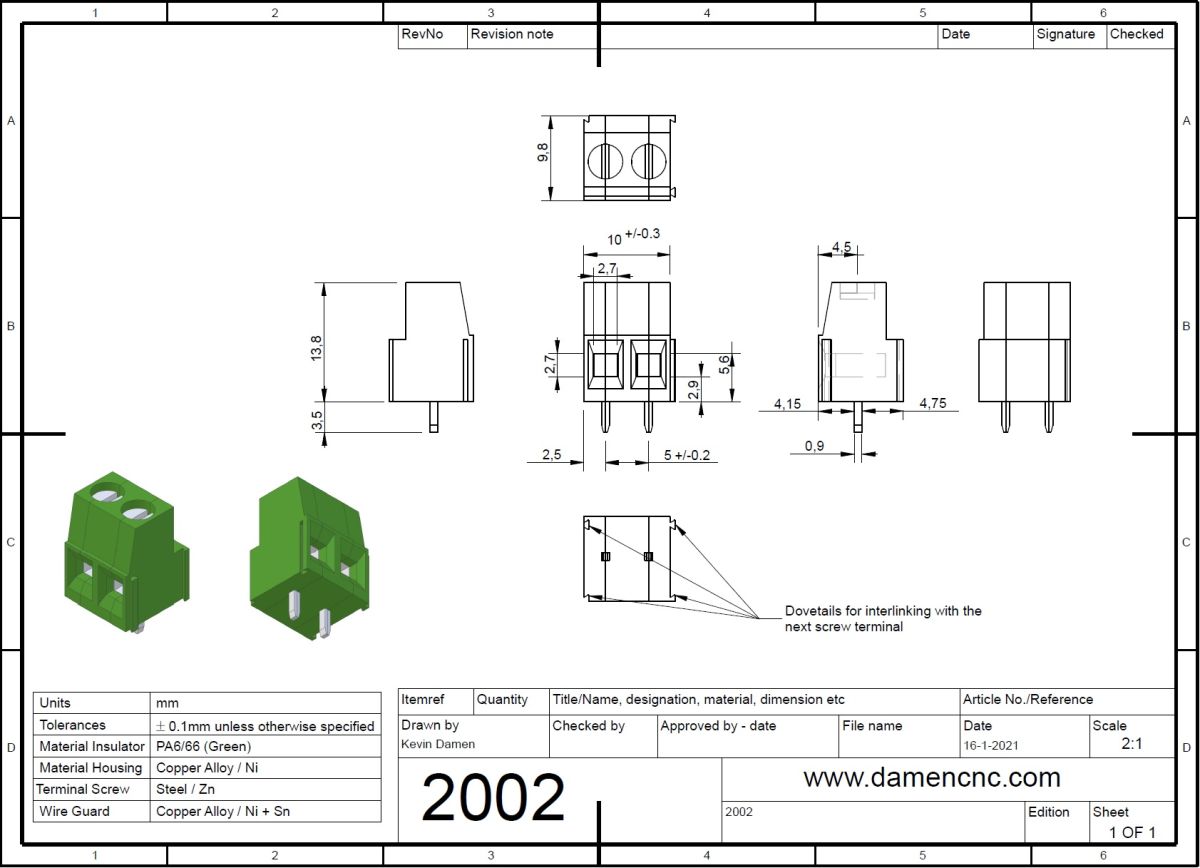

2002-3_Screw_Terminal_2_pole_RM5.00mm_2D_Dimensions.pdf 2002-3 Screw Terminal 2 pole RM5.00mm 2D Dimensions
