Screw Terminal 3 pole RM 5.00mm
Article number 2003
In Stock
| General conditions | ||
| Quantity 250 - > | 50,00 % on the retail price of €2,00 | €1,00 |
€2,00
Excluding VAT
Price per piece
Description
Attachments
Discount
Screw terminal block, with rising cage clamp. This is the type we often use in our own products. It's a bit more expensive, because it uses a different mounting style for the feet. Instead of a turned pin, its a bent sheet metal pin. This pin has some flexibility, and therefore less prone to breaking. We have had issues with the cheaper turned pin styler terminals that the pins would break under torsional load. Mainly an issue, when the total length of the screw terminal was short.
Component features:
- Number of poles: 3
- Pole Pitch(RM): 5mm
- Interlinkable with dovetails
Attachments
Here you can find all attachments that are linked to the product. Click on the icon to download.
 |
2003-1 Screw Terminal 3 pole RM5.00mm |
|
2003-2 Screw Terminal 3 pole RM5.00mm |
 |

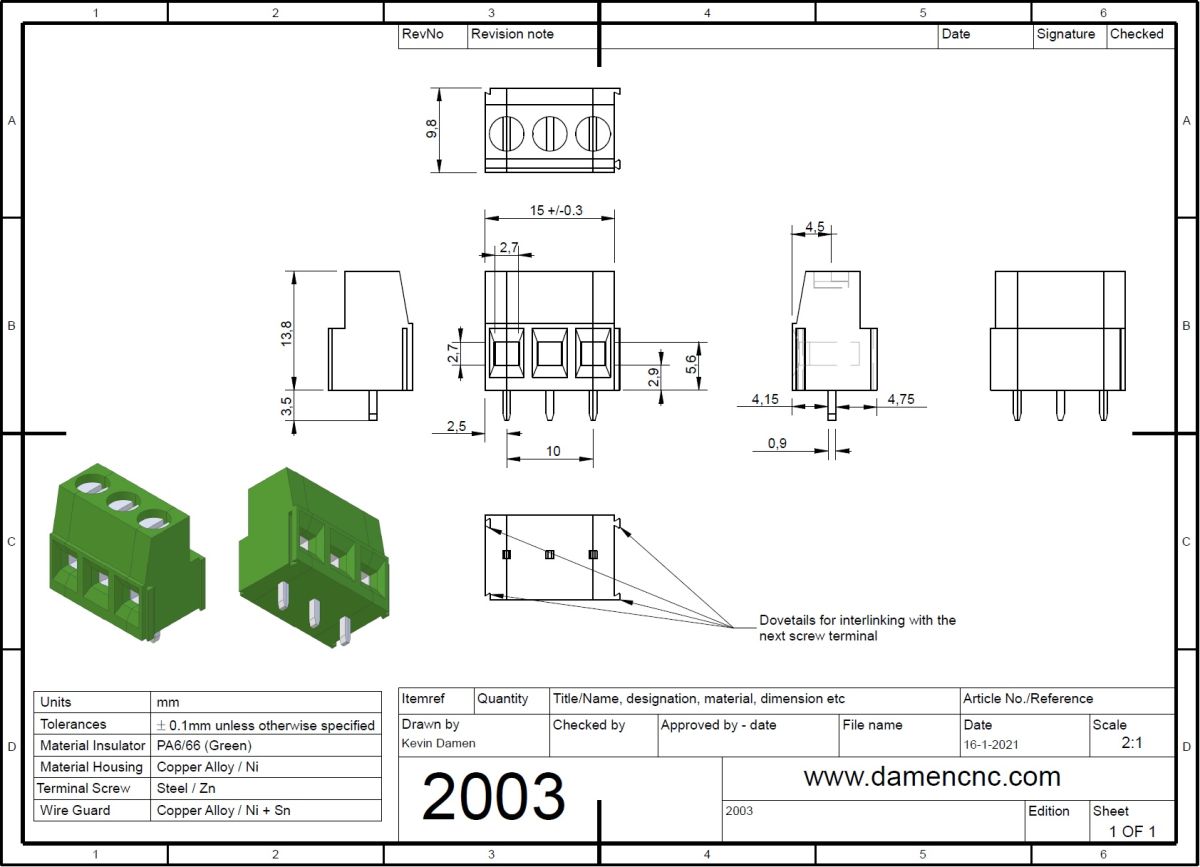

2003-3 Screw Terminal 3 pole RM5.00mm 2D Dimensions |
