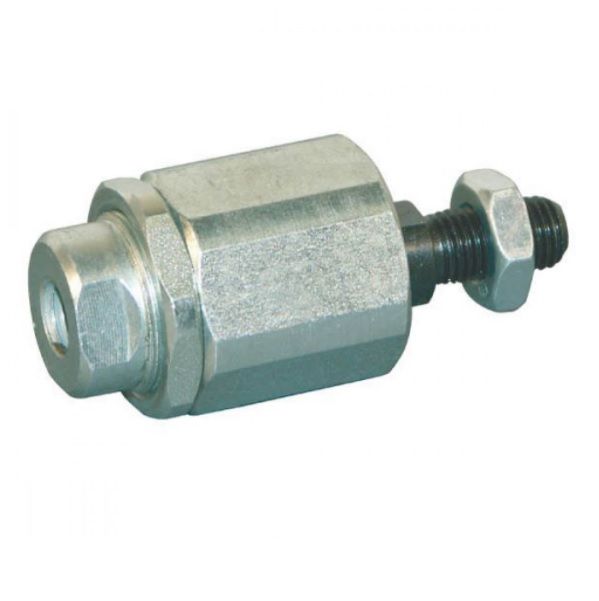

W0950322030 Self Aligning Rod Coupler - Model GA-K M10x1.25

Article number 5333
Metalwork
Limited stock Limited stock
General conditions
Quantity 3 - > 5,00 % on the retail price of 27,82 26,43
Quantity 5 - > 10,00 % on the retail price of 27,82 25,04
Quantity 10 - > 20,00 % on the retail price of 27,82 22,26
27,82 Excluding VAT Price per piece
Description
Attachments
Discount

This component is often used in combination with Pneumatic or Electronic cylinders, to compensate for misalignment in the design or production. It's always better to make a good design, with no misalignment. We only advise using this component as a last resort. This particular model is compatible with ISO1552 cilinders with a 32mm bore. Its also compatible with any other cylinder that uses M10x1.25 thread.

Component features:

  • Max axial misalignment: 4mm
  • Max angular misalignment: 5 degrees
  • Internal Thread: M10x1.25
  • External Thread: M10x1.25
  • Metalwork part number: W0950322030
  • Made in Italy

Attachments

Here you can find all attachments that are linked to the product. Click on the icon to download.

5333-1_w0950322030_Self_Aligning_Rod_Coupler_-_Model_GA-K_M10x1.25_STEP214.stp 5333-1 w0950322030 Self Aligning Rod Coupler - Model GA-K M10x1.25 STEP214
5333-2_w0950322030_Self_Aligning_Rod_Coupler_-_Model_GA-K_M10x1.25_STEP242.stp 5333-2 w0950322030 Self Aligning Rod Coupler - Model GA-K M10x1.25 STEP242
5333-3_w0950322030_Self_Aligning_Rod_Coupler_-_Model_GA-K_M10x1.25_2D_Dimensions.pdf 5333-3 w0950322030 Self Aligning Rod Coupler - Model GA-K M10x1.25 2D Dimensions
