Stepper Motor DCNC-NEMA23-2.5Nm (IP54)
Artikelnummer 751
DamenCNC
Goed op voorraad
Algemene condities | ||
Aantallen 5 - > | 5,00 % op de verkoopadviesprijs van €57,99 | €55,09 |
Aantallen 10 - > | 10,00 % op de verkoopadviesprijs van €57,99 | €52,19 |
Aantallen 50 - > | 20,00 % op de verkoopadviesprijs van €57,99 | €46,39 |
Aantallen 100 - > | 30,00 % op de verkoopadviesprijs van €57,99 | €40,59 |
€57,99
exclusief btw
Prijs per stuk
Omschrijving
Bijlagen
Korting
Compatibele Producten

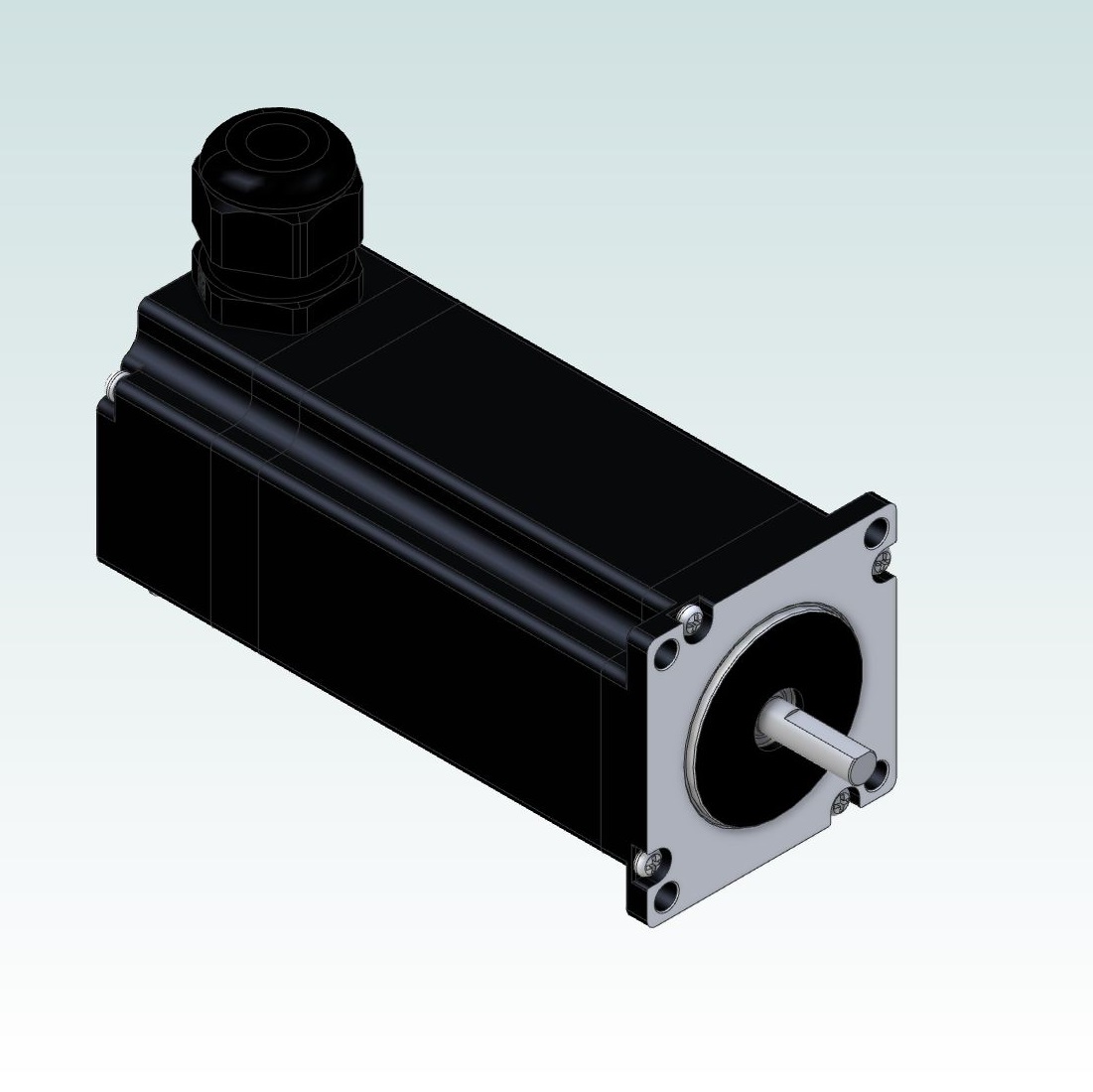

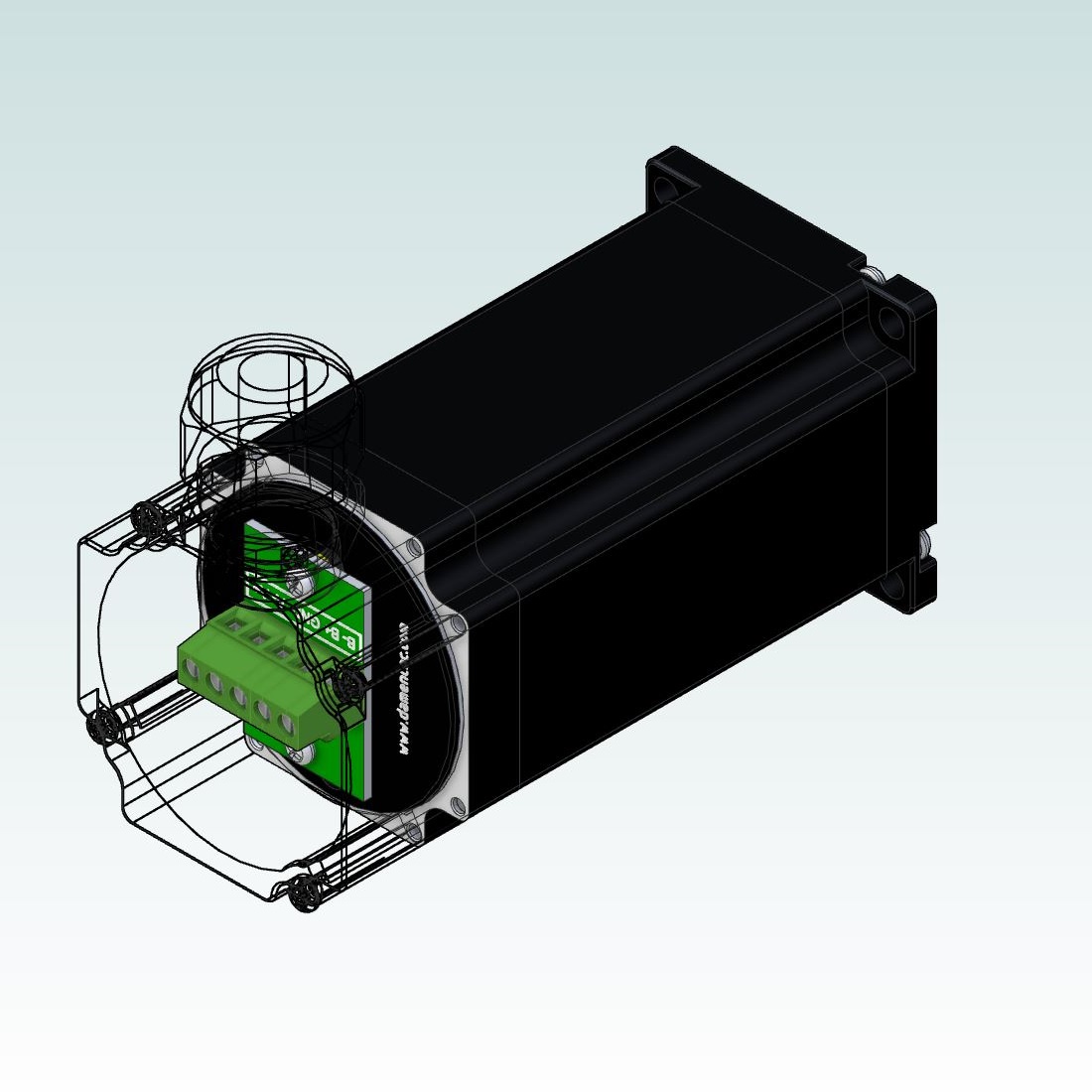

This type of steppermotor is produced especially for DamenCNC, according to our specifications. We did not like the normal steppers that were available on the market. These have leads coming out of the motor, requiring soldering, or other termination methods, which are time consuming and error prone. This motor has a screw terminal on the back of the motor. So its very easy to do the wiring. Also which wire is what is written on the PCB, so its clear for the mechanic, where A+ A- B+ B- is located. Which basicly means you dont need a datasheet to connect this steppermotor to a driver. The motor then also has a cover to prevent chips and dirt getting into the wiring/connections. Also a common problem we have seen on normal steppers, is that the wiring tends to break/fracture where it comes out of the steppermotor. On these motor, there is a strain relief in the form of a cable gland that prevents this. We sell these motor in high volume, so also the price point is lower or the same as the normale NEMA 23 steppermotors, which dont have all these extra features.
Component eigenschappen:
-
De motor speciaal geselecteerd om goed te werken met onze range van besturingen
-
Voldoet aan de IP54 eisen
-
Gemakkelijk aansluiten van draden, doormiddel van een printkroonsteen
-
Verkrijgbaar in 1NM, 2NM, 2.5NM, 4NM en 12NM
-
Trekontlasting voor de kabel
-
Lage zelf-inductie, minder EMF
Bijlagen
Hier staan alle bijlagen van dit artikel. Klik op het icoon om deze te downloaden.
751-1 Stepper Motor DCNC-NEMA23-2.5Nm (IP54) STEP214 | |
751-2 Stepper Motor DCNC-NEMA23-2.5Nm (IP54) STEP242 | |
751-3 Stepper Motor DCNC-NEMA23-2.5Nm (IP54) 2D Dimensions and Tech Specs |
